Setting the Calculation Target Range

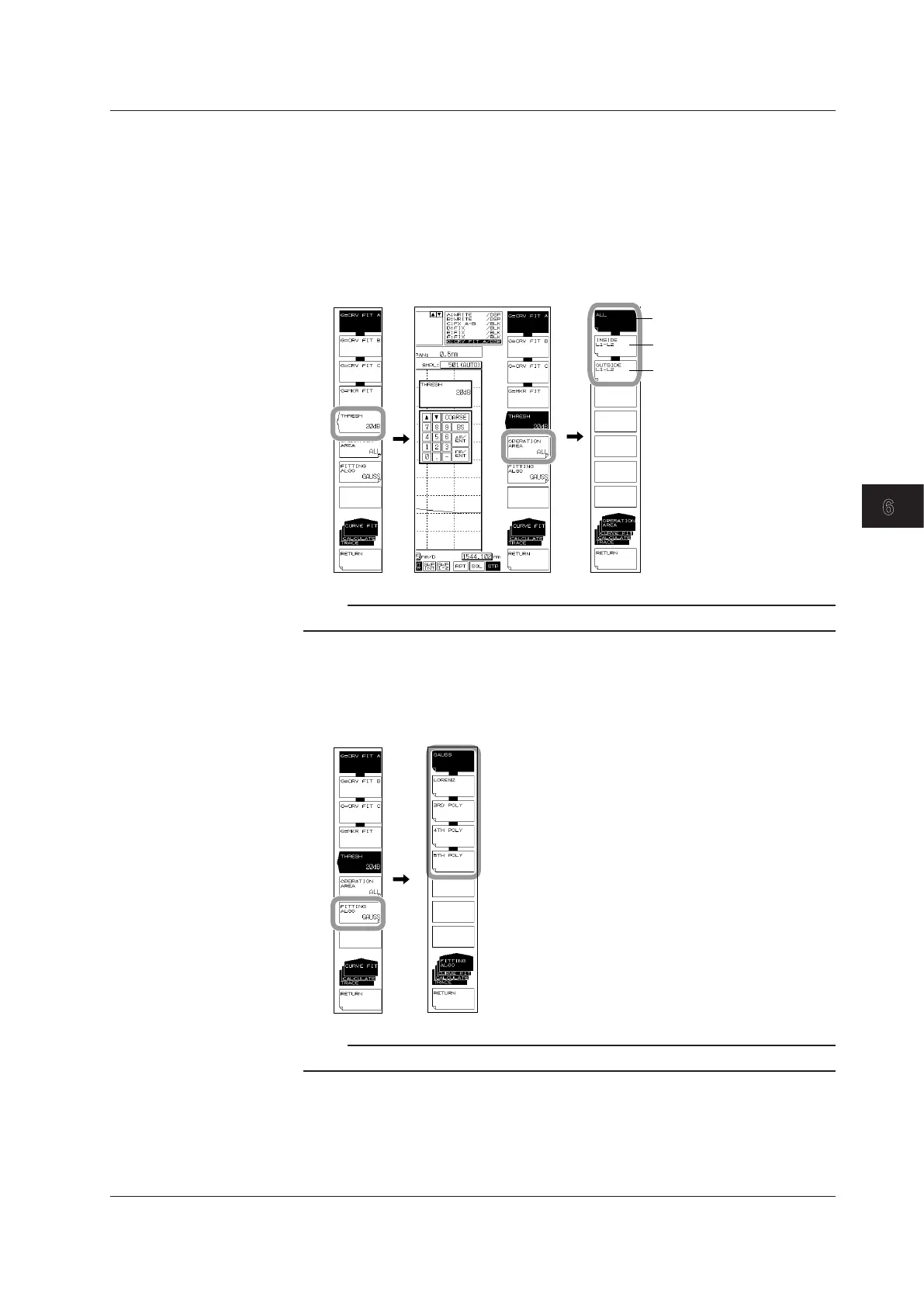

Press the THRESH soft key. The threshold setting screen is displayed.

Enter a threshold using the rotary knob, arrow keys, or numeric key pad.

10.

Press ENTER.

11.

Press the OPERATION AREA soft key. The calculation target range setting menu

is displayed.

12.

Press the soft key corresponding to the range to be set as the calculation target.

Entire range

Between L1 and L2

Outside L1 and L2

Note

For information about the calculation target range, see the explanation.

Selecting the Curve Fitting Algorithm

13.

Press the FITTING ALGO soft key. The algorithm setting menu is displayed.

14.

Press the soft key corresponding to the algorithm you wish to use.

Note

For information about the curve fitting algorithm, see the explanation.

6.7 Curve Fitting
