7-1
IM AQ6370D-01EN
Analysis
7
Chapter 7 Analysis

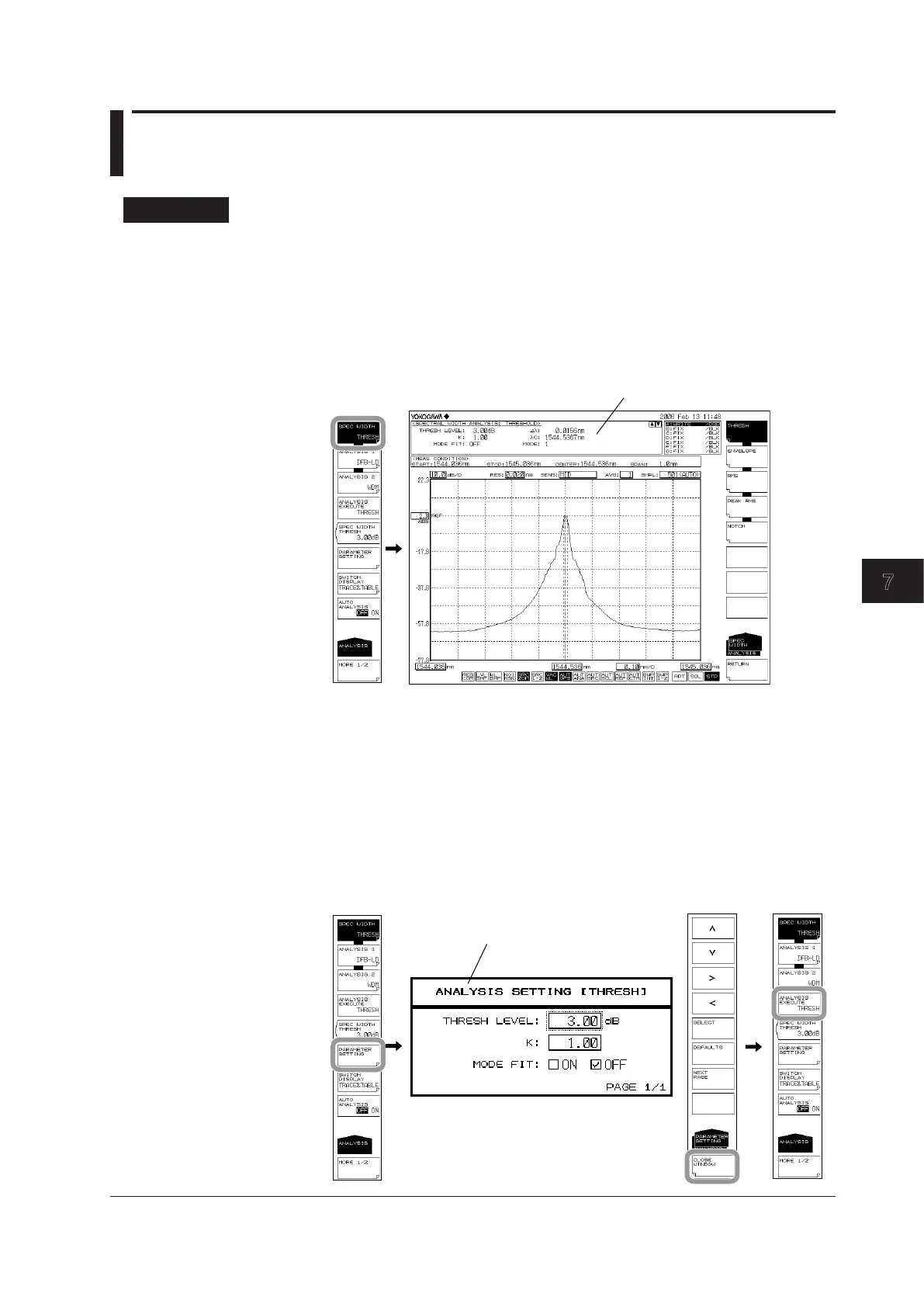

7.1 Spectrum Width Measurement
Procedure
Spectrum width can be measured from the measured waveform.
1.
Press ANALYSIS. The soft key menu for analyzing measured waveforms
appears.
2.
Press the SPEC WIDTH soft key. The analysis algorithm selection menu is
displayed.
3.
Press the THRESH, ENVELOPE, RMS, or PEAK RMS soft key. Analysis is
performed, and the results are displayed in the data area.
When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The
analysis parameter setting screen is displayed.
5.
Move the cursor with the arrow keys, and enter a setting value with the numeric
key pad.
6.
Press the CLOSE WINDOW soft key. The analysis parameter setting screen
closes, and the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in the data area.
Analysis parameter setting screen
To Next Page
