5.14 Specifying a Sweep Range
Procedure
Sweeping between Line Markers
You can sweep between wavelength line marker 1 and wavelength line marker 2.
1.
Set wavelength line marker 1 and wavelength line marker 2 at either end of the
range you want to sweep.
(For the display procedure, see section 6.8, “Displaying Markers.”)
2.
Press SWEEP. The soft key menu regarding sweep appears.
3.
Press the SWEEP MKR L1-L2 OFF/ON soft key, and select ON. When set to ON,
is displayed at the very bottom of the screen.
4.
Press the REPEAT or SINGLE soft key. Sweeping between line markers begins.
5.
To cancel, press the SWEEP MKR L1-L2 OFF/ON soft key, and select OFF.
Sweeping is performed over the entire screen.

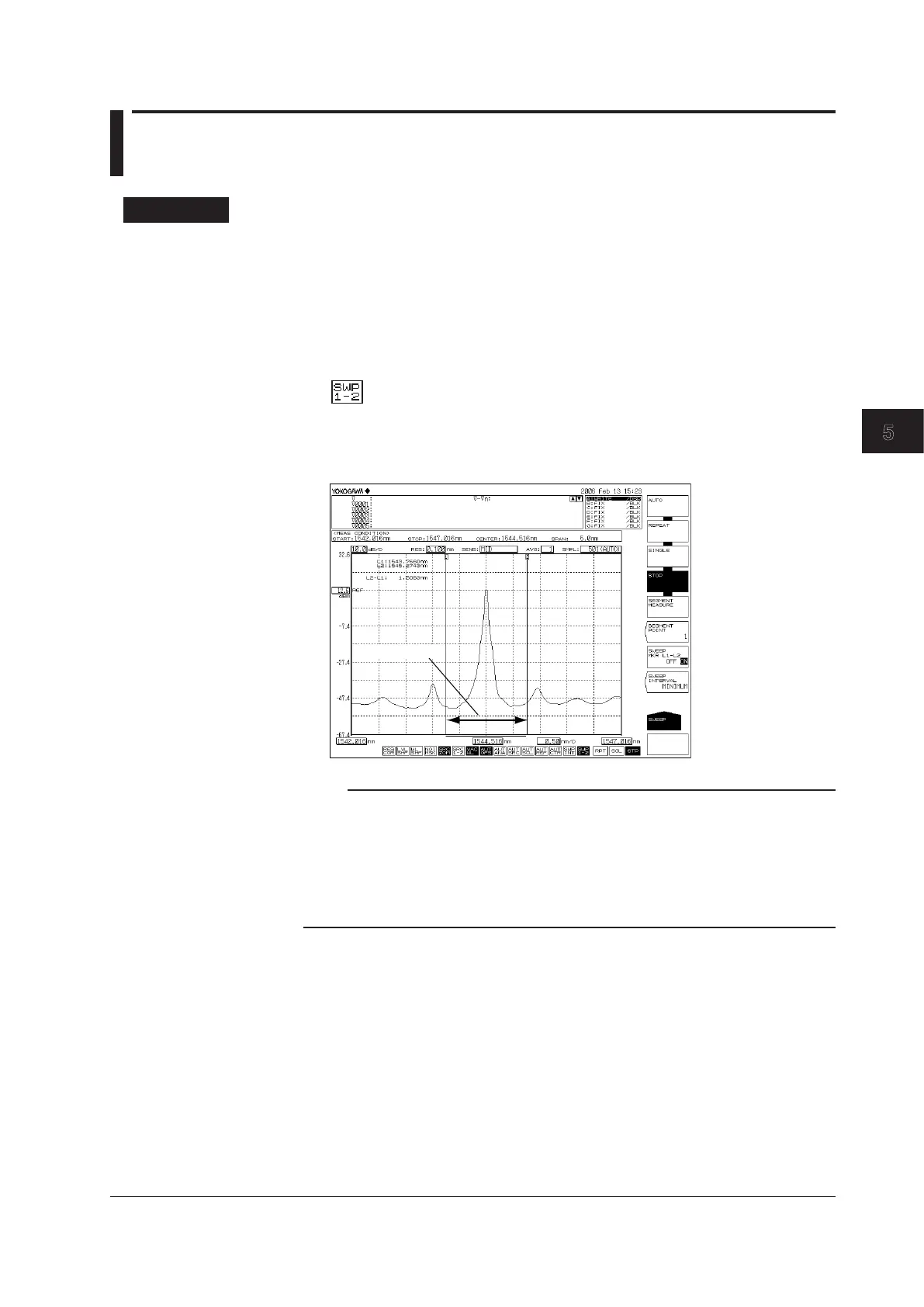

Sweep range
Note
• If both L1 and L2 are set, sweeping is executed between line markers 1 and 2.
• If just L1 is set, the sweep occurs over the span from line marker 1 to the right edge of the
screen.
• If just L2 is set, the sweep occurs over the span from the left edge of the screen to line
marker 2.
• If neither L1 nor L2 is set, analysis is performed from the set start wavelength to the stop
wavelength.
