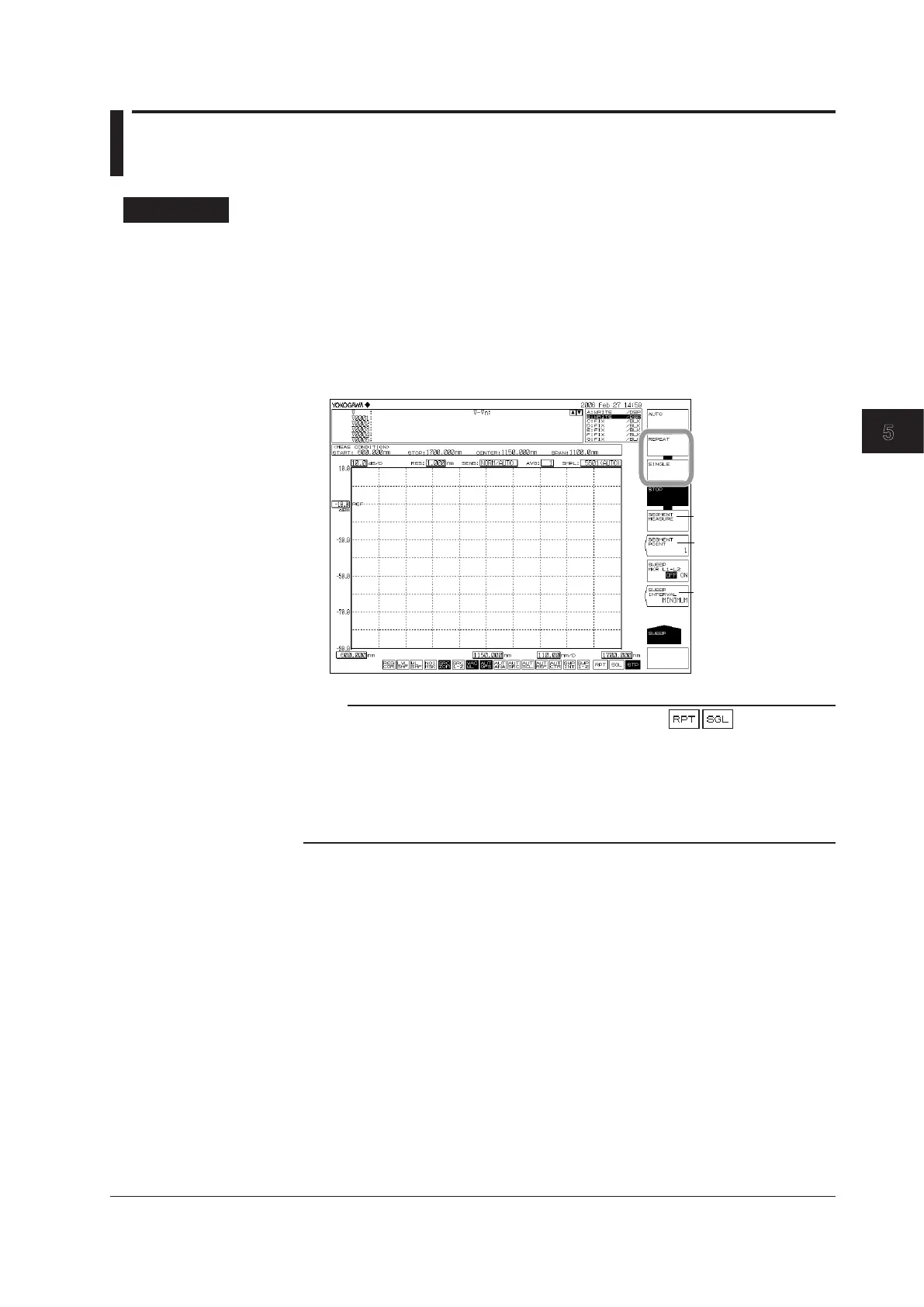

5.13 Measurement Start (Sweep)
Procedure
1.
Press SWEEP. The soft key menu regarding sweep appears.
2.
Press the SINGLE or REPEAT soft key. Sweeping begins.
3.
To set the sweep interval, press the SWEEP INTERVAL soft key. The sweep
interval setting screen is displayed.
4.
Enter a numerical value using the rotary knob, arrow keys, or numeric keypad,
then press ENTER.
5.
To stop the sweep, press the STOP soft key.
Segment measuring
Segment unit setting
Note
• Sweeping can also be performed by clicking the sweep icons located at the
bottom of the screen.
• During a sweep, the sweep bar is displayed below the X axis, indicating conditions during
the current sweep.
• During a sweep, a sweep icon indicating the sweep status is displayed in the lower left
corner of the screen. (Sweep progress from the start wavelength to the sweep wavelength
is indicated as a percentage.)
Dividing into Segments and Measuring
Setting the Unit of Segments
2.
Continuing on from step 1, press the SEGMENT POINT soft key. The segment
unit setting screen is displayed.
3.
Enter a numerical value using the rotary knob, arrow keys, or numeric keypad,
then press ENTER.
