5-48
IM AQ6370D-01EN

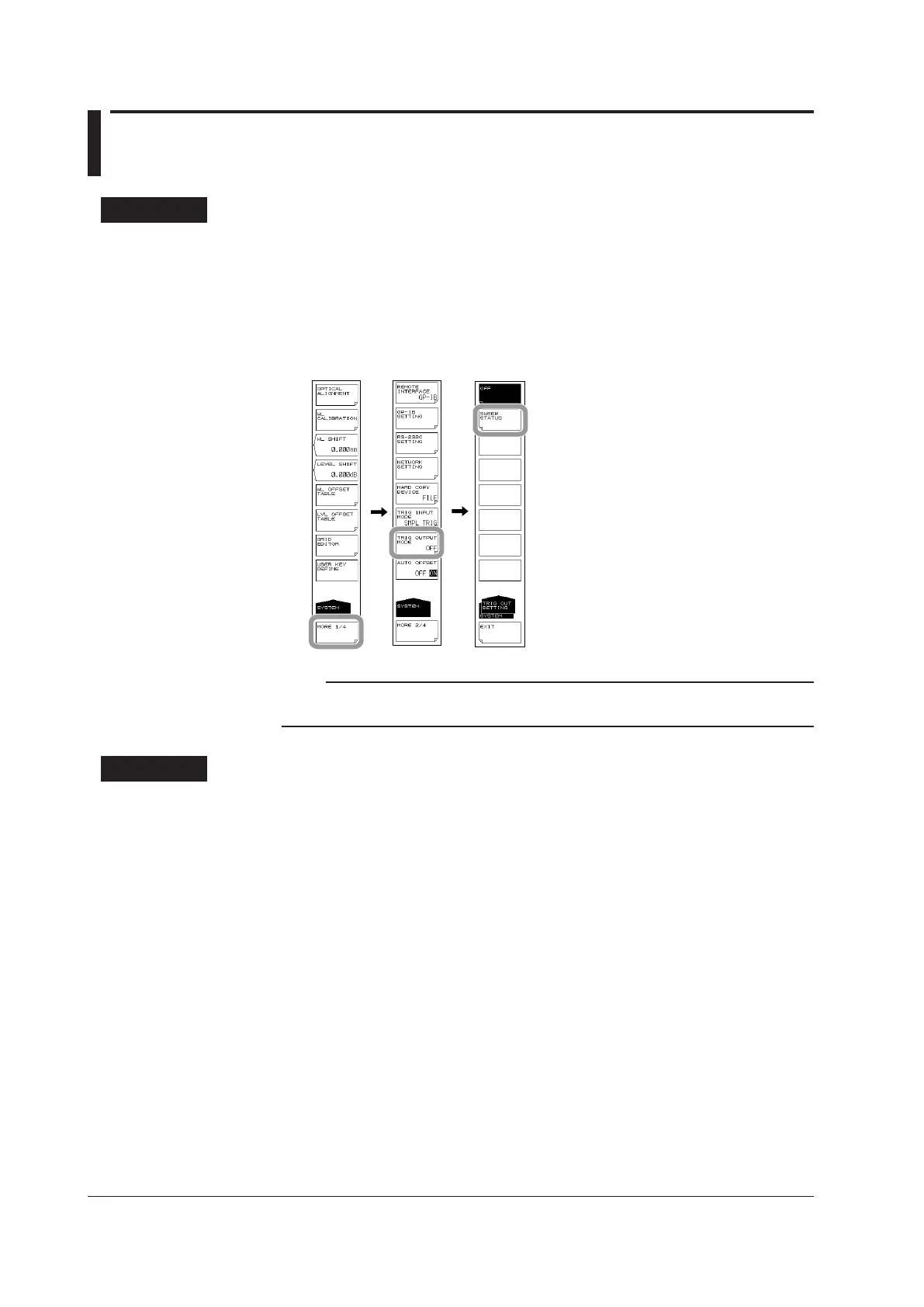

5.17 Trigger Output
Procedure
Setting the Trigger Output Mode
1.
Press SYSTEM. The soft key menu for the system settings appears.
2.
Press the MORE 1/4 soft key.
3.
Press the TRIG OUTPUT MODE soft key. The trigger output setting menu is
displayed.
4.
Press the SWEEP STATUS soft key.
Note
When pulse light measurement is specified, external trigger output cannot be performed. Turn
OFF PLS LIGHT MEASURE.
Explanation
You can synchronize sweeping from the trigger output terminal on the rear panel of the
instrument and output a positive logic signal. Signals are only output when sweeping.
Output signals are of TTL levels.
To Next Page
