7-12
IM AQ6370D-01EN
7.7 WDM Transmission Signal Analysis
Procedure
You can measure the center wavelength, level, and SNR of each channel from the
measured waveform of a WDM transmission signal.

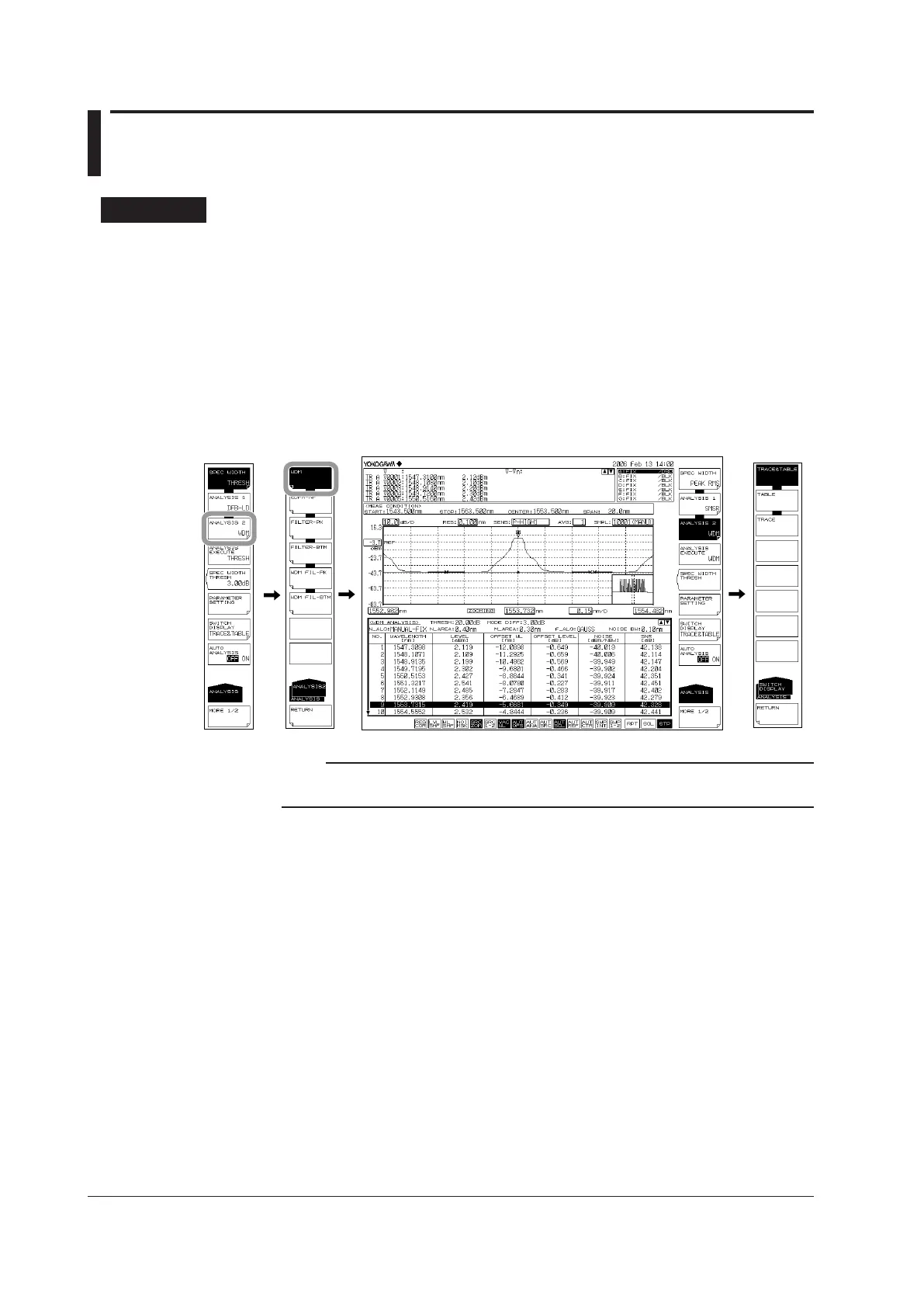

1.
Press ANALYSIS. The soft key menu for analyzing measured waveforms
appears.
2.
Press the ANALYSIS 2 soft key. The analysis function selection menu is
displayed.
3.
Press the WDM soft key. Analysis is performed, and the results are displayed in
a list. The analysis results display screen is switched with the SWITCH DISPLAY
soft key.
screen.
Note
When zooming a waveform, if you click in the list of analysis results, the waveform of the
selected channel is displayed in the center of the waveform screen.
