7.12 Go/No-Go Judgment (Template)
Procedure
This function compares preset reference data (template data) with a measured
waveform, and makes a Go/No-Go judgment.

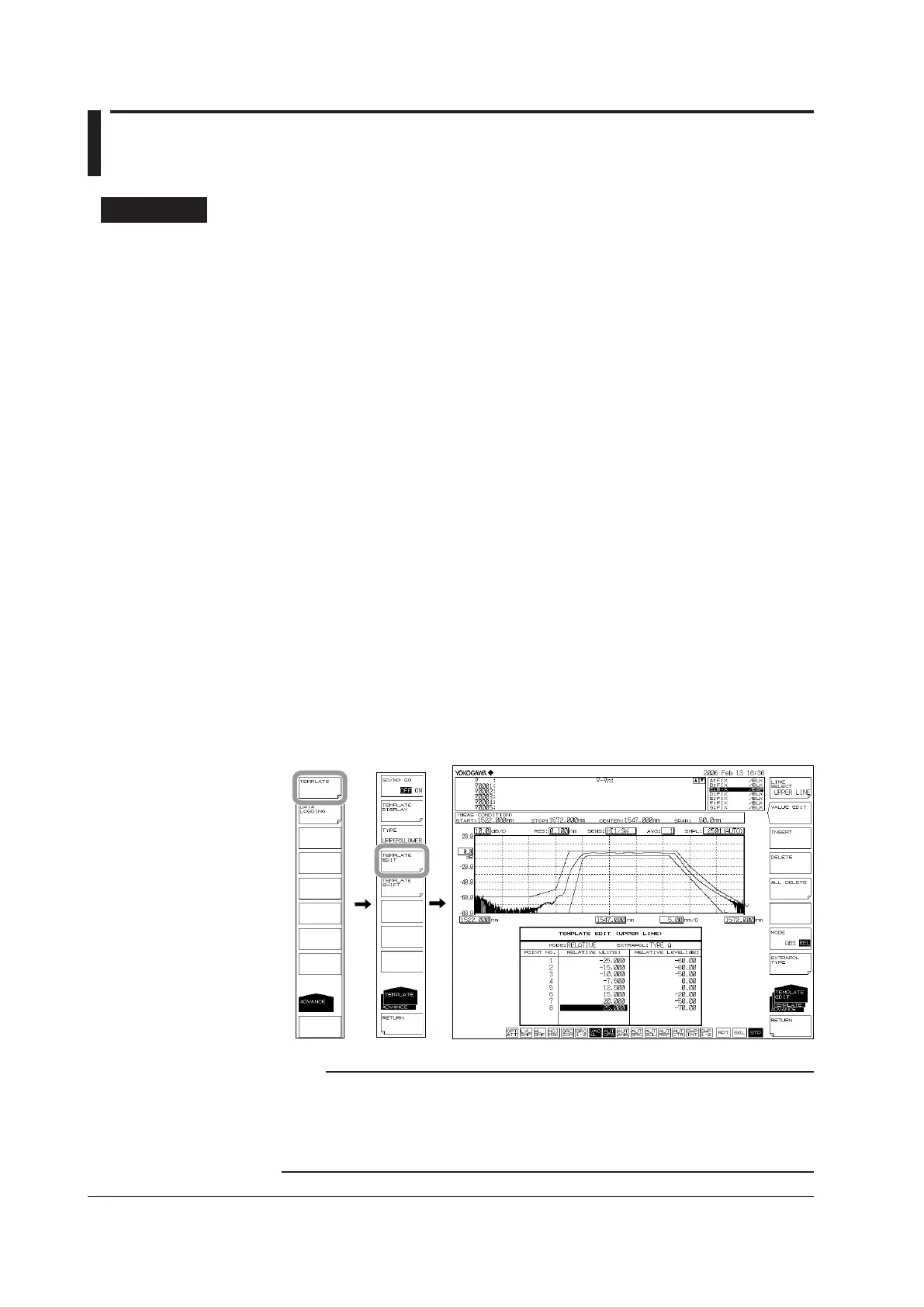

Creating Template Data on the Instrument
1.
Press ADVANCE followed by the TEMPLATE soft key.
2.
Press the TEMPLATE EDIT soft key. The template creation screen is displayed.
3.
Press the LINE SELECT soft key.
4.
Press the soft key corresponding to the type of template you wish to create.
UPPER LINE: Upper limit line
LOWER LINE: Lower limit line
TARGET LINE: Target value line
5.
Press the MODE ABS/REL soft key to select either ABS (absolute) or REL (relative)
as the type (template data types).
6.
Press the EXTRAPOL TYPE soft key to select the extrapolation method.
TYPE A: Extrapolation type A
TYPE B: Extrapolation type B
NONE: No extrapolation
7.
To edit template data, move the cursor to the location of the data to be edited
using the rotary knob or arrow keys, then press the VALUE EDIT soft key. Enter a
value using the numeric key pad, rotary knob, or arrow keys.
8.
To add template data, press the INSERT soft key. The data at the cursor location
is added. Edit the value using the procedure in step 7 and set it as new data.
9.
To delete template data, move the cursor to the location of the data to be deleted
using the rotary knob or arrow keys, then press the DELETE soft key. To delete all
template data points, press the ALL DELETE soft key.
Note
• For information about extrapolation methods, see the explanation.
• The same wavelength/level data prior to insertion are inserted as data in the points that
were inserted using the INSERT soft key.
• When the target line is turned OFF with the TEMPLATE DISPLAY soft key, if you edit the
template data at the target line, the target line TEMPLATE DISPLAY turns ON.
