6-43
IM AQ6370D-01EN
Waveform Display
6

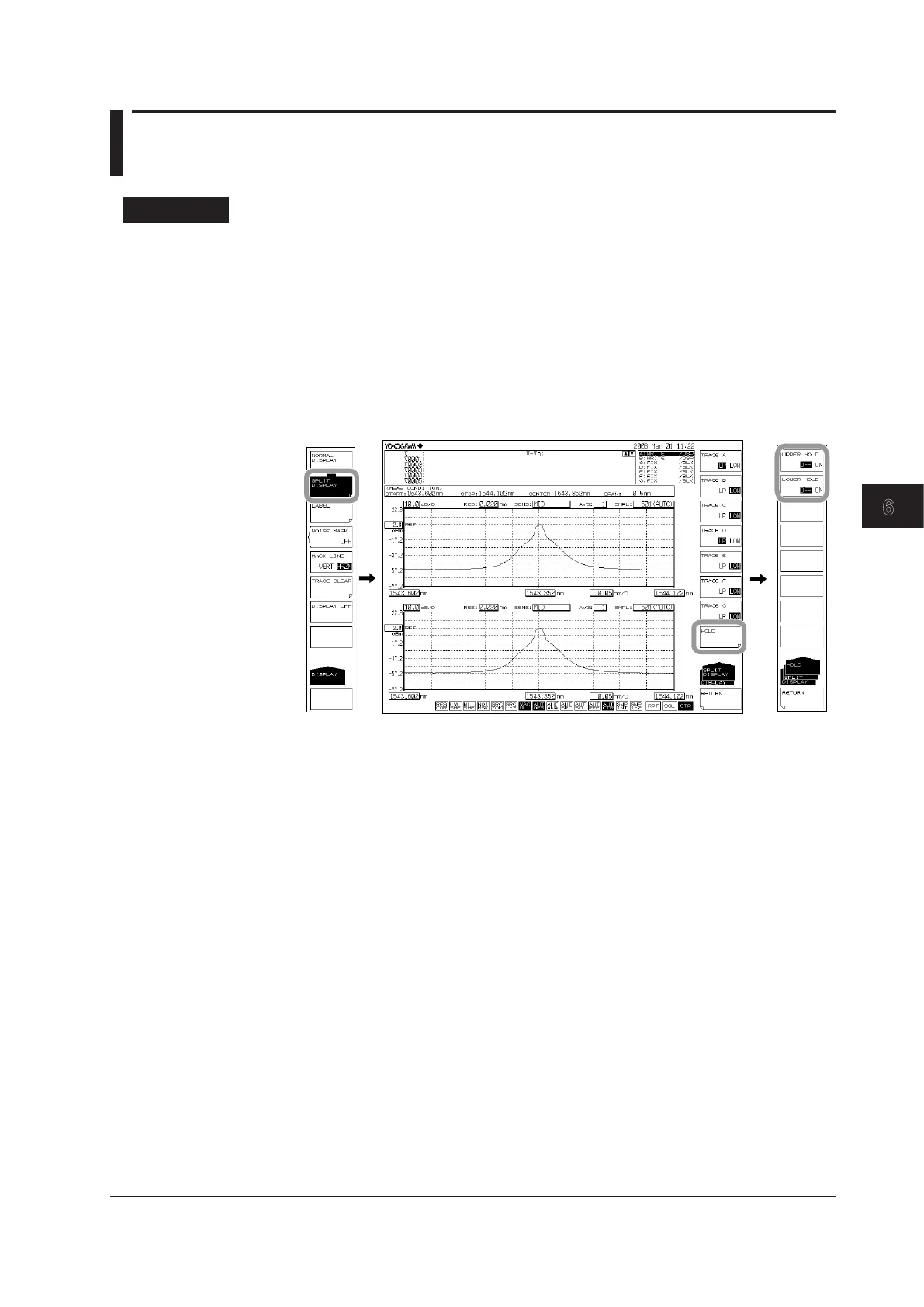

6.10 Displaying a Split Screen
Procedure
Splitting the Screen
1.
Press DISPLAY. The soft key menu for setting the screen display appears.
2.
Press the SPLIT DISPLAY soft key. The screen splits into upper and lower splits.
Displaying a Trace in Either the Upper or Lower Split
3.
Press the soft key corresponding to the desired trace. Each time you press the
soft key, the display screen toggles between UP and LOW. You can alternately
select the upper or lower display for Trace A. For Trace A, the default is Upper.
The default for Traces A, B, D, and E is Upper. The default for Trace C, F, and G is Lower.
Fixing a Trace
3.
Press the HOLD soft key.
Fixing/Releasing the Upper Trace
4.
Press the UPPER HOLD OFF/ON soft key. The trace assigned to the upper split
is fixed, along with the scale. To release the trace, press the UPPER HOLD OFF/
ON soft key again. The display scale and waveform are updated.
Fixing/Releasing the Lower Trace
4.
Press the LOWER HOLD OFF/ON soft key. The trace assigned to the lower split
is fixed, along with the scale. To release the trace, press the LOWER HOLD OFF/
ON soft key again. The display scale and waveform are updated.
Returning to Normal Display
1.
Press DISPLAY. The soft key menu for setting the screen display appears.
2.
Press the NORMAL DISPLAY soft key. The screen returns to normal display (1
screen).
To Next Page
