8-6
IM AQ6370D-01EN

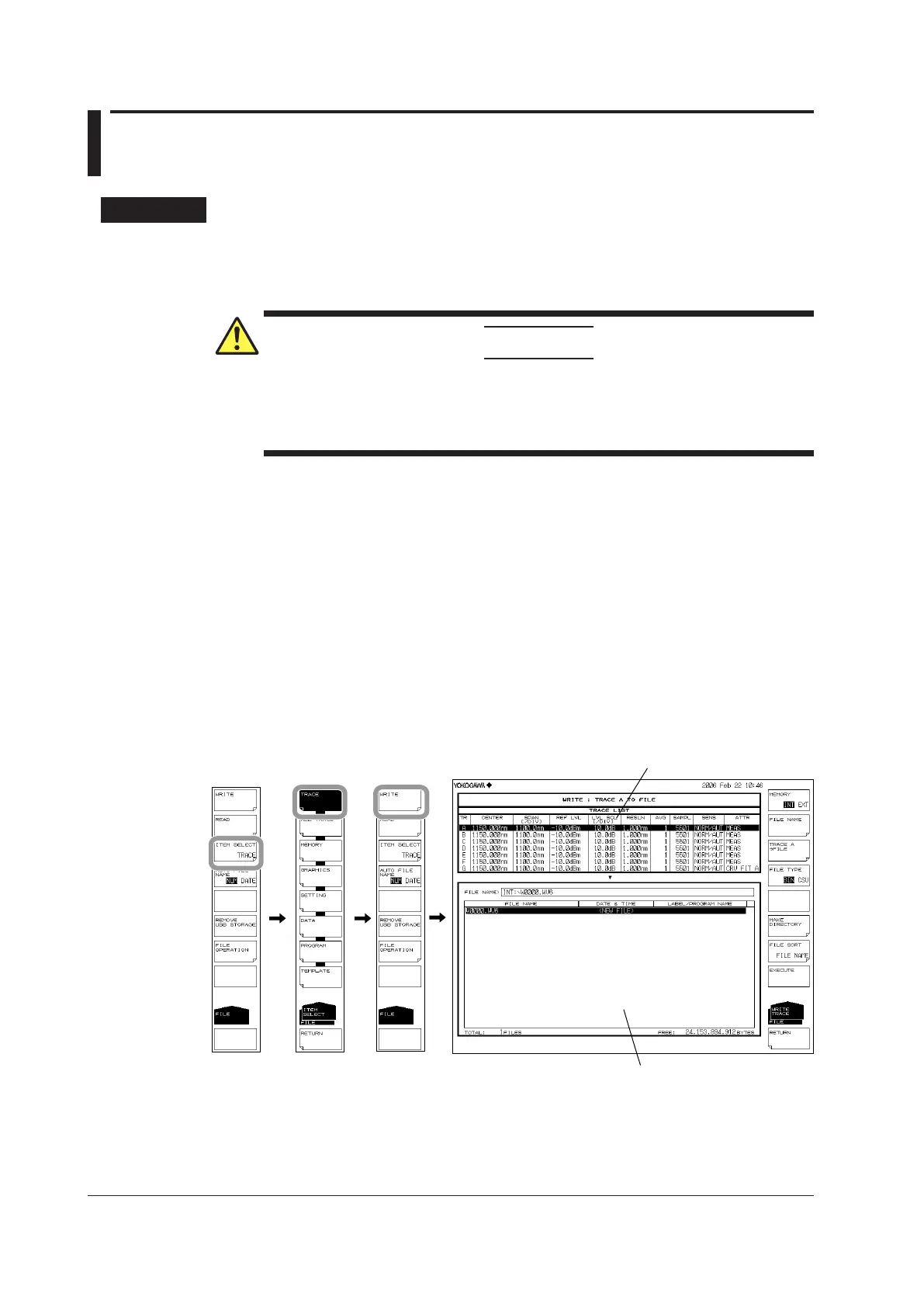

8.3 Saving/Loading Displayed Data
Procedure
Waveforms displayed by the instrument and waveforms temporarily saved to internal
memory can be saved to a USB storage medium or the internal memory, and loaded
from the USB storage medium.
CAUTION
Do not remove the USB storage medium or turn the power OFF while the USB
storage medium access indicator is blinking. This can damage the data on the
medium or the device itself. Also, always place a USB storage medium in the
removable state (following the procedure in section 8.1) before removing it.
Saving Trace Data
Selecting the Method of Automatically Setting the File Name
1.
Press FILE. The soft key menu for saving and loading data appears.
2.
Press the AUTO FILE NAME soft key. Select NUM (serial number) or DATE.
Setting the Type of the File to Be Saved to TRACE
3.
Press the ITEM SELECT soft key. The menu for selecting the type of files to be
saved is displayed.
4.
Press the TRACE soft key. TRACE is selected, and the screen returns to the
previous stage.
5.
Press the WRITE soft key. The TRACE LIST is displayed on screen.
To Next Page
