4.4 Screen Display
Procedure
1.

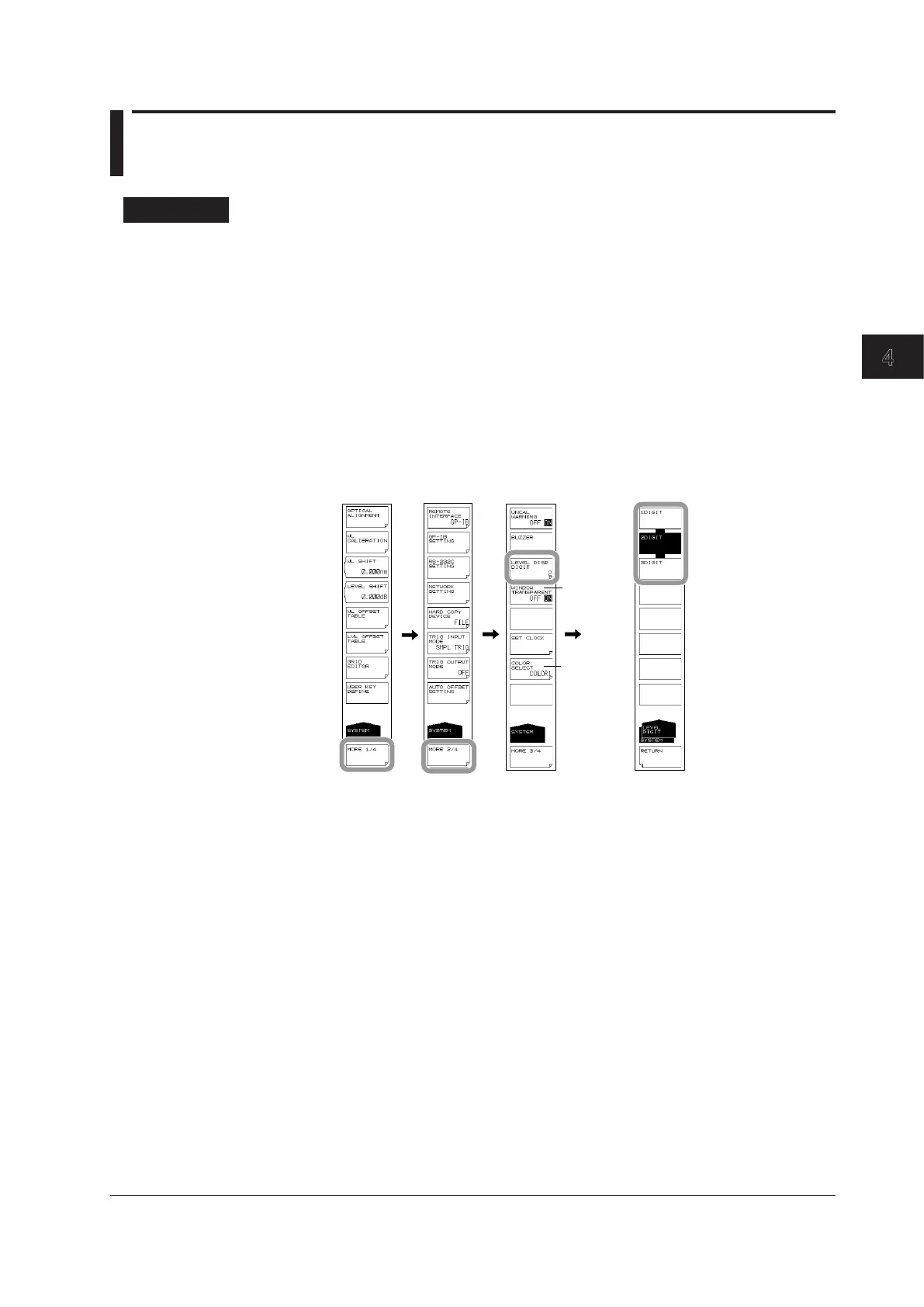

Press SYSTEM. The soft key menu is displayed.
2.
Press the MORE soft key repeatedly until the MORE 3/4 menu is displayed.
Setting the Number of Displayed Digits for Level Data
3.
Press the LEVEL DISP DIGIT soft key. The digit setting menu is displayed.
4.
Press the soft key corresponding to the desired number of digits.
1DIGIT Sets the number of level data display digits (below the decimal point)
to 1 digits.
2DIGIT Sets the number of level data display digits (below the decimal point)
to 2 digits.
3DIGIT Sets the number of level data display digits (below the decimal point)
to 3 digits.
Transparent
Display
Changing the
Display Colors
Transparent Display
3.
Continuing on from step 2, press the WINDOW TRANSPARENT OFF ON soft
key. Transparent display turns ON or OFF. When ON, the parameter input window
and overview display window are displayed transparently.
Changing the Display Colors
3.
Continuing on from step 2, press the COLOR SELECT soft key. The display color
setting menu is displayed.
4.
Press the soft key corresponding to the desired display color.
COLOR1
Sets the screen display color to “COLOR 1”.
COLOR2
Sets the screen display color to “COLOR 2”.
COLOR3
Sets the screen display color to “COLOR 3”.
COLOR4
Sets the screen display color to “COLOR 4”.
COLOR5
Sets the screen display color to “COLOR 5”.
B&W
Sets the screen display color to black-and-white.
