6-53
IM AQ6370D-01EN
Waveform Display
6

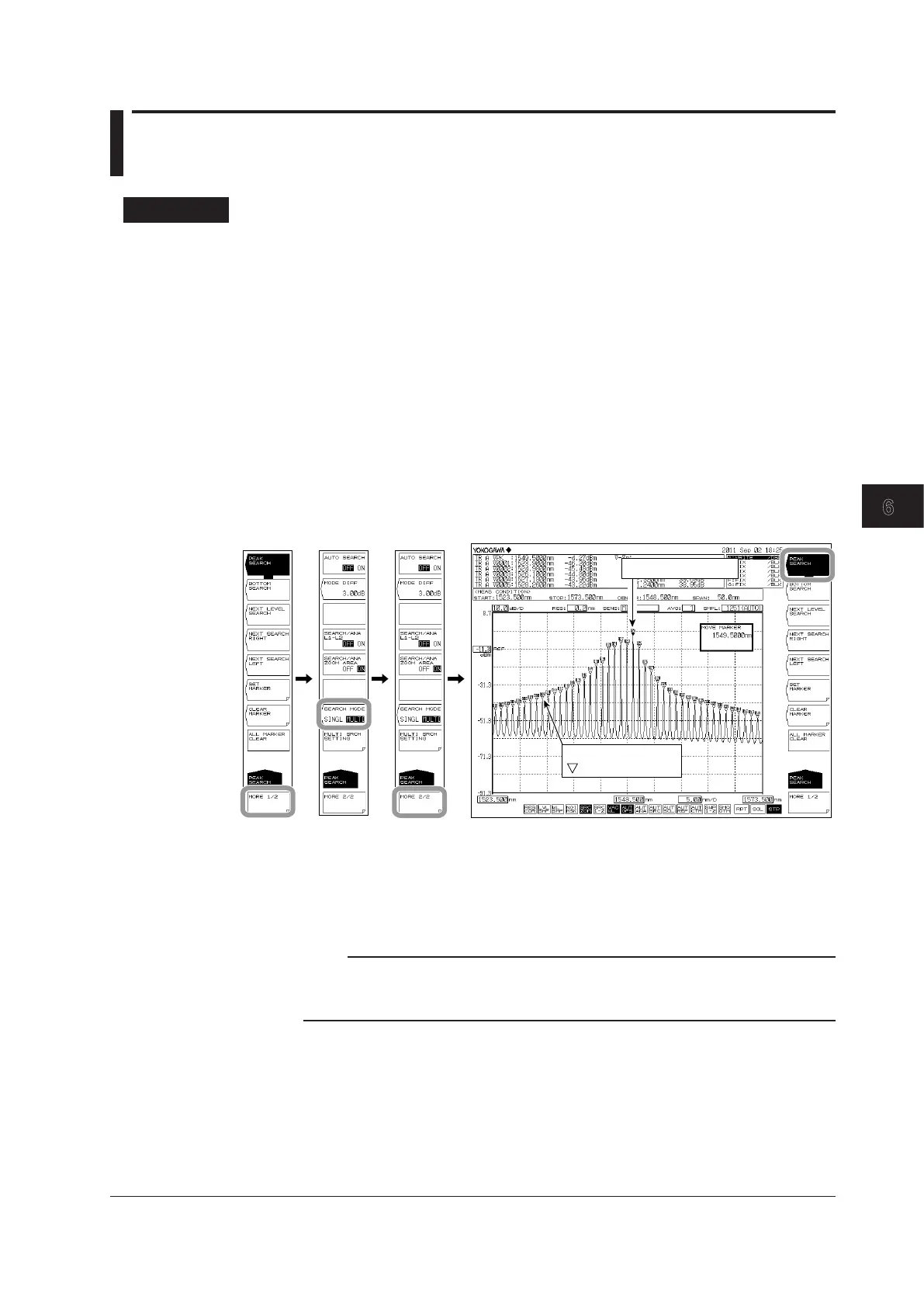

6.14 Multi Search
Procedure
Selecting the Multi Search
1.
Press PEAK SEARCH. The menu for detecting peak values is displayed.
2.
Press the MORE 1/2 soft key.
3.
Press the SEARCH MODE soft key and select MULTI.
In the default settings, SINGL (single search) is selected.
When you select MULTI, a peak search or a bottom search is executed. Which search is
executed depends on which soft key, PEAK SEARCH or BOTTOM SEARCH, has been
pressed on the MORE 1/2 menu.
4.
Press the MORE 2/2 soft key.
Finding Multiple Peak Wavelengths/Levels
5.
Press the PEAK SEARCH soft key. Fixed markers are set on the multiple peaks
of the waveform, and the marker values are displayed in the data area. The
moving marker is set on the highest peak.
â–¼: Moving marker
: Fixed marker
009
: Marker number
Finding Multiple Bottom Wavelengths/Levels
5.
Continuing from step 4, press the BOTTOM SEARCH soft key. Fixed markers are
set on the multiple bottoms of the waveform, and the marker values are displayed
in the data area. The moving marker is set on the lowest bottom.
Note
• If the active trace is not set to DISP, the moving marker cannot be used. Set the trace VIEW
@ DISP/BLANK soft key setting to DISP.
• Even if you press PEAK SEARCH the moving marker is displayed.
Finding the Next Peak/Bottom Level
The procedure is the same as the procedure shown for the single search in the previous
section.
Finding the Level Peak/Bottom to the Right of the Moving Marker
The procedure is the same as the procedure shown for the single search in the previous
section.
To Next Page
