1.4 LCD Screen
1
2
3
4
5
6
7 8 9 10
11 12
13
14 15
16
17
18
19
20
21
22
23

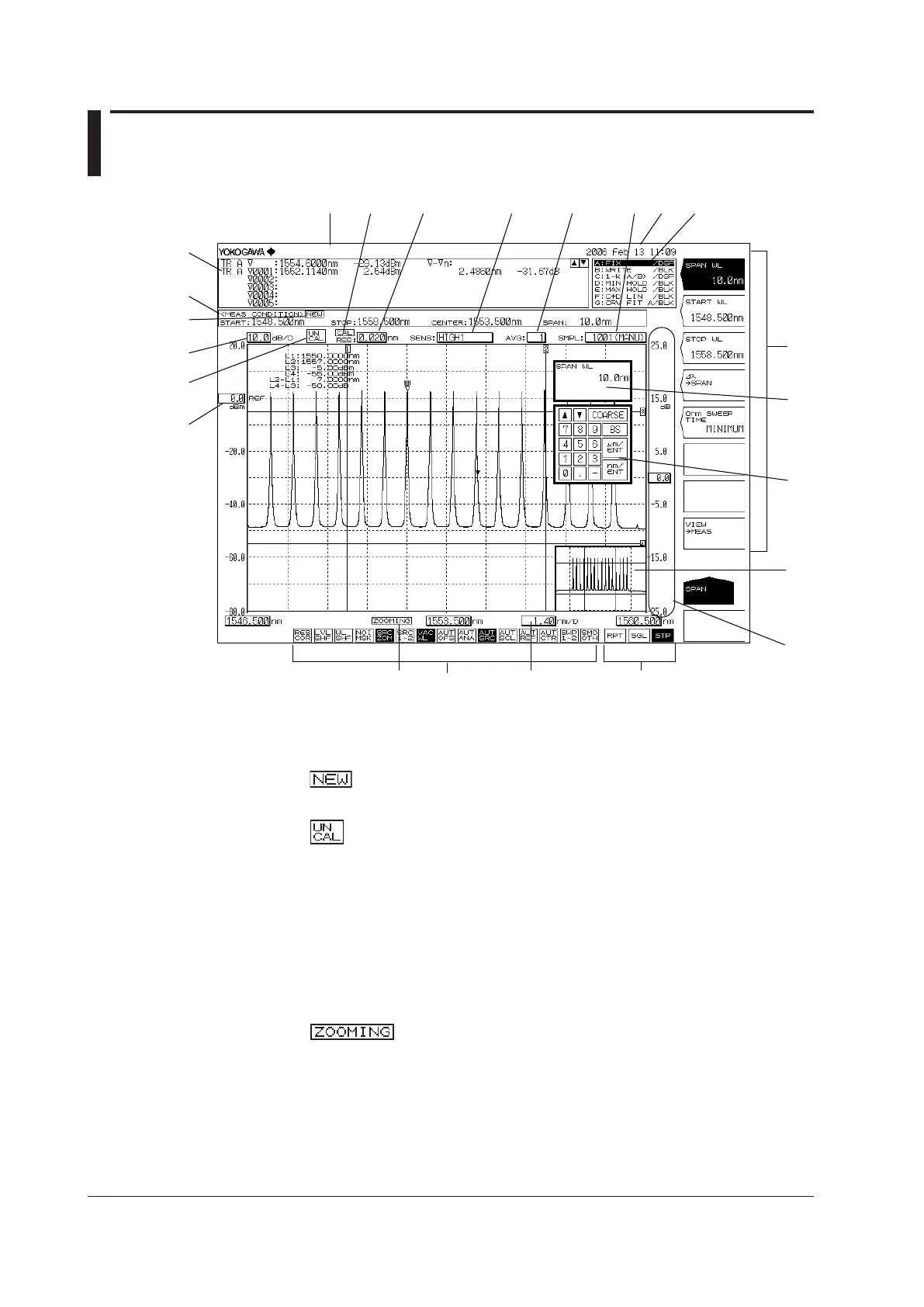

No. Function
1 Data area
2 Measurement conditions area
3
(Displayed when any of the measurement conditions are changed.)
4 Displays level axis scale per DIV
5
(Displayed when measurement is not correctly carried out.)
6 Displays reference level
7 Label area (56 characters)
8 Displays wavelength resolution
9 Displays measurement sensitivity
10 Displays averaging times
11 Displays the number of measurement samples
12 Displays date and time
13 Displays each trace status
14
(Only displayed when ZOOM function is used)
15 Displays the statuses of main settings
(When a setting is ON, its display is depressed, or is displayed with white on black
background if the display colors are black and white.)
16 Displays wavelength axis scale per DIV
17 Displays sweep status
(RPT=Repeat; SGL=Single; STP=Stop)
