5-24
IM AQ6370D-01EN

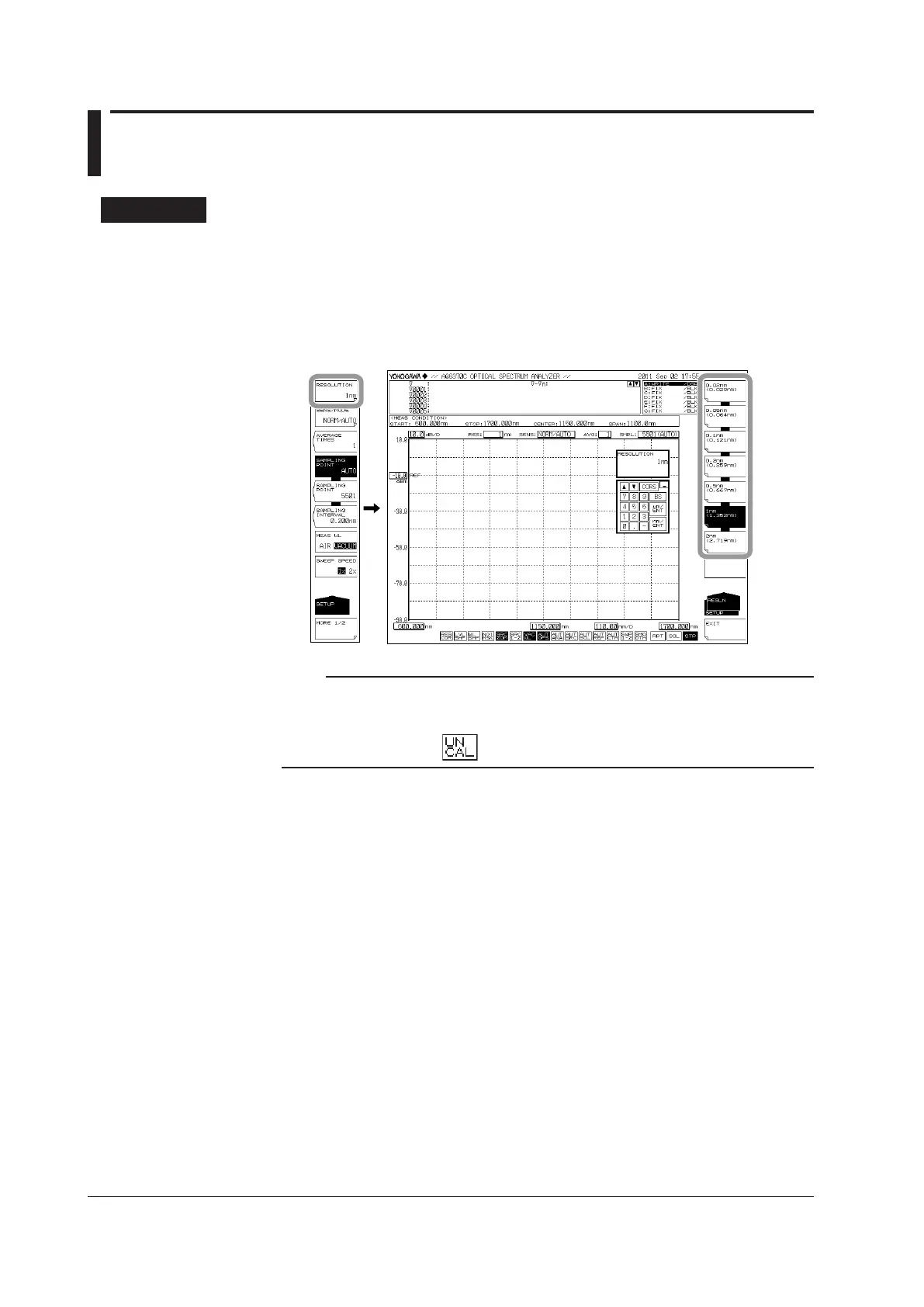

5.7 Wavelength (Frequency) Resolution Settings
Procedure
1.
Press SETUP. The soft key menu for sweep condition settings appears.
2.
Press the RESOLUTION soft key. The resolutions that can be set appear in the
soft key menu.
3.
Press the soft key corresponding to the desired resolution. The screen returns
to the previous stage, and the value specified by the RESOLUTION soft key is
displayed.
Note
• When entering an arbitrary value using the rotary knob, arrow keys, or numeric key pad in
the resolution screen that appears when you press the RESOLUTION soft key, the soft key
value that is closest to the entered value is set.
• The instrument displays if the settings for span, the number of sampling points, and
Corrective Action When “UNCAL” Is Displayed
Perform the following steps.
• Decrease the span.
• Increase the number of samples.
• Lower the resolution (increase the value).
• Select AUTO with the SAMPLING POINT soft key under SETUP.
The “UNCAL” display disappears if the span, number of samples, and the resolution
settings are appropriate.
