8-22
IM AQ6370D-01EN
8.4 Saving/Loading Displayed Data(All Trace)
Procedure
Waveform data displayed by the instrument (all completely-measured trace data) can be
saved to or loaded from USB storage media.
CAUTION
Do not remove the USB storage medium or turn OFF the power when the USB
storage medium's access indicator is blinking. Doing so can damage the medium
or destroy the data on the medium. Also, when removing the USB storage medium,
you must first place the medium in a removable state by following the instructions
in section 8.1.
Saving all trace data
Selecting the Method of Automatically Setting the File Name
Select the method of automatically setting the file name by referring to page 8-6.

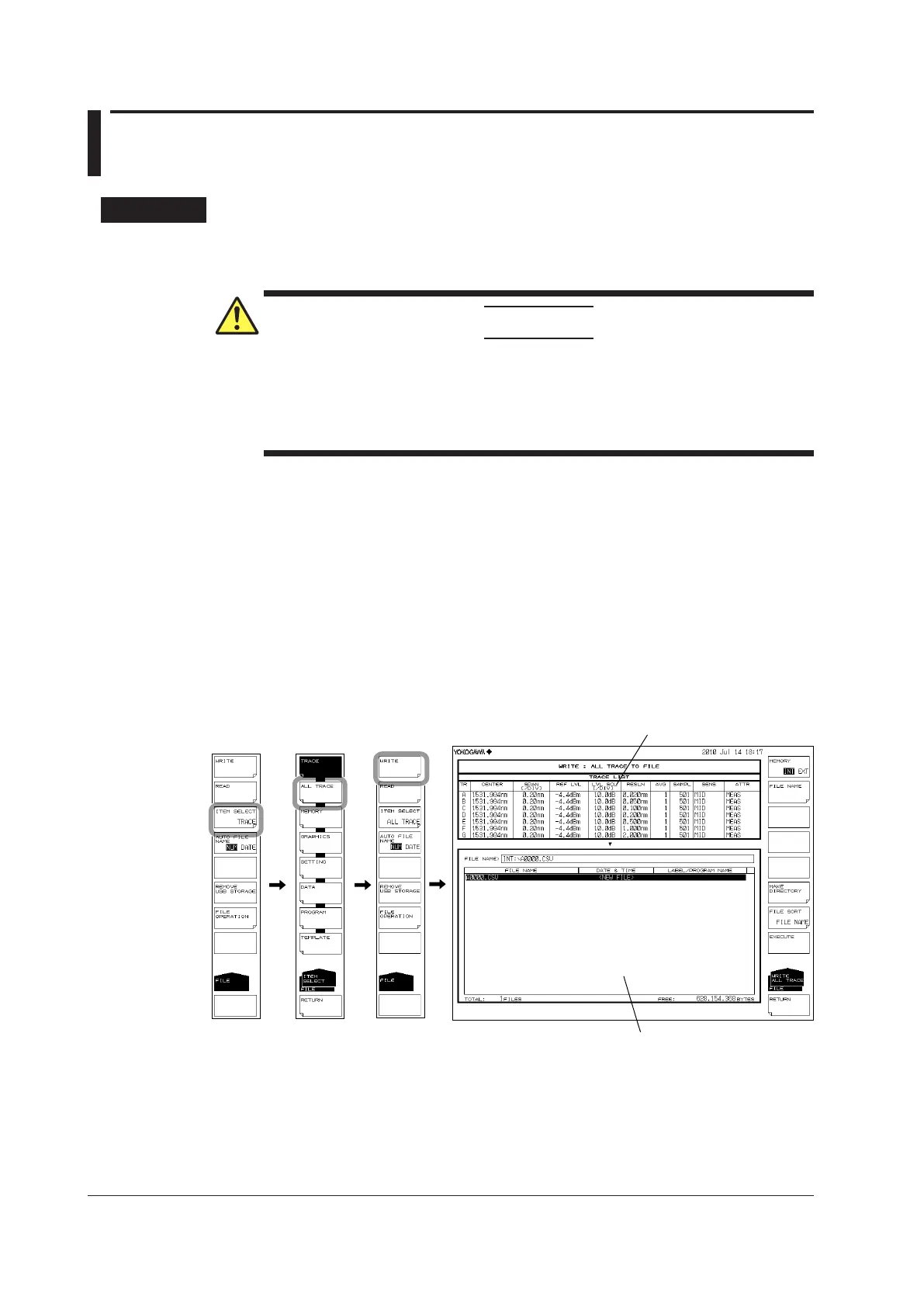

Setting the file type of files to save to ALL TRACE
1.
Press the FILE key. The soft key menu for data saving and loading appears.
2.
Press the ITEM SELECT soft key. A menu for selecting files to save appears.
3.
Press the ALL TRACE soft key. ALL TRACE becomes selected, and the screen
returns to the previous menu.
4.
Press the WRITE soft key. TRACE LIST is displayed on screen.
To Next Page
