6.4 Sweep Average
Procedure
Selecting a Trace to Average
1.

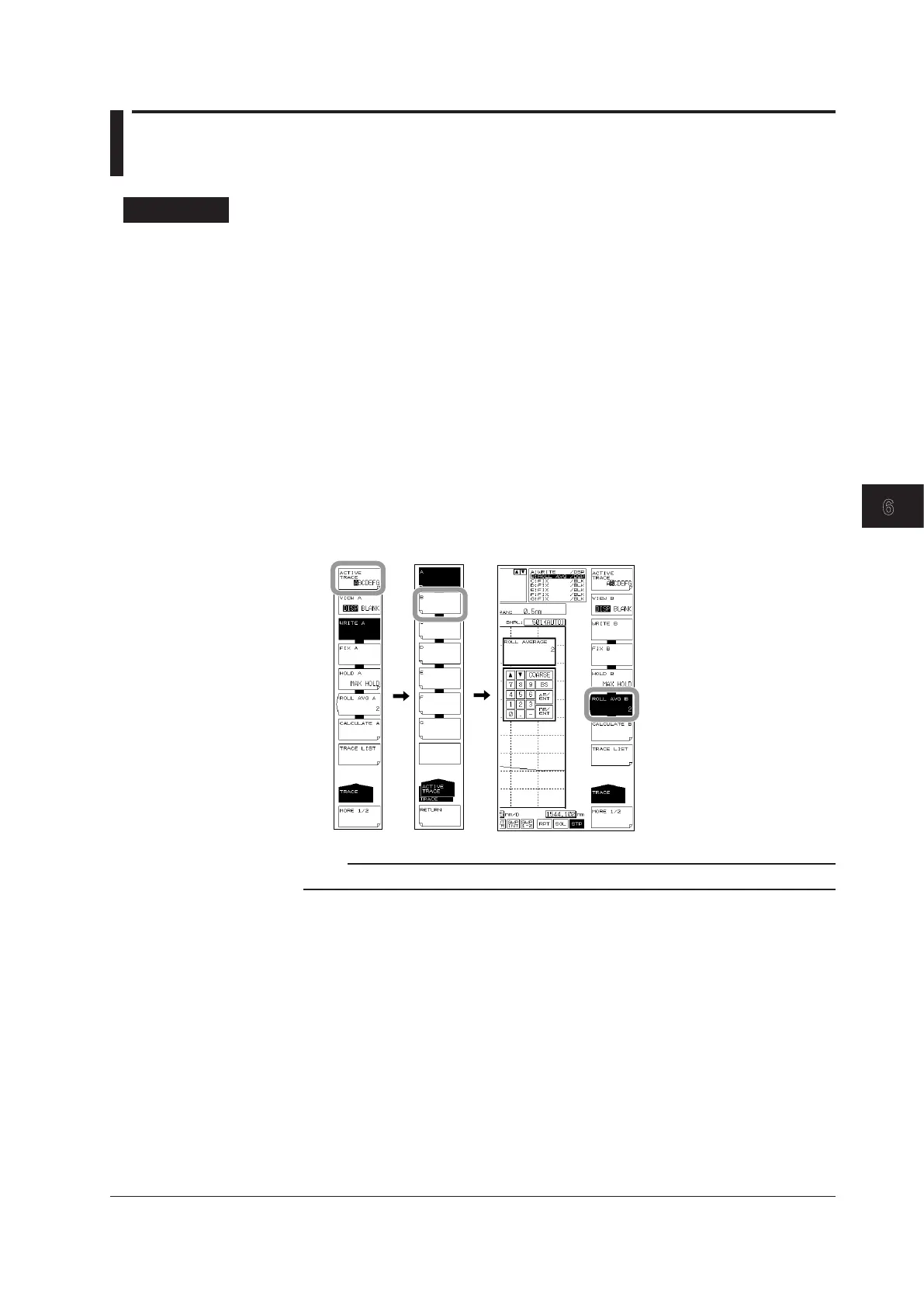

Press TRACE. The soft key menu for trace settings appears.
2.
Press the ACTIVE TRACE soft key. Traces A through G appear in soft keys.
3.
Press the soft key corresponding to the trace you wish to average. The selected
trace is set as the active trace, and becomes the target of the operation below.
4.
Press the VIEW soft key of the selected trace and select DISP. Each time you
press the soft key DISP switches to BLANK, or viceversa. (Trace B is given as an
example.)
Setting the Averaging Times
5.
Press the ROLL AVE soft key. The averaging times dialog box is displayed.
6.
Enter a number of averaging times using the rotary knob, step keys, or numeric
key pad.
7.
Perform measurement. The sweep average value is updated each time
measurement is performed.
note
The allowed setting for averaging times is 2-100.
