6-49
IM AQ6370D-01EN
Waveform Display
6

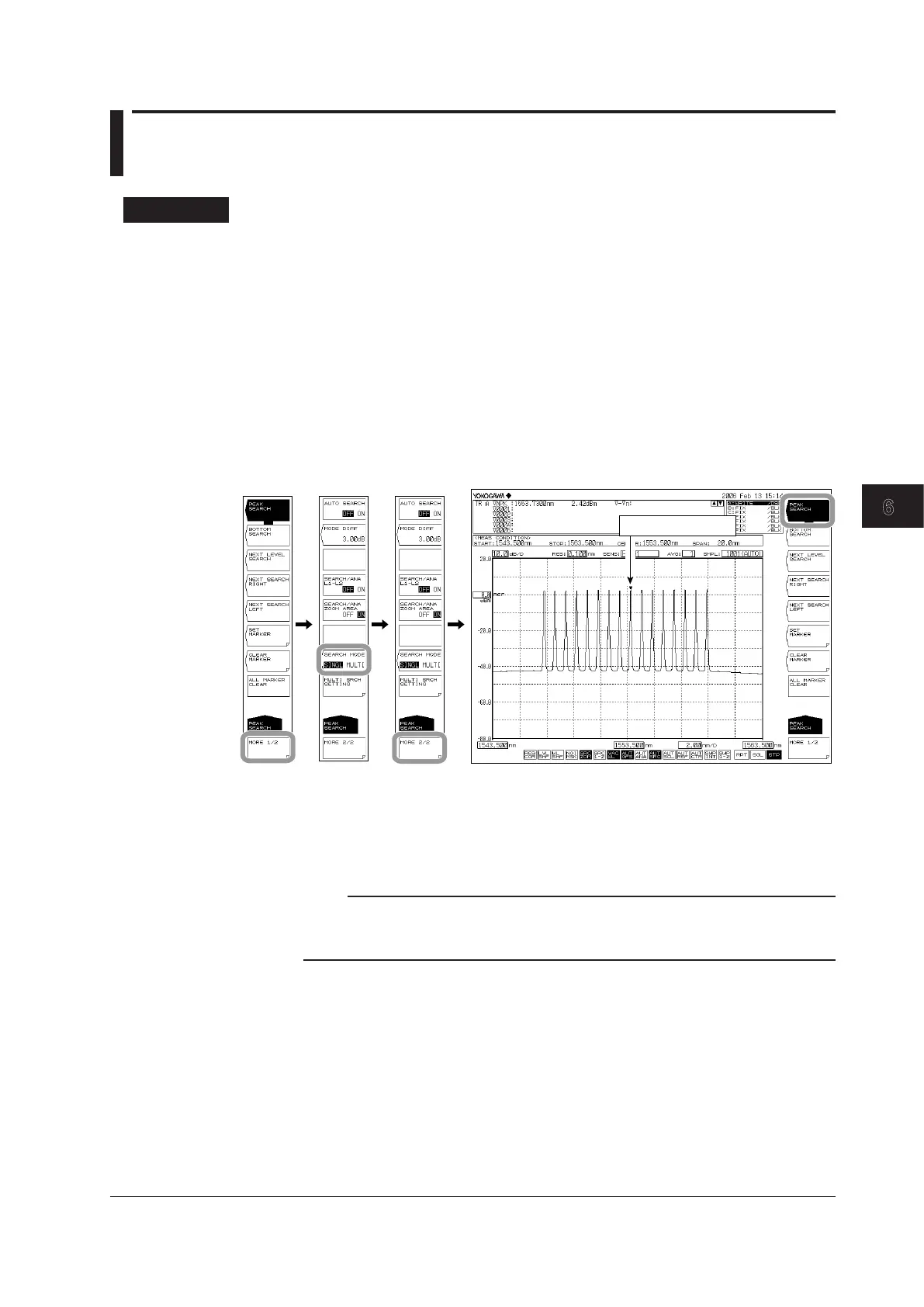

6.13 Single Search
Procedure
Selecting the Single Search
1.
Press PEAK SEARCH. The menu for detecting peak values is displayed.
2.
Press the MORE 1/2 soft key.
3.
Press the SEARCH MODE soft key and select SINGL.
In the default settings, SINGL (single search) is selected.
4.
Press the MORE 2/2 soft key.
Finding the Peak Wavelength/Level
5.
Press the PEAK SEARCH soft key. The moving marker is set on the waveform
peak (the maximum level value) and the marker value is displayed in the data
area.
â–¼: Moving marker
Finding the Bottom Wavelength/Level
5.
Continuing on from step 4, press the BOTTOM SEARCH soft key. The moving
marker is set on the waveform bottom (the minimum level value) and the marker
value is displayed in the data area.
Note
• If the active trace is not set to DISP, the moving marker cannot be used. Set the trace VIEW
@ DISP/BLANK soft key setting to DISP.
• Even if you press PEAK SEARCH the moving marker is displayed.
Finding the Next Peak/Bottom Level
6.
With the moving marker displayed at a waveform peak or bottom, press the
NEXT LEVEL SEARCH soft key. The moving marker is placed on the next peak
(maximum level value) or bottom (minimum level value).
Finding the Level Peak/Bottom to the Right of the Marker
6.
With the moving marker displayed at a waveform peak or bottom, press the NEXT
SEARCH RIGHT soft key. The moving marker is placed on the peak (maximum
level value) or bottom (minimum level value) to the right of its current position.
