5.12 Trace Settings
Procedure

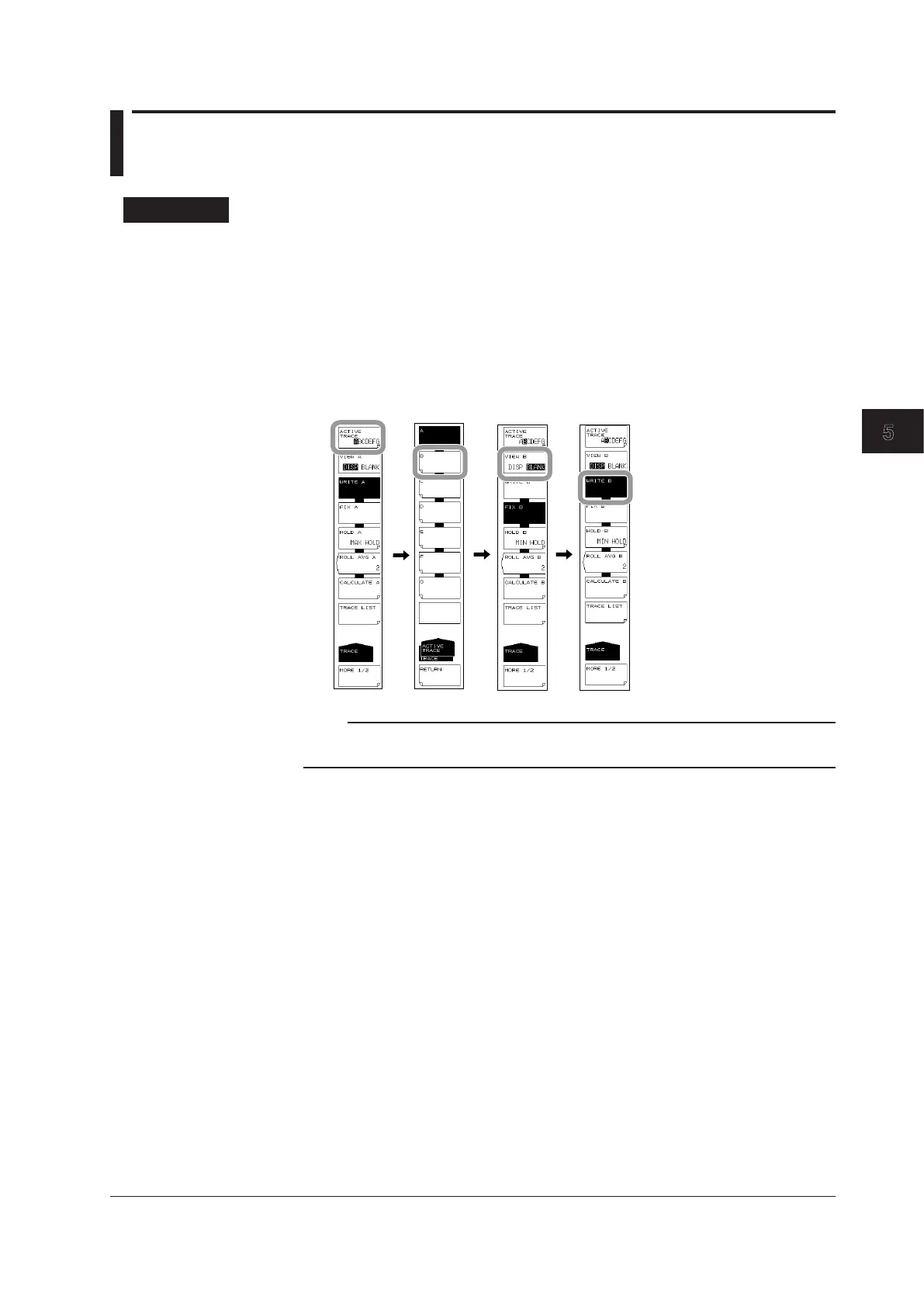

The following explains selecting a trace, writing waveform data, and displaying the data
on screen.
1.
Press TRACE. The soft key menu for traces appears.
2.
Press the ACTIVE TRACE soft key. Traces A through G appear in soft keys.
3.
Press the soft key corresponding to the trace you wish to use. That trace is set as
the active trace (in the example below, this will be trace B).
4.
Press the VIEW B soft key and select DISP.
5.
Press the WRITE B soft key. Trace B is placed in write mode.
Note
Waveforms of traces for which VIEW A to VIEW G are set to BLANK cannot be displayed on
screen.
