When changing the analysis parameters
4.
Continuing on from step 3, press the PARAMETER SETTING soft key. The WDM
analysis parameter setting screen is displayed. If a setting screen has multiple
pages, press the NEXT PAGE soft key to display the next screen.
5.
Move the cursor with the arrow keys or soft keys, and enter a setting value with
the numeric key pad. To select a check box, align the cursor then press the
SELECT soft key.

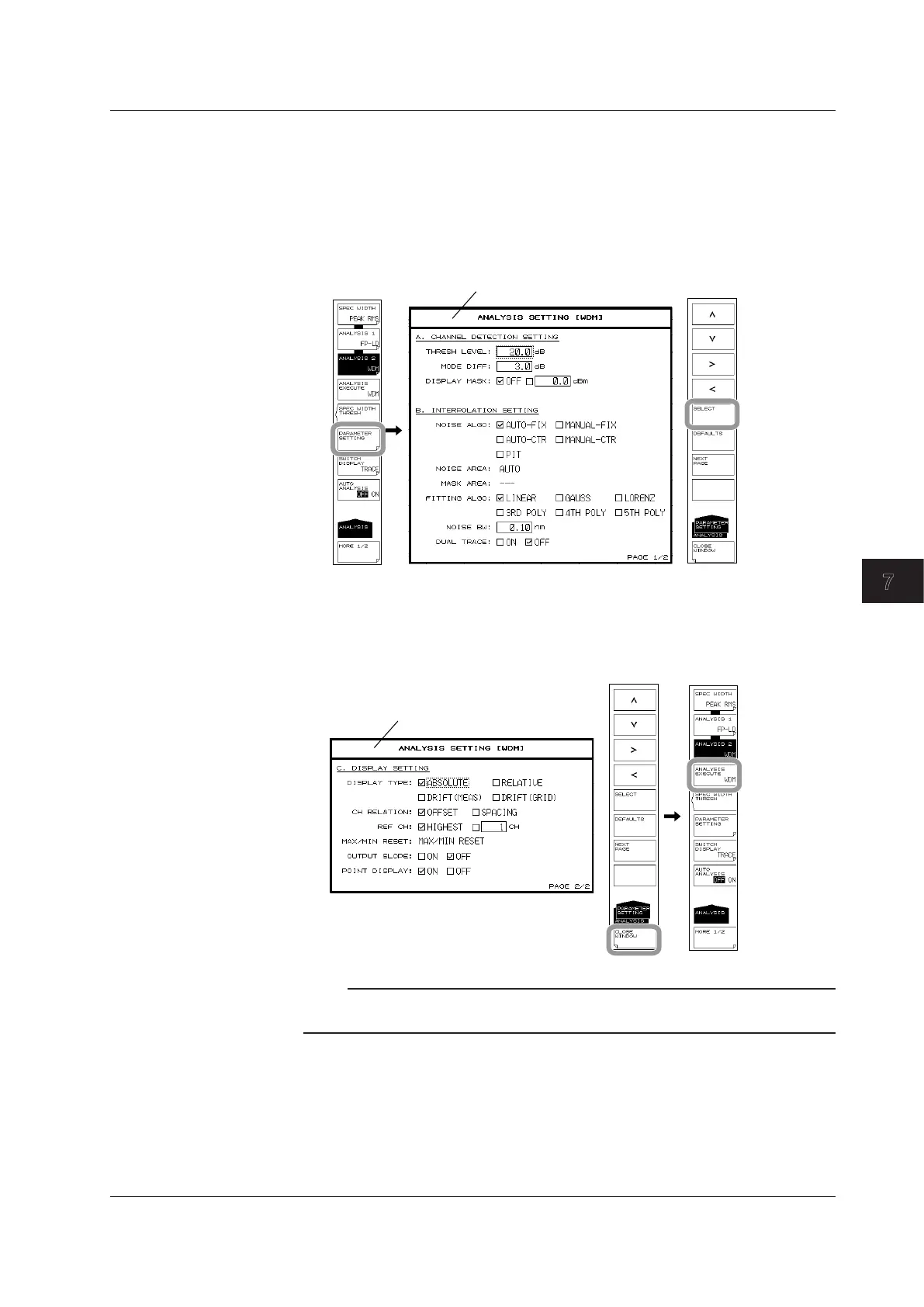

Analysis parameter setting screen
6.
Press the CLOSE WINDOW soft key. The WDM analysis parameter setting
screen closes, and the soft key menu returns to the previous stage.
7.
Press the ANALYSIS EXECUTE soft key. Analysis is performed according to the
changed parameters, and the results are displayed in a list.
Analysis parameter setting screen
Note
See appendix 4, “WDM Analysis Function” for a description of the WDM analysis algorithms
and parameters.
7.7 WDM Transmission Signal Analysis
