CAUTION
Do not input a strong light source to the instrument when turning the power ON. If a
strong light source is input, the optical section can be damaged.

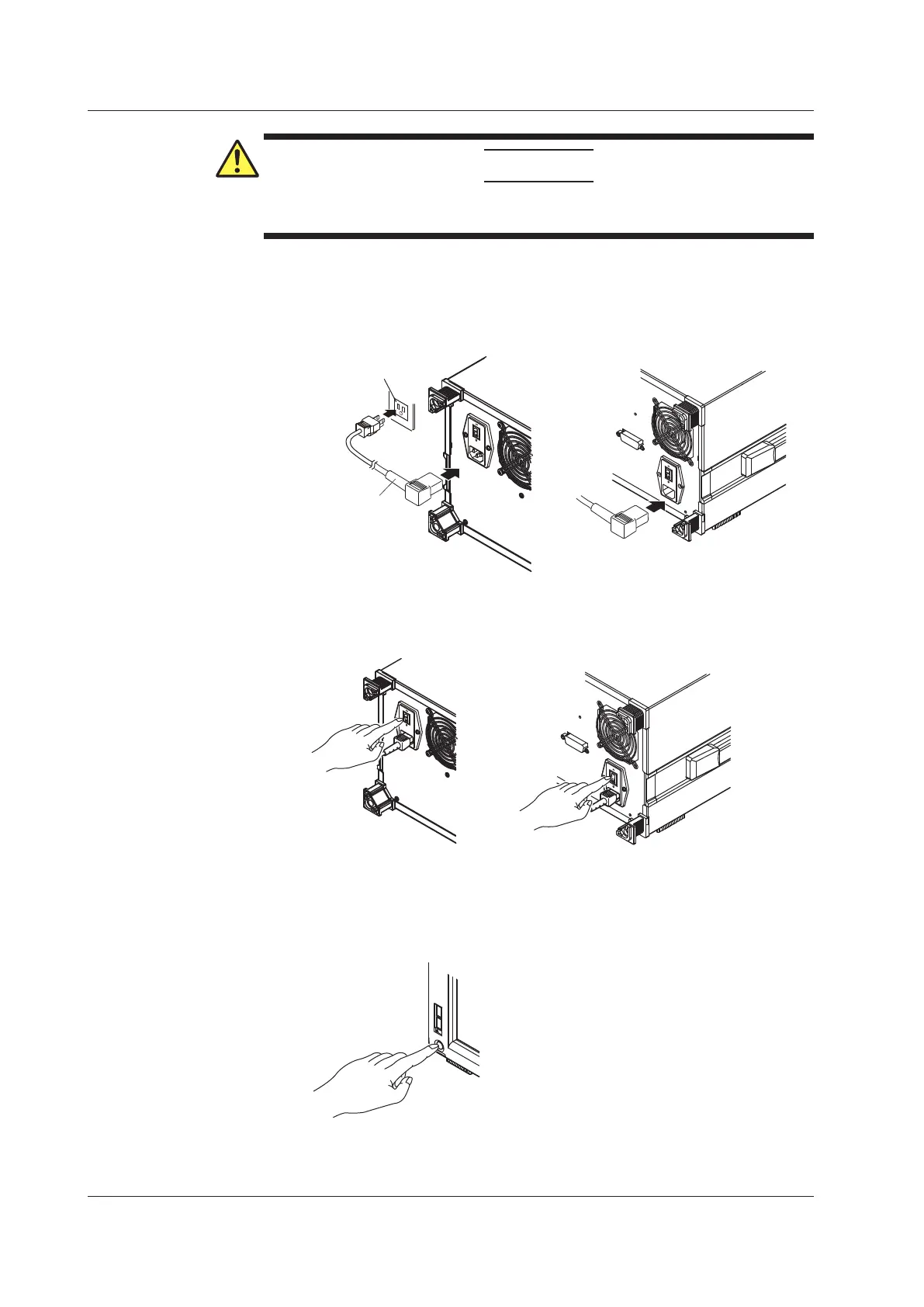

Power On and Screen Display
1.
Connect the power cord to the power cord connector on the back side of the
instrument.
Three-prong outlet
Power cord
(accessory)
AQ6370D-02, -12, -22
AQ6370D-01, -10, -20
2.
Turn ON the MAIN POWER switch on the rear panel of the instrument. The
POWER switch on the front panel of the instrument lights orange.
100
-
240V
150VA
FUSE
AQ6370D-02, -12, -22
AQ6370D-01, -10, -20
3.
Press the POWER switch on the front panel of the instrument. The color of
the switch turns from orange to green. The operating system starts up, and
initialization of the instrument begins.
The instrument will not start for a few seconds immediately after step 2 even if you press the
POWER switch.
USB
POWER
The initialization screen appears, and the internal initialization process starts. STEP
1/9 through STEP 9/9 are displayed in the lower right part of the screen to indicate the
progress of initialization.
3.4 Turning the Power ON/OFF
