YOKOGAWA AQ6370D User Manual

App-56
IM AQ6370D-01EN
MARKER
1
2
13
15
3
4
5
6
8
7
7-1
7-2
7-3
7-5
7-4
9
10
11
12
14
16
18
17
7-2-1
7-2-2
7-2-3
7-2-4
7-2-5
7-3-1
7-3-2
7-3-3
7-3-4
7-3-5
1 Moving marker display ON/OFF (6.9)
2 Setting moving markers to fixed markers (6.9, 6.13)
3 Clearing fixed markers (6.9, 6.13)
4 Setting the moving marker wavelength (frequency) to measurement center (2.2, 5.5, 6.9)
5 Setting the moving marker wavelength (frequency) to display scale center (2.2, 6.9)
6 Setting the moving marker level to reference level (2.2, 5.4, 6.9)
7 Displays advanced markers (2.3, 6.9)
7-1 Turns on or off the advanced marker display (6.9)
7-2 Sets advanced markers (6.9)
7-2-1 Selects the trace to assign the marker to (6.9)
7-2-2 Sets moving markers (6.9)
7-2-3 Sets power density markers (6.9)
7-2-4 Sets integrated power markers (6.9)
7-2-5 Sets integration wavelength range (6.9)
7-3 Executes a search based on advanced markers (6.9)
7-3-1 Executes a peak search (6.9)
7-3-2 Executes a bottom search (6.9)
7-3-3 Sets the advanced marker from the current position to the next peak or bottom value
(6.9)
7-3-4 Sets the advanced marker from the current position to the next local peak or bottom
value on the right (6.9)
7-3-5 Sets the advanced marker from the current position to the next local peak or bottom
value on the left (6.9)
8 Clear all displayed moving and fixed markers (6.9, 6.13)
9 Line markers ON/OFF (6.9)
10 Setting the measurement span to between line markers 1 and 2 (2.2, 5.6, 6.9)
11 Setting the zoom span to between line markers 1 and 2 (2.2, 6.9)
12 Clear all displayed line markers (6.9)
13 Marker display settings (6.9)
14 Setting whether to automatically update the fixed marker's level values when updating active
trace (6.9)
15 Marker value units setting (6.9, 7.10)
16 Setting the peak search, bottom search, and analysis function ranges to between line markers L1
and L2 (6.13, 7.13) (For both the PEAK SEARCH and ANALYSIS menus)
17 Setting the peak search, bottom search, and analysis function ranges to within the zoom range
(6.13, 7.13) (For both the PEAK SEARCH and ANALYSIS menus)
18 Sweep between line markers (5.14)

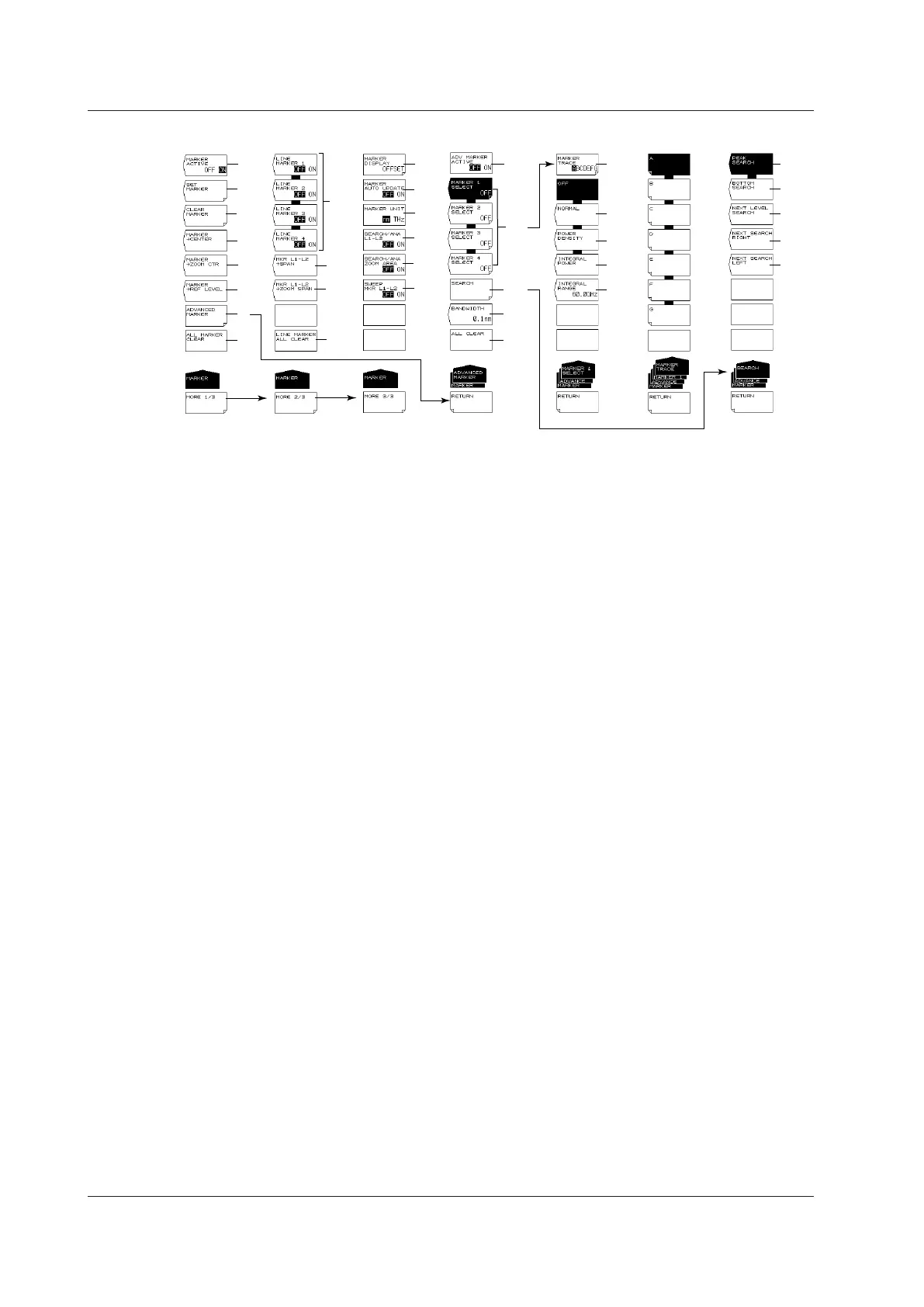

Appendix 7 Soft Key Tree Diagram
