Explanation
Broadcast Types That TV Trigger Supports
You can select the broadcast type.
NTSC(525/60/2), PAL(625/50/2), SDTV(480/60p), HDTV(1080/60i, 1080/50i, 720/60p,
1080/25p, 1080/24p, 1080/24sF, 1080/60p, 1125/60/2), USER
Field Number
You can select the field number to be detected.
1 Detect a field in which the start of the vertical sync pulse and the start of the line is at the
same time.
2 Detect a field in which the start of the vertical sync pulse is delayed by 1/2 H (H is the
horizontal scan interval) of the start of the line.
X Detect both.
Line Number
A trigger is activated at the start of the line of the specified number.
Broadcast Type Selectable Range
NTSC 5 to 1054
PAL 2 to 1251
SDTV 8 to 2251
HDTV 2 to 2251
User 2 to 2251

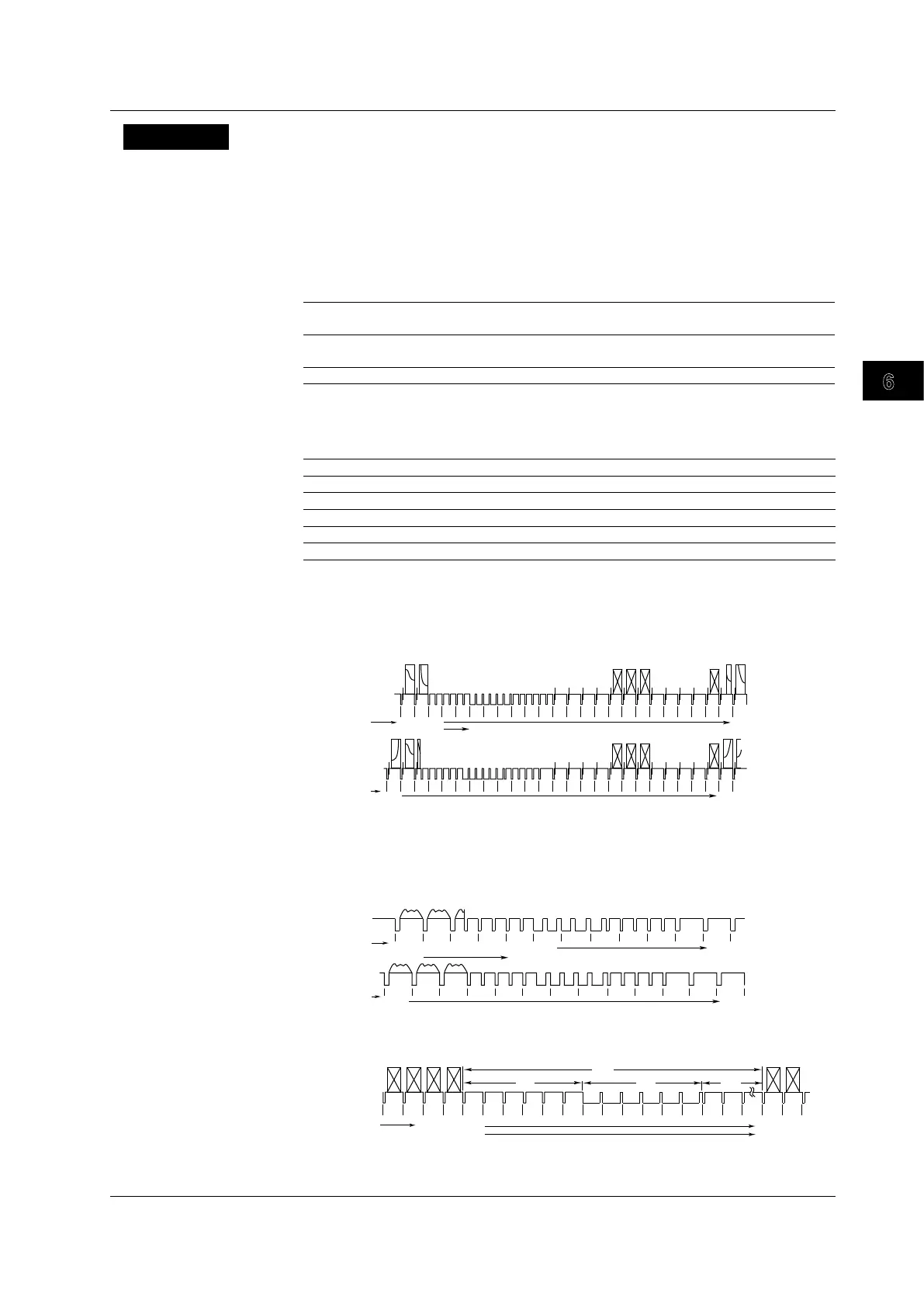

• NTSC Example NTSC Example
The line numbers below are for the case when the field number is set to 1.
(If the field number is set to 2, the numbers are assigned sequentially by setting 268
to 5.)
524 525
(1) (2) (3) (4) 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Field 1
262 263 264 265266267268269270271272273274 275 276 277 278 279 280 281 282 283 284 285
Field 2
261
Line number
Line number
1049 1050
526 548
1051 1054
786 810
Line numbers inside the parentheses cannot be set.
• PAL Example PAL Example
The line numbers below are for the case when the field number is set to 1.
(If the field number is set to 2, the numbers are assigned sequentially by setting 315
to 2.)
621 622 623 624 625
2 3 4 5 6 7(1)
Field 1
308 309 310 311 312 313 315314 316 318317 320319
Field 2
Line number
1246 1250
632626
1251
Line number
933 945
Line number inside the parentheses cannot be set.
• SDTV Example SDTV Example
524 525
(1) (2) (3) (4) (5) (6) (7) 8 9 10 11 12 13 14
2207 2208
526
568
2209 2251
43
30H
42H
6H
6H
Line number
Line numbers inside the parentheses cannot be set.
6.13 Setting the TV Trigger
