YOKOGAWA DL9040L User Manual

Displaying and Searching History Waveforms
11-1
IM 701310-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

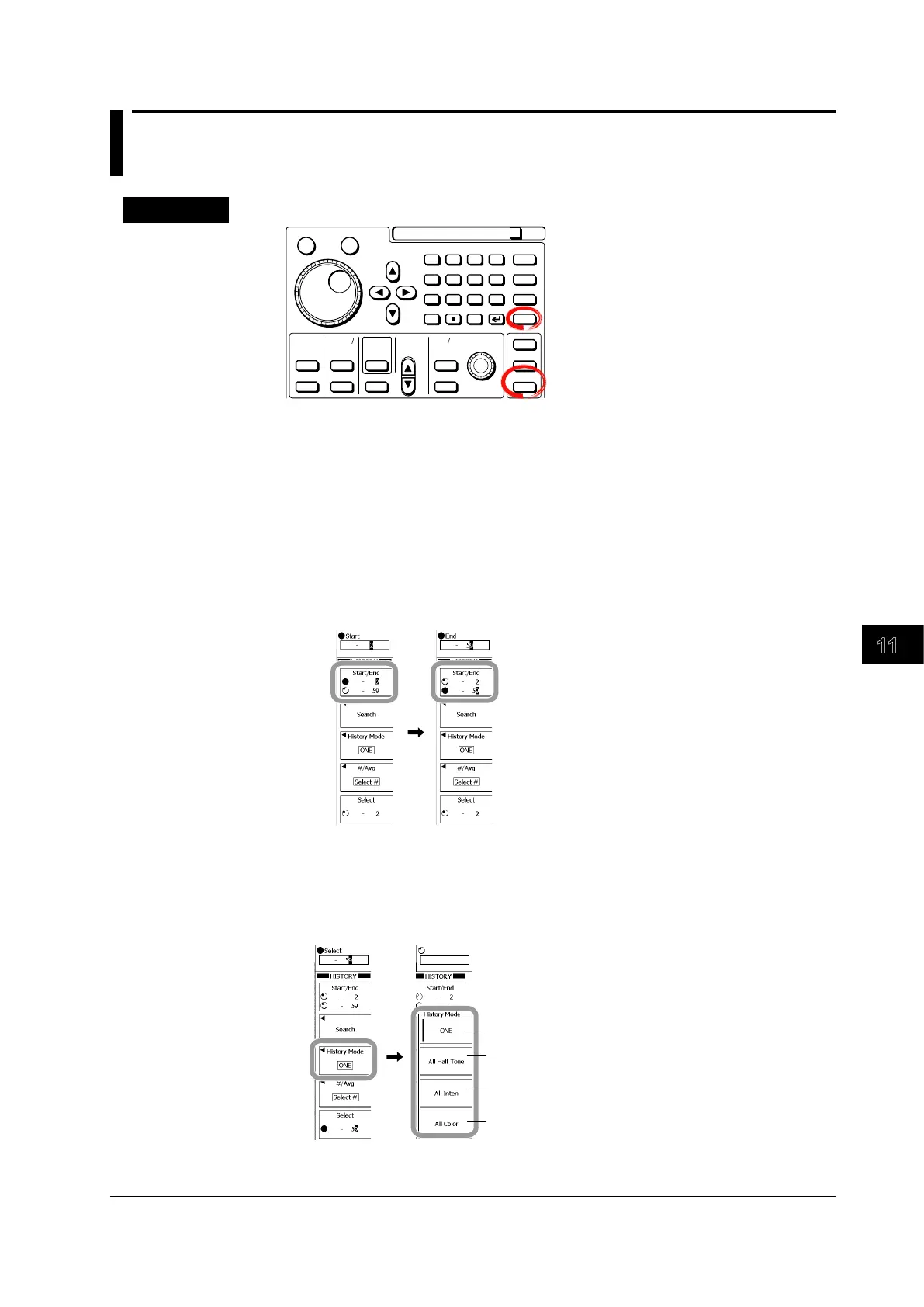

11.1 Displaying History Waveforms
Procedure
RESET SET
7 8 9 BS
PRINT
FILE
SHIFT
SYSTEM
EXP
CLEAR
M
MENU
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B
CURSOR
PARAM
WINDOW 1
WINDOW 2
SETUP
ACCUM
ZOOM 1
ZOOM 2
DISP 2 HISTORY CLEAR
DISP
1
MAG
INTENSITY
SETUP
HELP
HISTORY
MEASURE
FORM
ZOOM
EYE DIAGRAM
SEARCH
DECODE
ANALYSIS
DISPLAY
SERIAL
BUS
1.
Press HISTORY.
If you press HISTORY
while signal acquisition is in progress, signal acquisition
will stop.
Selecting History Waveforms to Display
2.
Press the Start/End soft key to select the setting you want to adjust using the
rotary knob.
3.
Use the rotary knob to set the first and the last record numbers of history
waveforms you want to display.
Selecting a Display Mode
4.
Press the History Mode soft key.
5.
Press the soft key that corresponds to the display mode you want to use for the
history waveforms.
Displays one specified waveform
Accumulates all history waveforms other than
the highlighted waveform using halftone curves
Accumulates history waveforms using different intensities
depending on the frequency of data occurrence
Accumulates history waveforms using different colors
depending on the frequency of data occurrence
Chapter 11 Displaying and Searching History Waveforms
