YOKOGAWA DL9040L User Manual

4-3
IM 701310-01E
Basic Operations
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

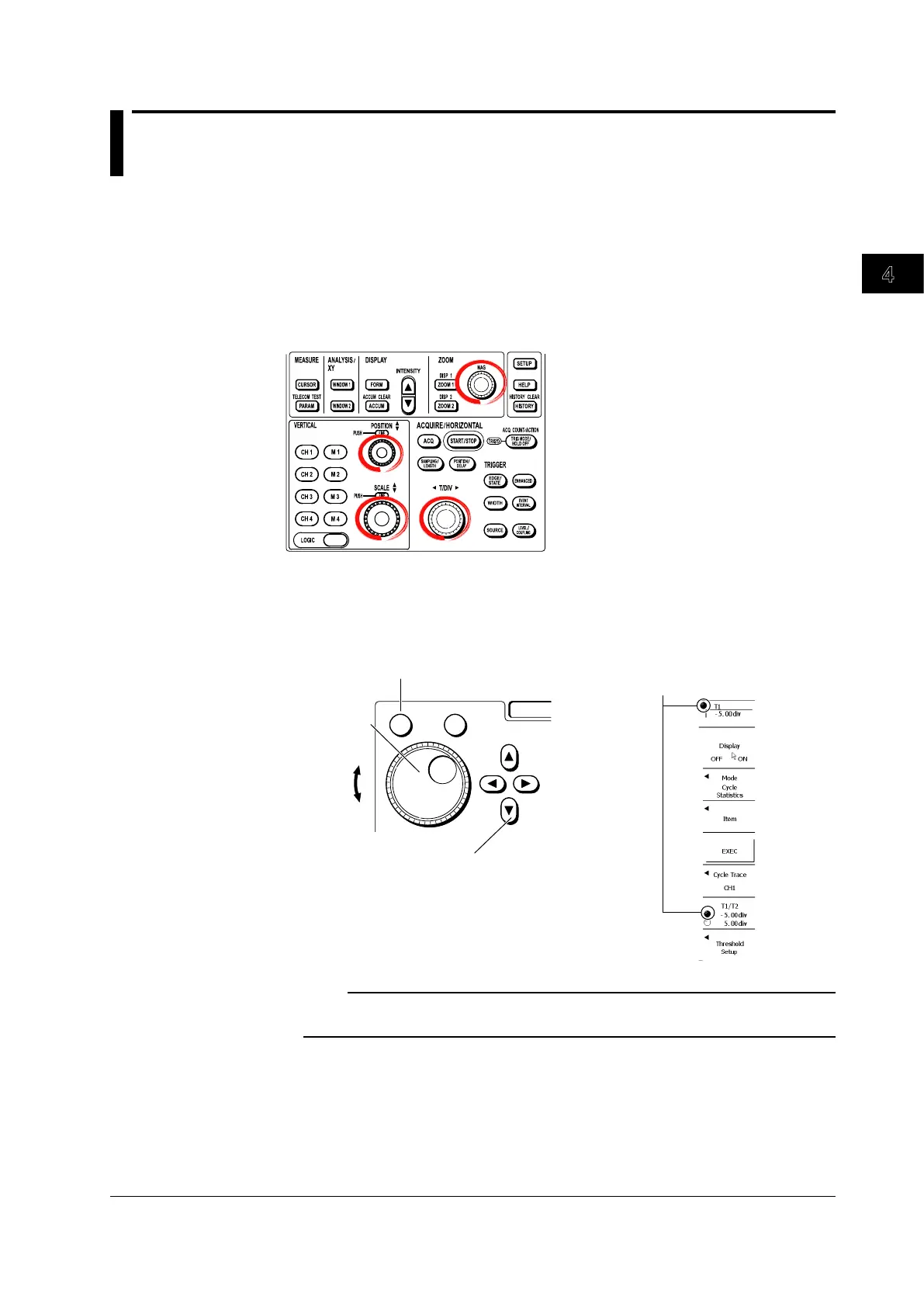

4.2 Entering Values and Strings
Entering Values
Entering Values Directly Using the Dedicated Knobs
The dedicated knobs indicated below can be turned to directly enter values.
• POSITION knob
• SCALE knob
• T/DIV knob
• MAG knob
Entering Values Using the Rotary Knob
After selecting the item you want to set by using soft keys, change its value using the
rotary knob and arrow keys. In this manual, this operation may be simply described as
“using the rotary knob.”
RESET SET
Resets the setting to its initial value.
Arrow keys
Left/Right keys: Move between digits.
Up/Down keys: Change the selected value.
Rotary knob
Decreases
the value.
Increases
the value.
Mark indicating that the rotary knob
can be used to set the value
Note
The items that can be changed using the rotary knob are reset to their default values when the
RESET key is pressed.
