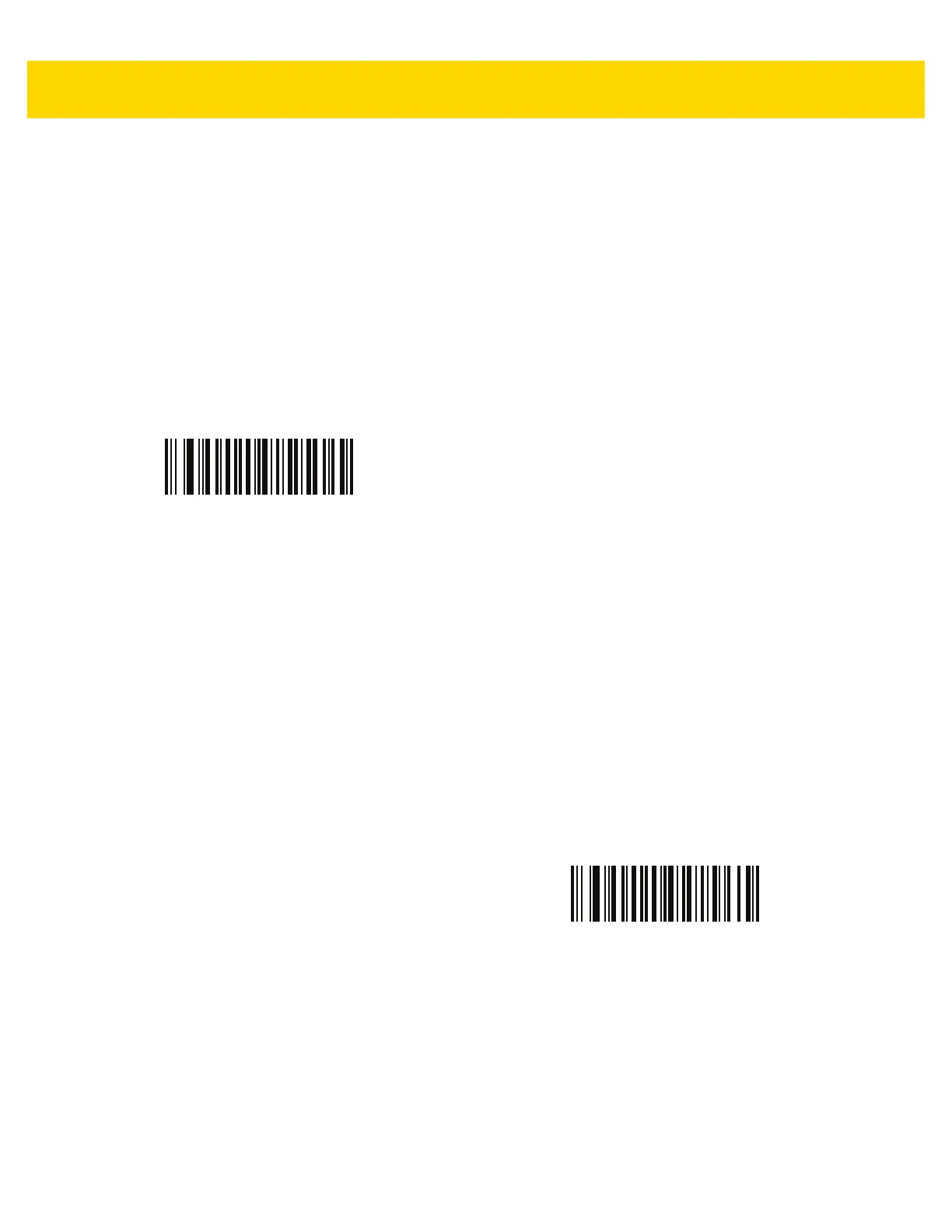

Intelligent Document Capture 13 - 9
IDC X Coordinate
Parameter Name: DocCap_X
Parameter # 596
SSI # F4h F1h 54h
This parameter only applies when IDC Operating Mode is set to Anchored. Specify the horizontal offset to the top
left corner of the region to capture relative to the center of the bar code. Negative values move toward the left.
Scan the following bar code, and then scan four bar codes from Appendix B, Numeric Bar Codes in the range of
+/- 1279. The default is -151. Note that you must use an application to set a negative value.
IDC Y Coordinate
Parameter Name: DocCap_Y
Parameter # 597
SSI # F4h F1h 55h
This parameter only applies when IDC Operating Mode is set to Anchored. Specify the vertical offset to the top left
corner of the region to capture relative to the center of the bar code. Negative values move toward the top.
Scan the following bar code, and then scan four bar codes from Appendix B, Numeric Bar Codes in the range of
+/- 1023. The default is -050. Note that you must use an application to set a negative value.
IDC X Coordinate
IDC Y Coordinate
