Zebra DS8108 User Manual

Data Capture 2 - 11
Assembling the Document Capture Stand
The DS8108 Document Capture Stand provides Hands-free digital imaging operation. The stand components,
(Figure 2-10), ship in two boxes: Document Capture Base (p/n STND-DC0081C-04); and, Cup and Neck in Stand
Base (p/n 20-66483-02R).

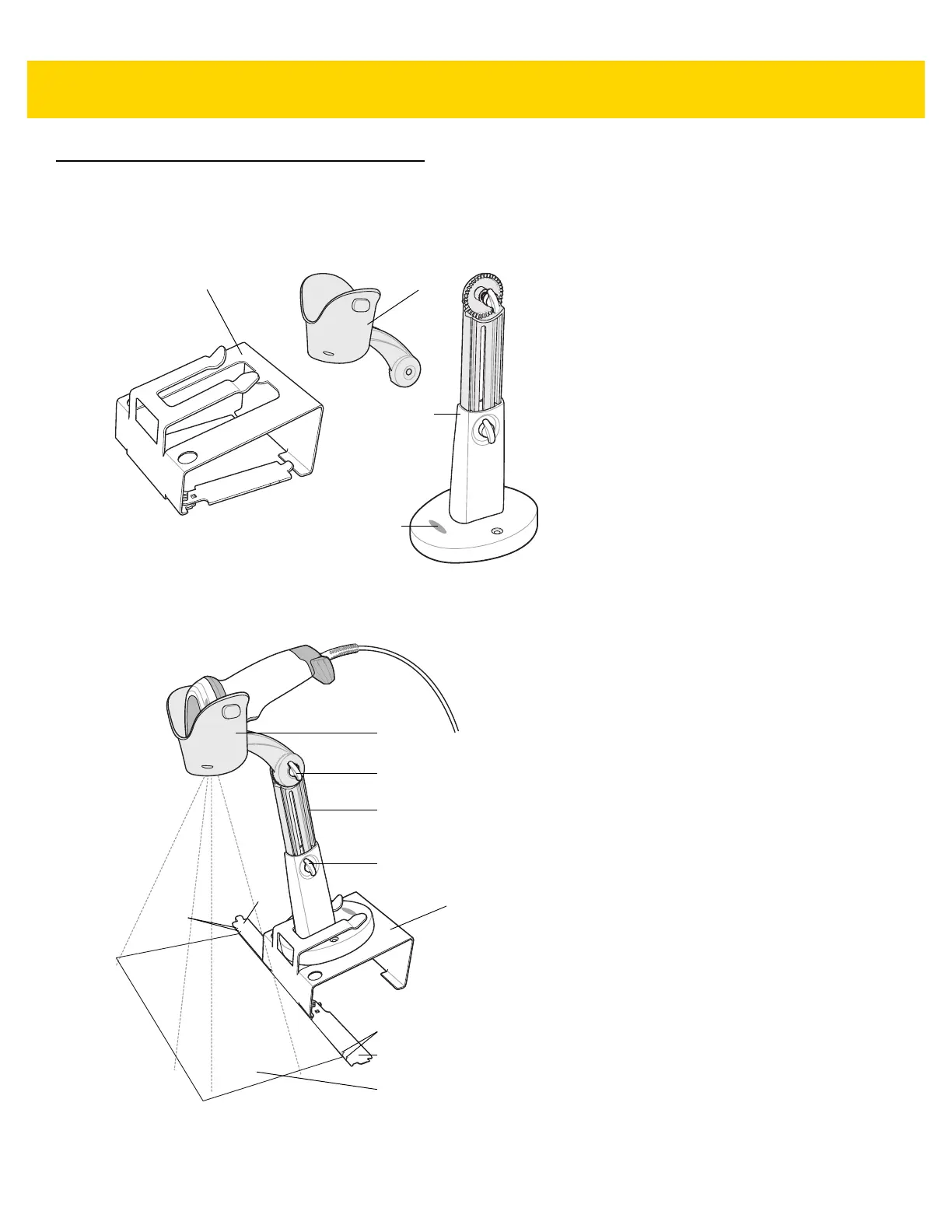

Figure 2-10 Document Capture Stand Components
The stand can be used with the digital scanner to capture images on paper sizes up to A4 and letter (8½ in x 11 in).
Figure 2-11 Document Capture Stand Features
Document Capture Base
Neck in
Stand Base
Cup
Logo Label
Document
Document Capture Base
Document Guides
Neck
Arm
Cup
Arm
Cup Lock
Screw
Neck Lock Screw
Document
Guides

Zebra DS8108 Specifications

General

Cables included	USB
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	5 V
Power consumption	450 mA
Power source type	-
PC connection	RS-232/USB
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP42
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	154 g
