Zebra DS8108 User Manual

Intelligent Document Capture 13 - 11
IDC Aspect
Parameter Name: DocCap_ASPECT
Parameter # 595
SSI # F1h 53h
This parameter only applies when IDC Operating Mode is set to Anchored. Specify the bar code's aspect ratio of a
thin bar or space. The bar code's height is divided by this value to obtain the unit in the y-axis. Set this parameter to
zero to calculate the aspect value automatically.
Scan the following bar code, and then scan three bar codes from Appendix B, Numeric Bar Codes in the range of
000 to 255. The default is 000.
IDC File Format Selector
Parameter Name: DocCap_FMT
Parameter # 601
SSI # F1h 59h
Select a document capture file format appropriate for your system (BMP, TIFF, or JPEG). The scanner stores
captured areas in the selected format.

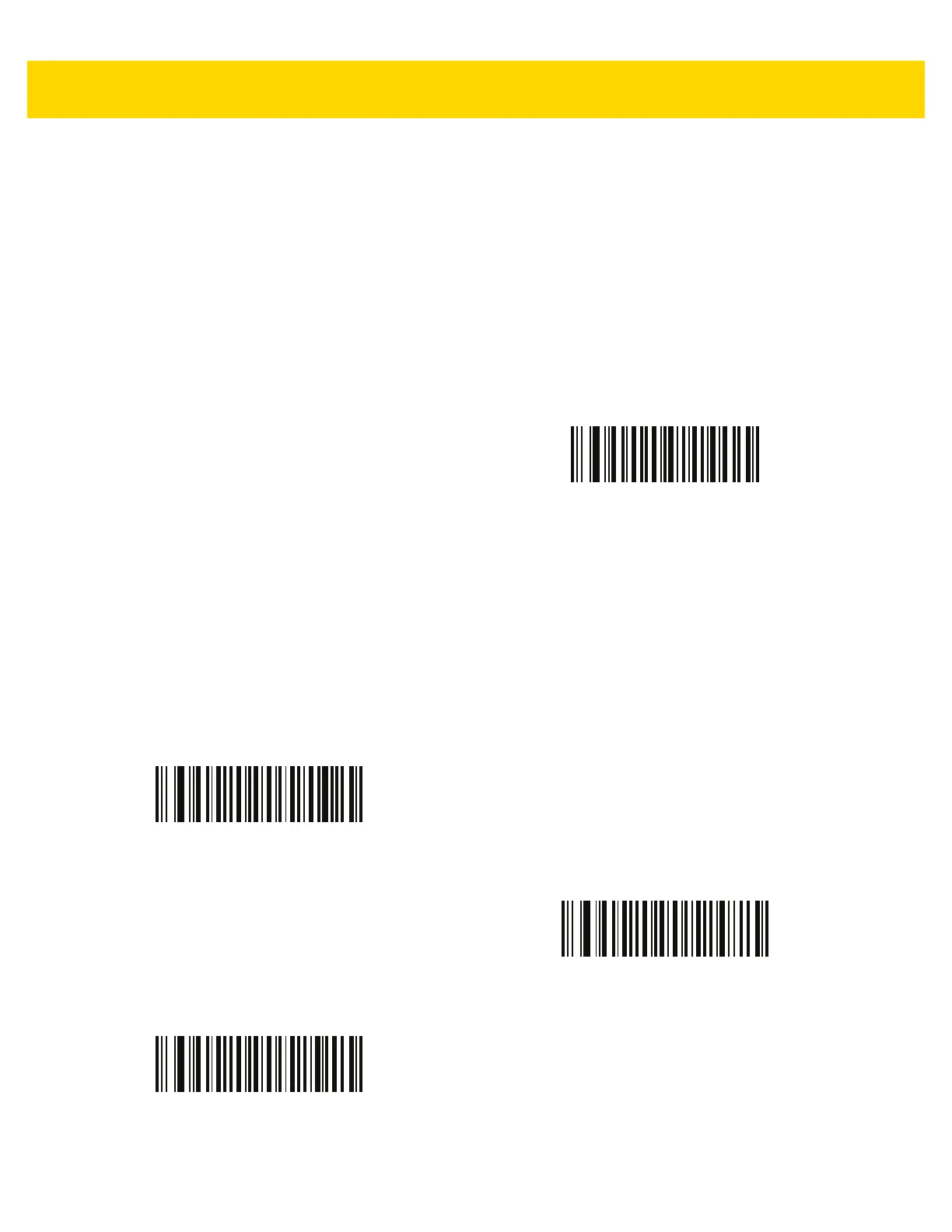

IDC Aspect
*JPEG
(1)
BMP
(3)
TIFF
(4)

Zebra DS8108 Specifications

General

Cables included	USB
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	5 V
Power consumption	450 mA
Power source type	-
PC connection	RS-232/USB
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP42
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	154 g
