Zebra DS8108 User Manual

OCR Programming 12 - 11
US Currency Serial Number
Parameter # 683
SSI # F1h ABh

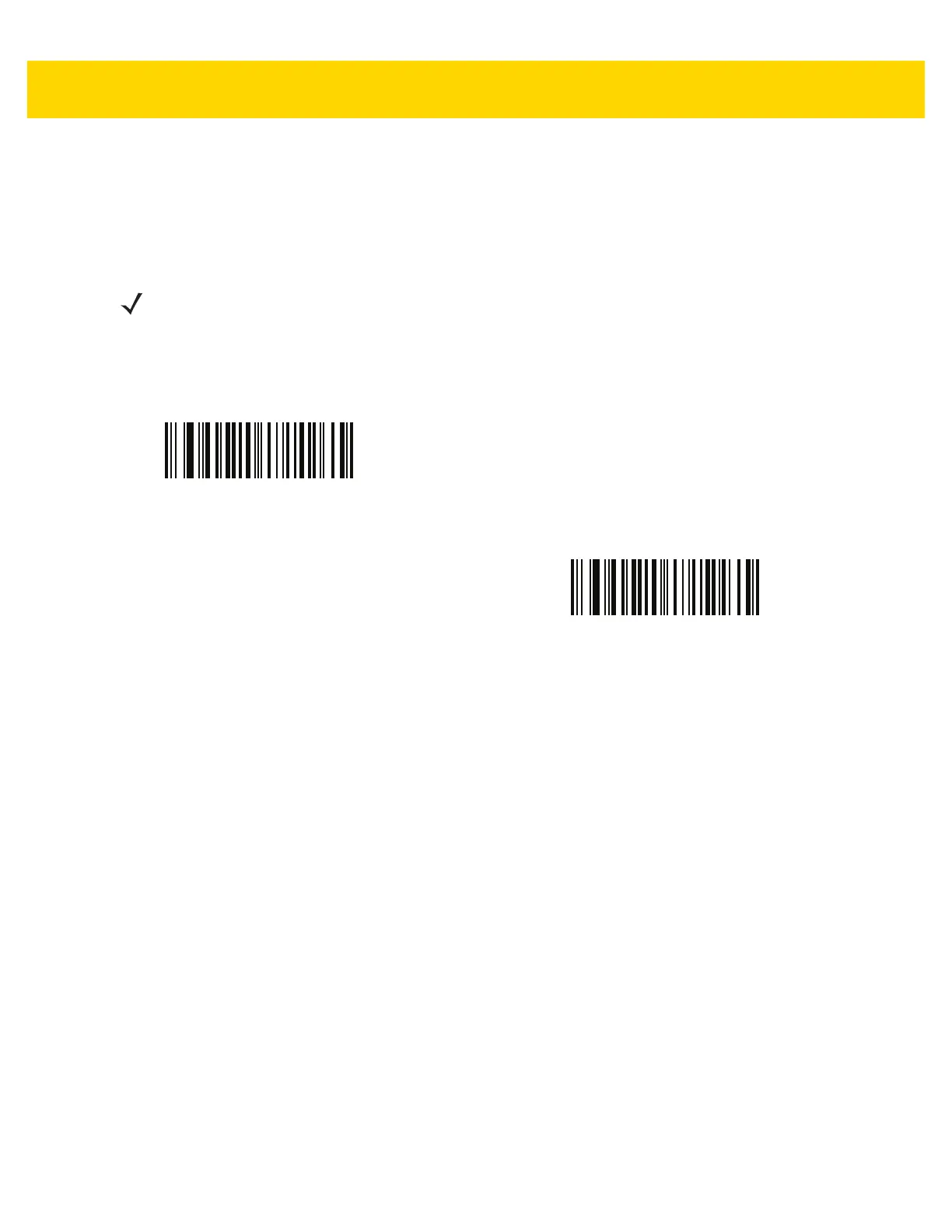

Scan one of the following bar codes to enable or disable US Currency Serial Number.
OCR Orientation
Parameter # 687
SSI # F1h AFh
Select one of five options to specify the orientation of the OCR to read:
• 0
o
to the imaging engine (default)
• 270
o
clockwise (or 90
o
counterclockwise) to the imaging engine
• 180
o
(upside down) to the imaging engine
• 90
o
clockwise to the imaging engine
• Omnidirectional
Setting an incorrect orientation can cause misdecodes.
NOTE OCR is not as secure as a bar code. To decrease OCR misdecodes and speed OCR reading, set an
accurate OCR template and character subset, and use a check digit. See OCR Subset on page 12-14 and
OCR Template on page 12-15.
Enable US Currency
(1)
*Disable US Currency
(0)

Zebra DS8108 Specifications

General

Cables included	USB
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	5 V
Power consumption	450 mA
Power source type	-
PC connection	RS-232/USB
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP42
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	154 g
