8 - 2 DS8108 Digital Scanner Product Reference Guide
Errors While Scanning
Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter.
Connecting a Keyboard Wedge Interface

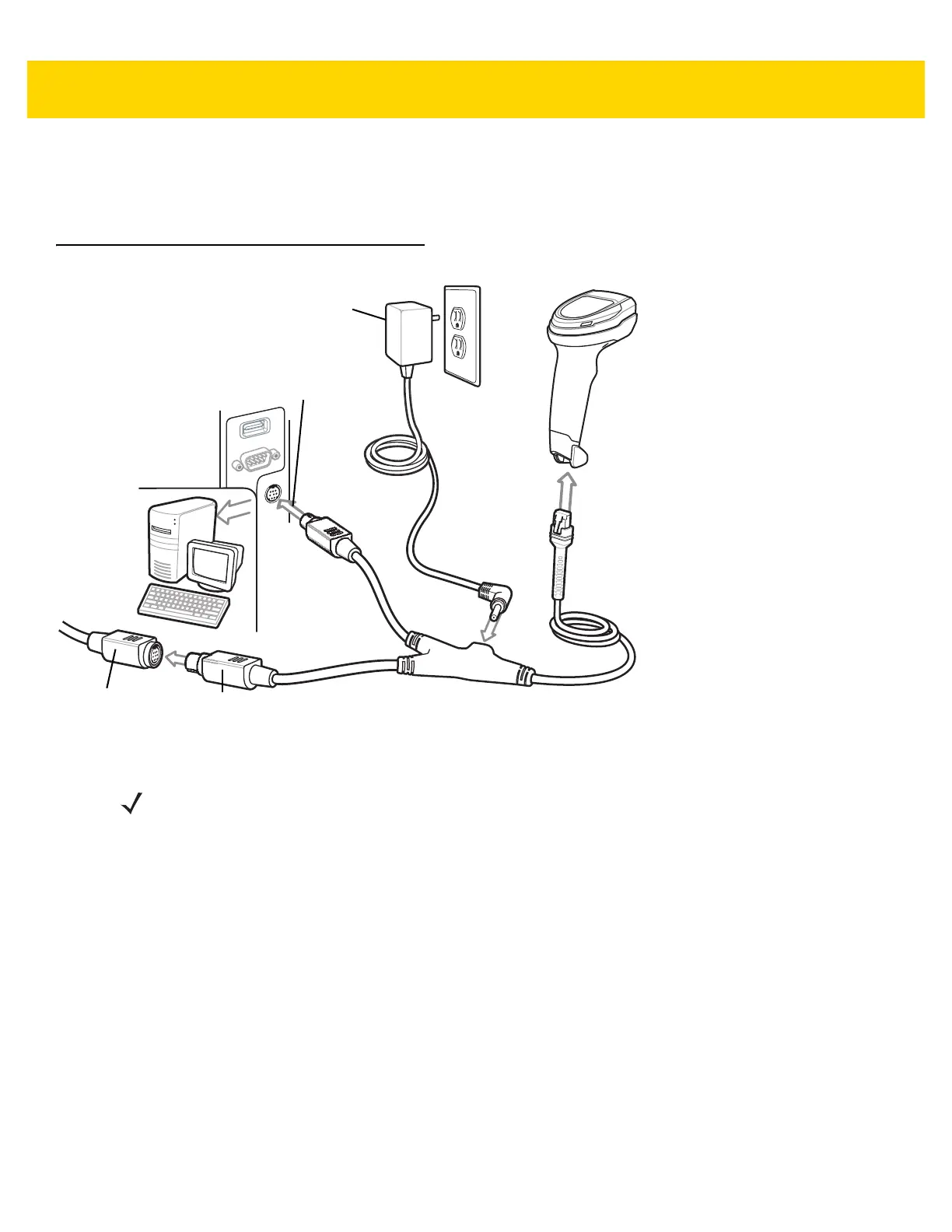

Figure 8-1 Keyboard Wedge Connection
1. Turn off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the scanner. See Installing the
Interface Cable on page 1-3.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host device.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. If required, attach the optional power supply to the connector in the middle of the Y-cable.
6. Ensure that all connections are secure.
7. Turn on the host system.
8. The scanner automatically detects the host interface type and uses the default setting. If the default (*) does
not meet your requirements, scan IBM PC/AT & IBM PC Compatibles on page 8-4.
9. To modify other parameter options, scan the appropriate bar codes in this guide.
If problems occur with the system, see Troubleshooting on page 3-4.
Male DIN
connector
Male DIN connector
Keyboard
connector
Power supply
(if required)
NOTE Interface cables vary depending on configuration. The connectors can be different than those illustrated in
Figure 8-1, but the steps to connect the scanner are the same.
