Zebra DS8108 User Manual

8 - 10 DS8108 Digital Scanner Product Reference Guide
Keyboard Map
The following keyboard map is a reference for prefix/suffix keystroke parameters. To program the prefix/suffix
values, see the bar codes on page 9-33.

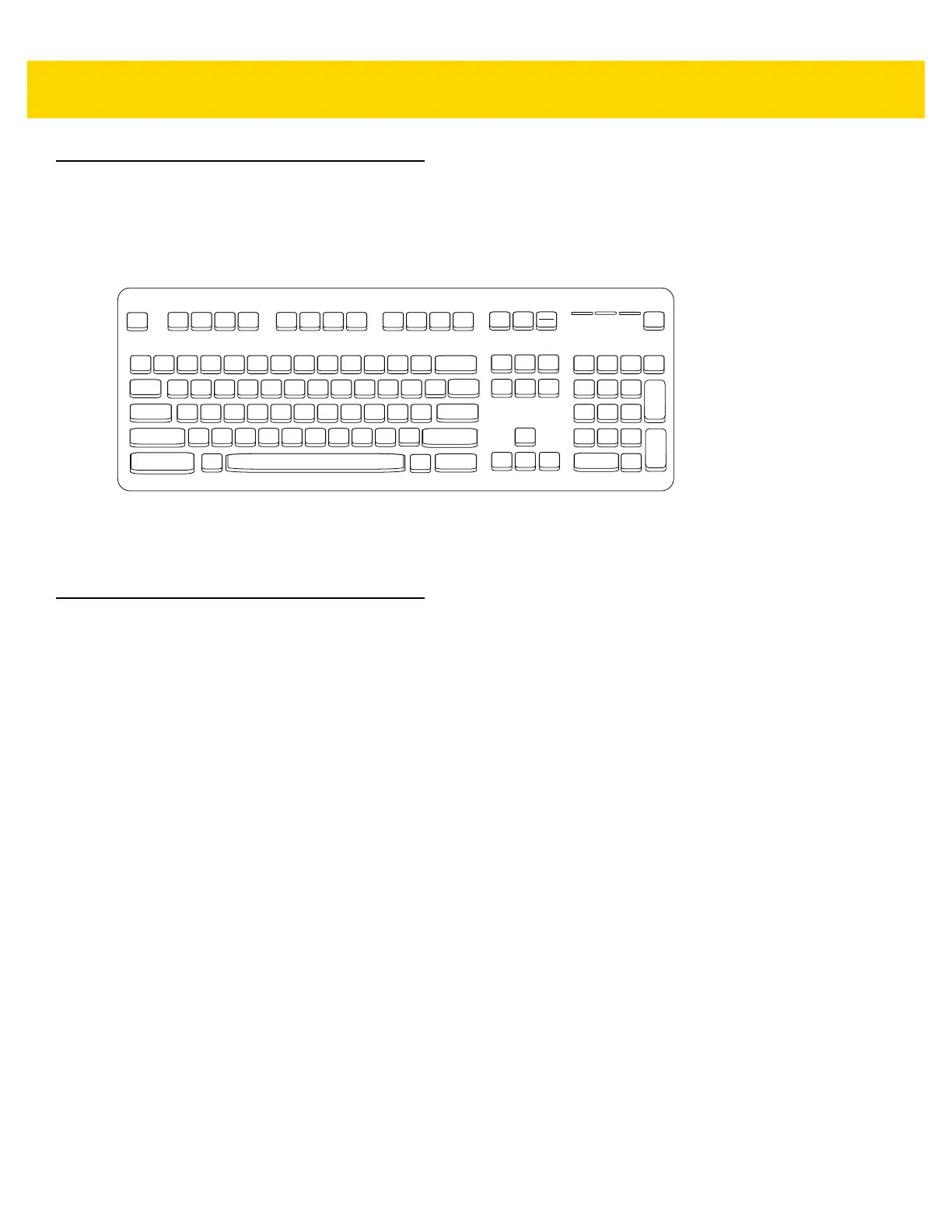

Figure 8-2 IBM PS2 Type Keyboard
ASCII Character Sets
See Appendix D, ASCII Character Sets for the following information:
• Table D-1, ASCII Character Set on page D-1
• Table D-2, ALT Key Character Set on page D-6
• Table D-3, GUI Key Character Set on page D-7
• Table D-4, PF Key Character Set on page D-9
• Table D-5, F Key Character Set on page D-10
• Table D-6, Numeric Key Character Set on page D-11
• Table D-7, Extended Key Character Set on page D-12
7013
7014 5001 5002 5003 5004 5005 5006 5007 5008 5009 5010
7013
5011
7010 7007
7006
7001
5012
7008
7009
7011
7012
7003
7002 7004 7005
7017 7016
7015
7018

Zebra DS8108 Specifications

General

Cables included	USB
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	5 V
Power consumption	450 mA
Power source type	-
PC connection	RS-232/USB
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP42
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	154 g
