Zebra DS8108

To Next Page

To Previous Page

Symbologies 11 - 53

I 2 of 5 Check Digit Verification

Parameter # 49

SSI # 31h

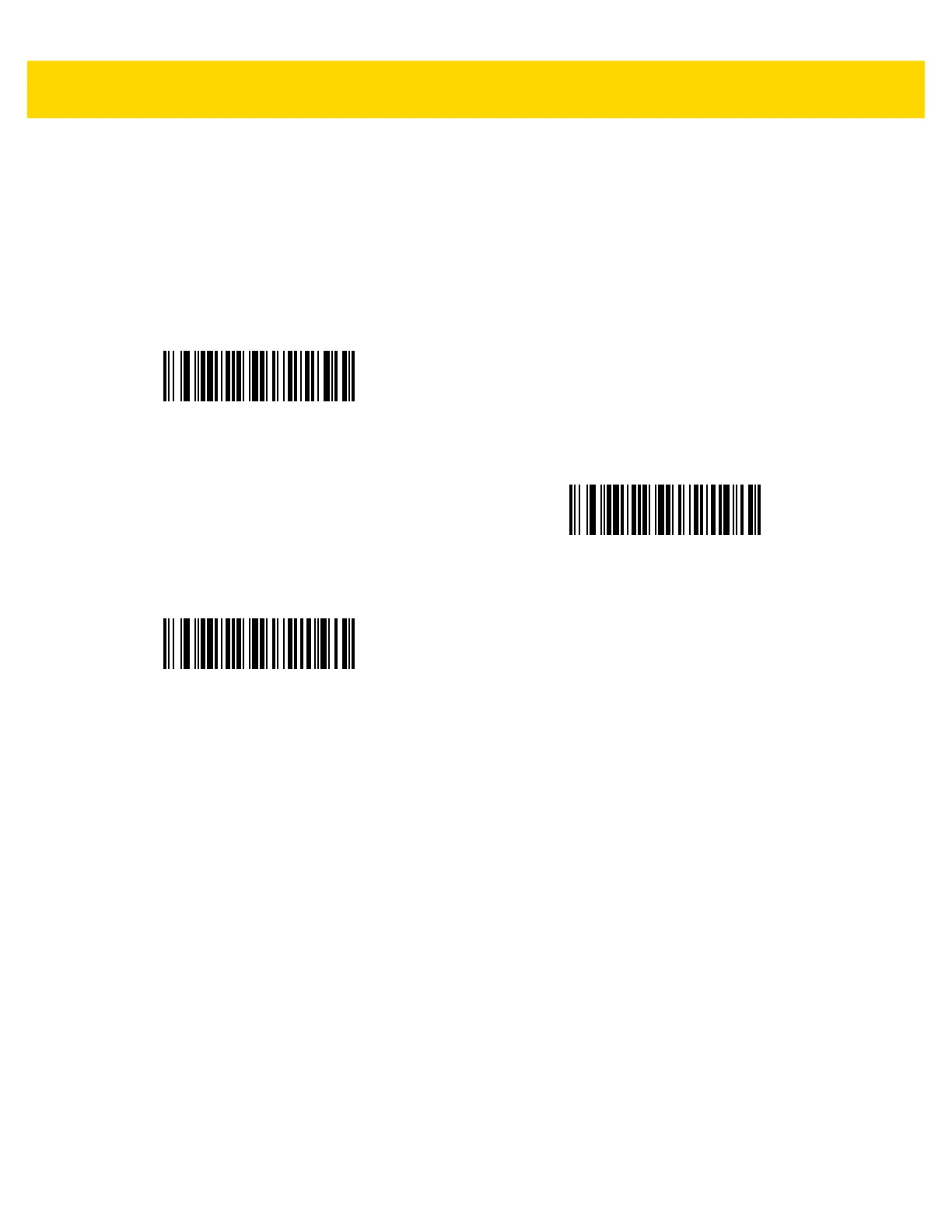

Scan one of the following bar codes to check the integrity of all I 2 of 5 symbols to verify the data complies with

either the specified Uniform Symbology Specification (USS), or the Optical Product Code Council (OPCC) check

digit algorithm.

*Disable

(0)

USS Check Digit

(1)

OPCC Check Digit

(2)
