Mounting the Stand (optional)
You can attach the base of the scanner’s stand to a flat surface using two screws or double-sided tape (not
provided).

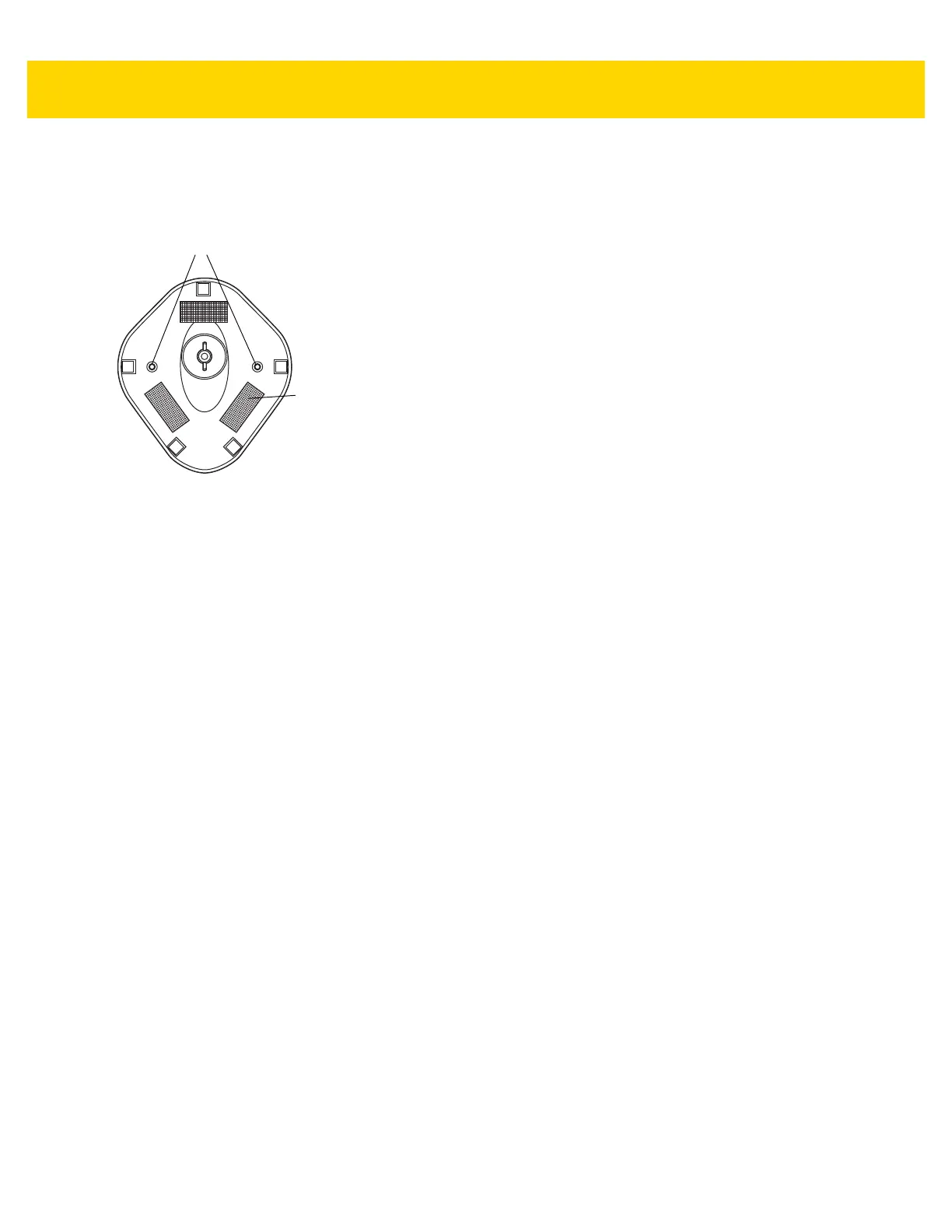

Figure 2-3 Mounting the Stand
Screw Mount
1. Position the assembled base on a flat surface.
2. Screw one #10 wood screw into each screw-mount hole until the base of the stand is secure (see Figure 2-3).
Tape Mount
1. Peel the paper liner off one side of each piece of tape and place the sticky surface over each of the three
rectangular tape holders.
2. Peel the paper liner off the exposed sides of each piece of tape and press the stand on a flat surface until it is
secure (see Figure 2-3).
Two screw-mount holes
Double-sided tape areas
(3 places)
dimensions = 1” x 2”)

Zebra DS8108 Specifications

General

Cables included	USB
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	LED
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Input voltage	5 V
Power consumption	450 mA
Power source type	-
PC connection	RS-232/USB
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
International Protection (IP) code	IP42
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	154 g
