Zebra DS8108

To Next Page

To Previous Page

11 - 50 DS8108 Digital Scanner Product Reference Guide

Transmit Code 11 Check Digits

Parameter # 47

SSI # 2Fh

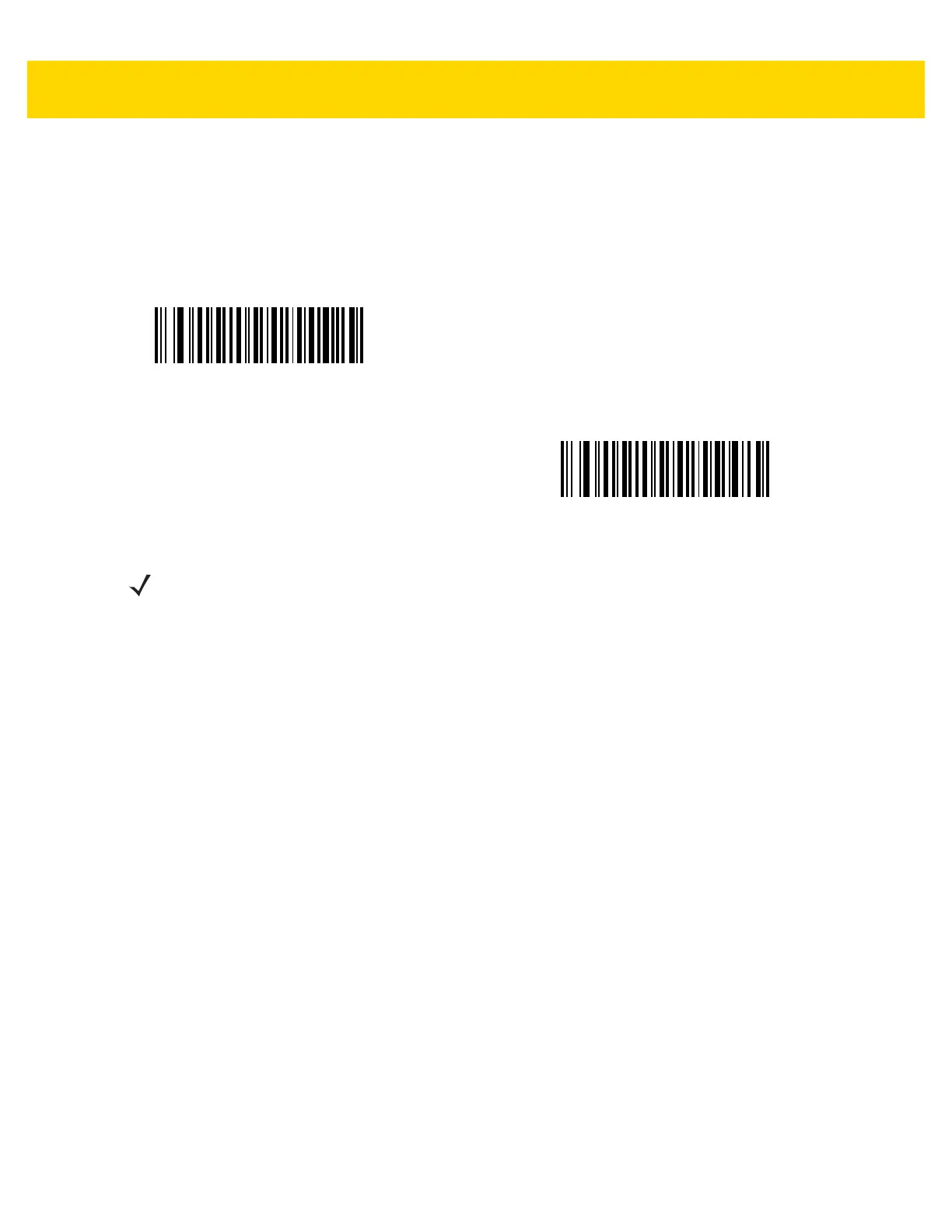

Scan one of the following bar codes to select whether or not to transmit the Code 11 check digit(s).

Transmit Code 11 Check Digit(s) (Enable)

(1)

*Do Not Transmit Code 11 Check Digit(s) (Disable)

(0)

NOTE Code 11 Check Digit Verification must be enabled for this parameter to function.
