2 - 4 DS8108 Digital Scanner Product Reference Guide
Scanning
The DS8108 digital scanner is in Hands-free (presentation) mode when it is placed in the Intellistand. In this mode,
the digital scanner operates in continuous (constant-on) mode, where it automatically decodes a bar code
presented in its field of view.
When the digital scanner is not used for a user-definable period of time, it enters a low power mode in which the
LEDs are turned off or illumination blinks at a low duty cycle until the digital scanner detects an image change (e.g.
motion).
Scanning in Presentation (Hands-free) Mode
The optional stand adds greater flexibility to DS8108 scanning operation. When the scanner is seated in the
scanner cup, the scanner’s built-in sensor places the scanner in Hands-free (presentation) mode. When the
scanner is removed from the stand, it automatically switches to its programmed hand-held triggered mode.
Assembling the Stand
To assemble the stand:
1. Unscrew the wing nut from the bottom of the one piece scanner “cup.”

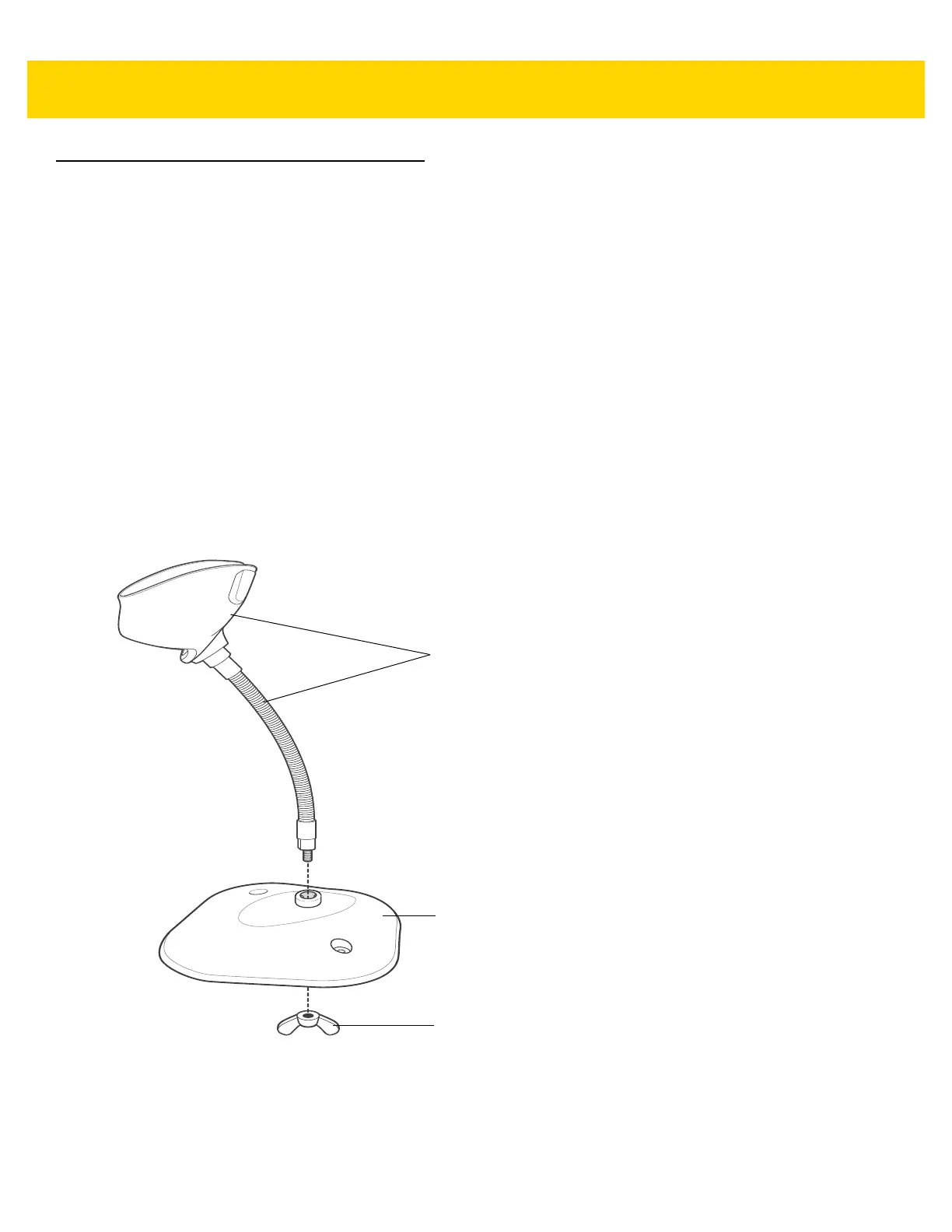

Figure 2-2 Assembling the Stand
2. Fit the bottom of the gooseneck piece into the opening on the top of the stand base.
3. Tighten the wing nut underneath the base to secure the cup and neck piece to the base.
4. Bend the neck to the desired position for scanning.
Stand base
Wingnut
One piece scanner
“cup” with flexible
“gooseneck”
