Symbologies 11 - 9

UPC/EAN/JAN

UPC-A

Parameter # 1

SSI # 01h

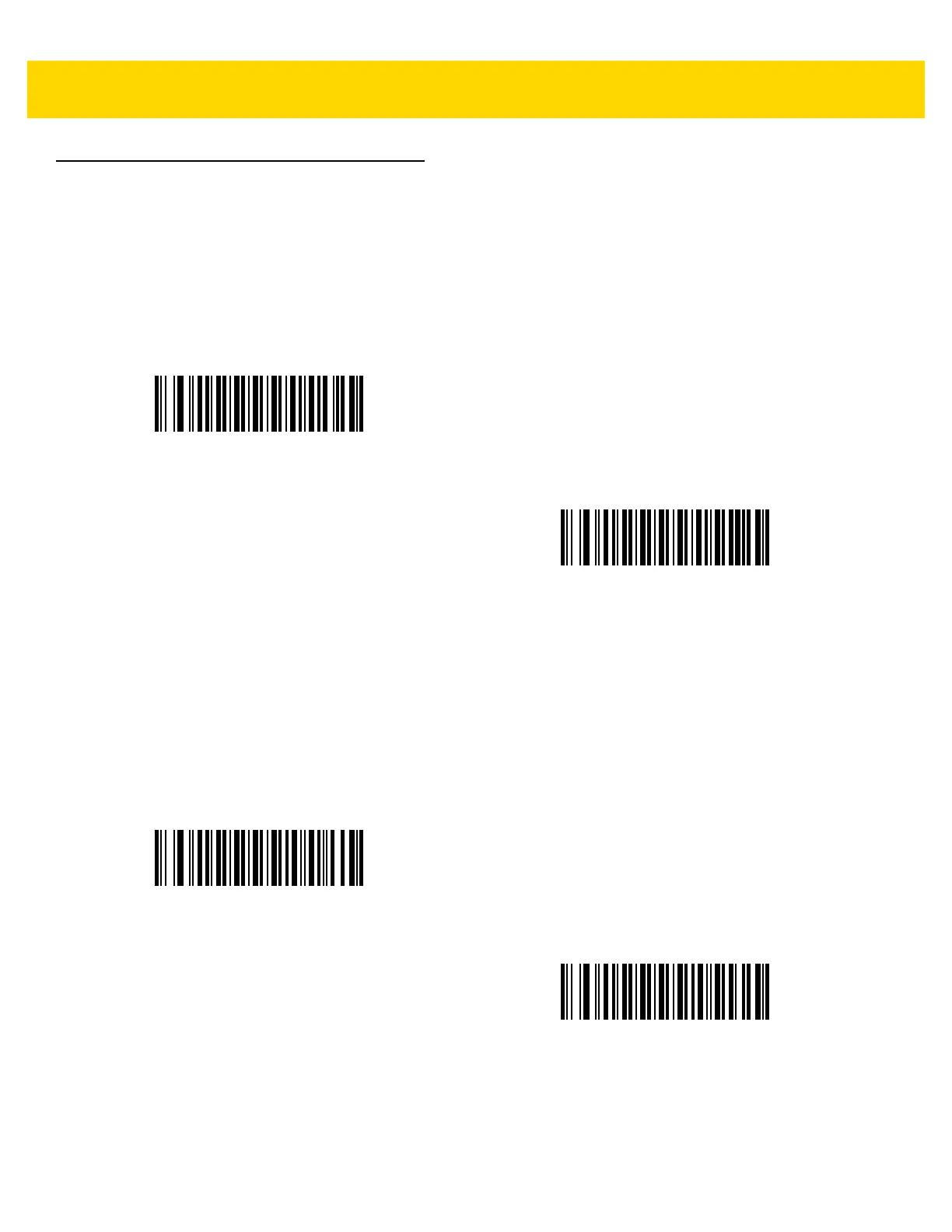

Scan one of the following bar codes to enable or disable UPC-A.

UPC-E

Parameter # 2

SSI # 02h

Scan one of the following bar codes to enable or disable UPC-E.

*Enable UPC-A

(1)

Disable UPC-A

(0)

*Enable UPC-E

(1)

Disable UPC-E

(0)
