2 - 18 TC70x Integrator Guide

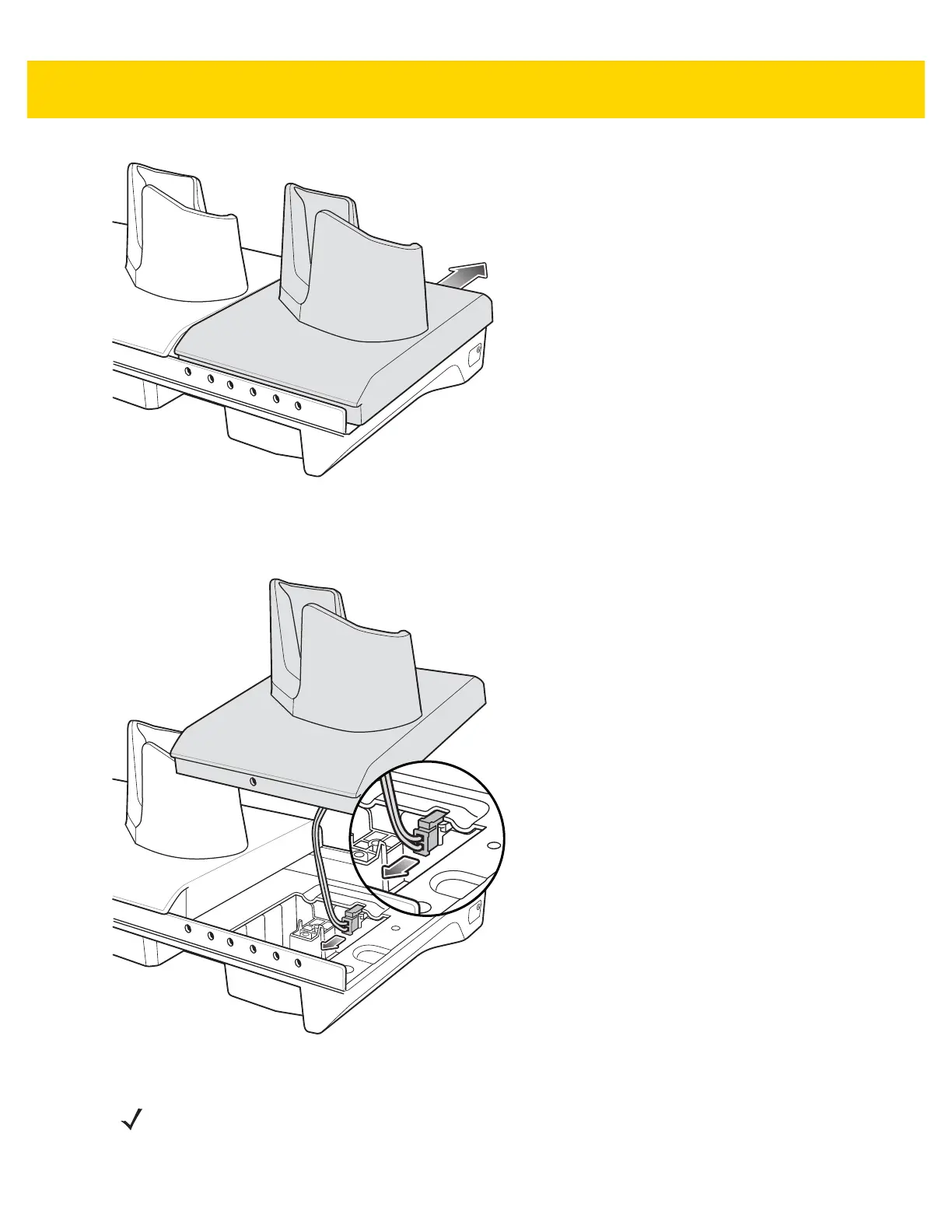

Figure 2-17 Remove Cup
4. Carefully lift the cup up to expose the cup power cable.
5. Disconnect the cup power cable.
Figure 2-18 Disconnect Cup Power Cable
6. Connect the Battery Adapter power cable to the connector on the cradle.
NOTE Place power cable into adapter to avoid pinching cable.
