Zebra TC70x - Page 54

2 - 28 TC70x Integrator Guide

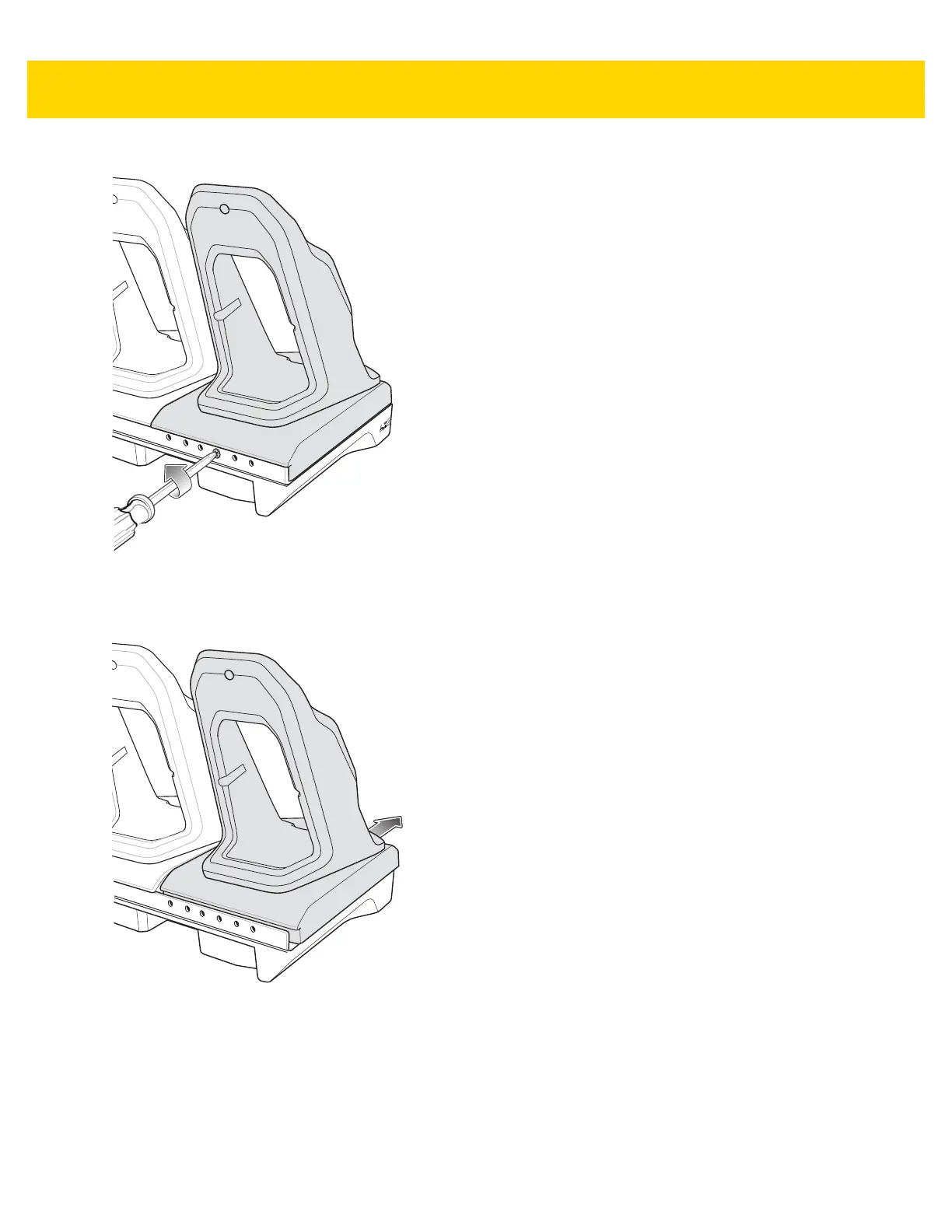

Figure 2-30 Remove Screw
3. Slide the cup to the front of the cradle.
Figure 2-31 Remove Cup
4. Carefully lift the cup up to expose the cup power cable.
5. Disconnect the cup power cable and USB cable.
