2 - 30 TC70x Integrator Guide

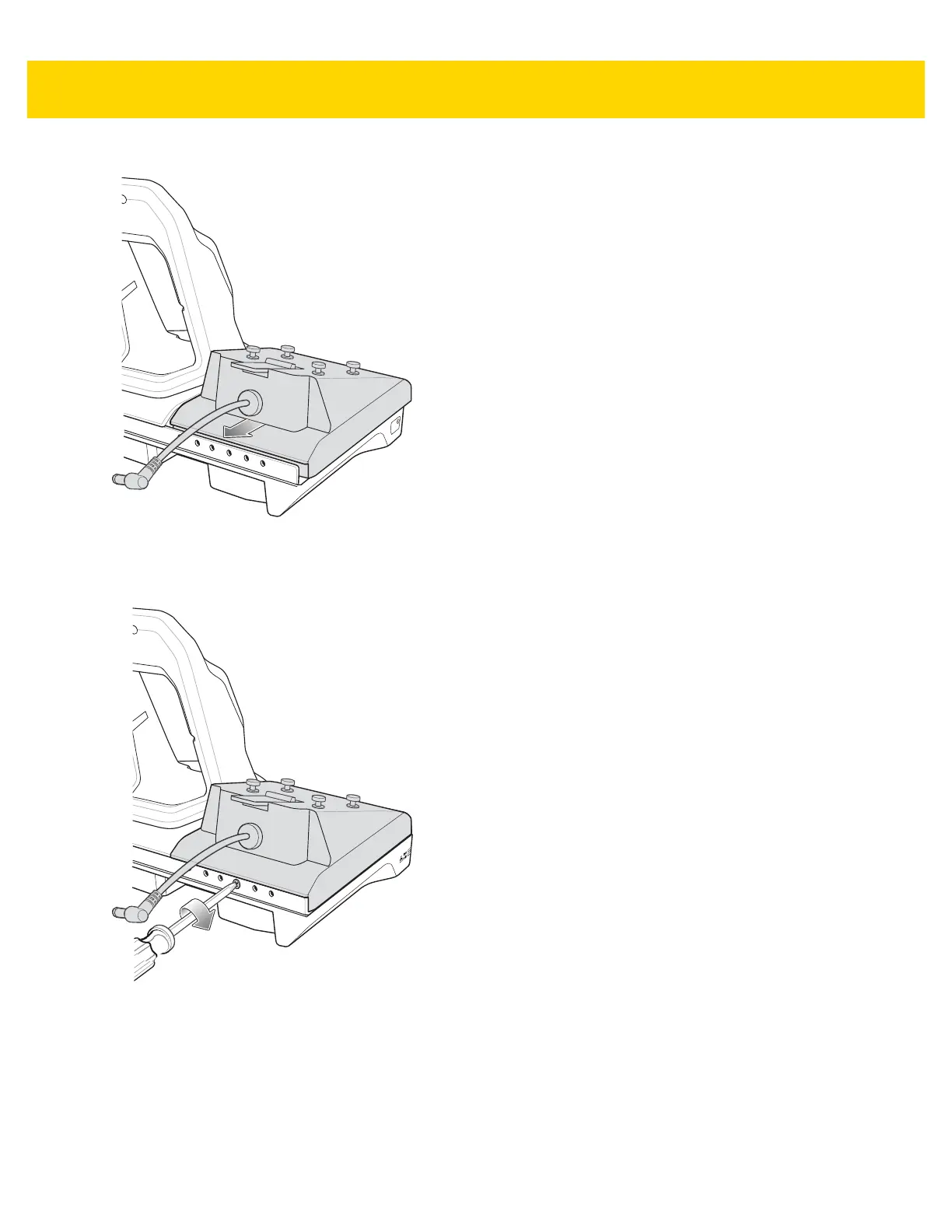

Figure 2-34 Install Adapter
8. Using a Phillips screwdriver, secure adapter to cradle base with screw.
Figure 2-35 Secure adapter to Cradle
9. Align mounting holes on the bottom of the 4-Slot Battery Charger with the stubs on the Battery Adapter.
