2 - 40 TC70x Integrator Guide

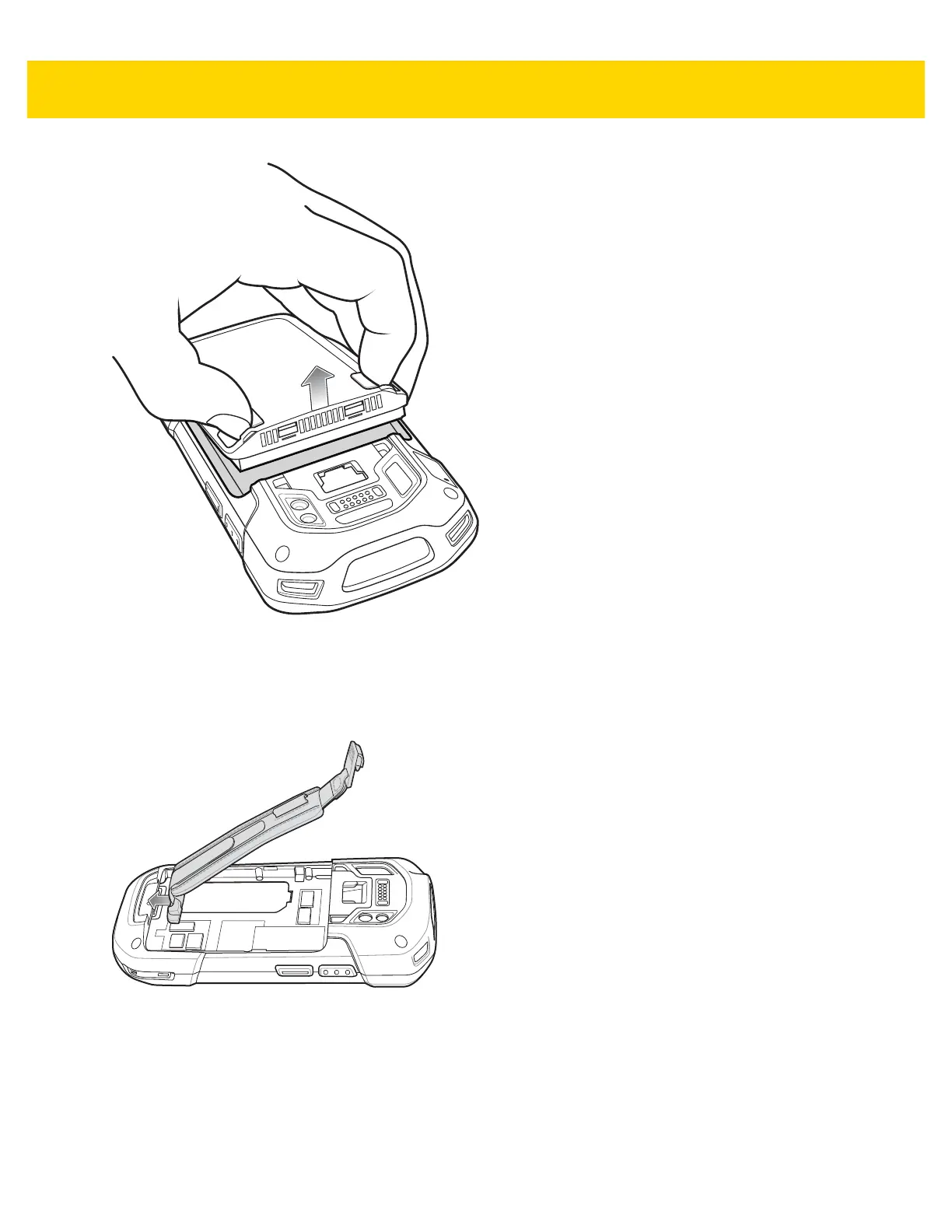

Figure 2-50 Lift the Battery
7. Remove the battery.
8. Remove the hand strap plate from the hand strap slot.
9. Insert the replacement hand strap plate into the hand strap slot.
Figure 2-51 Insert Hand Strap
10. Insert the battery, bottom first, into the battery compartment.
