Description of the CMM
61211-1020202 CenterMax Operating Instructions
Identification of a CMM
The CenterMax is identified by the size of its working range. This
range is specified by its length in the x, y and z axes.
The working range does not correspond to the measuring range.
Please refer to the technical data for more information on the measur-
ing range.

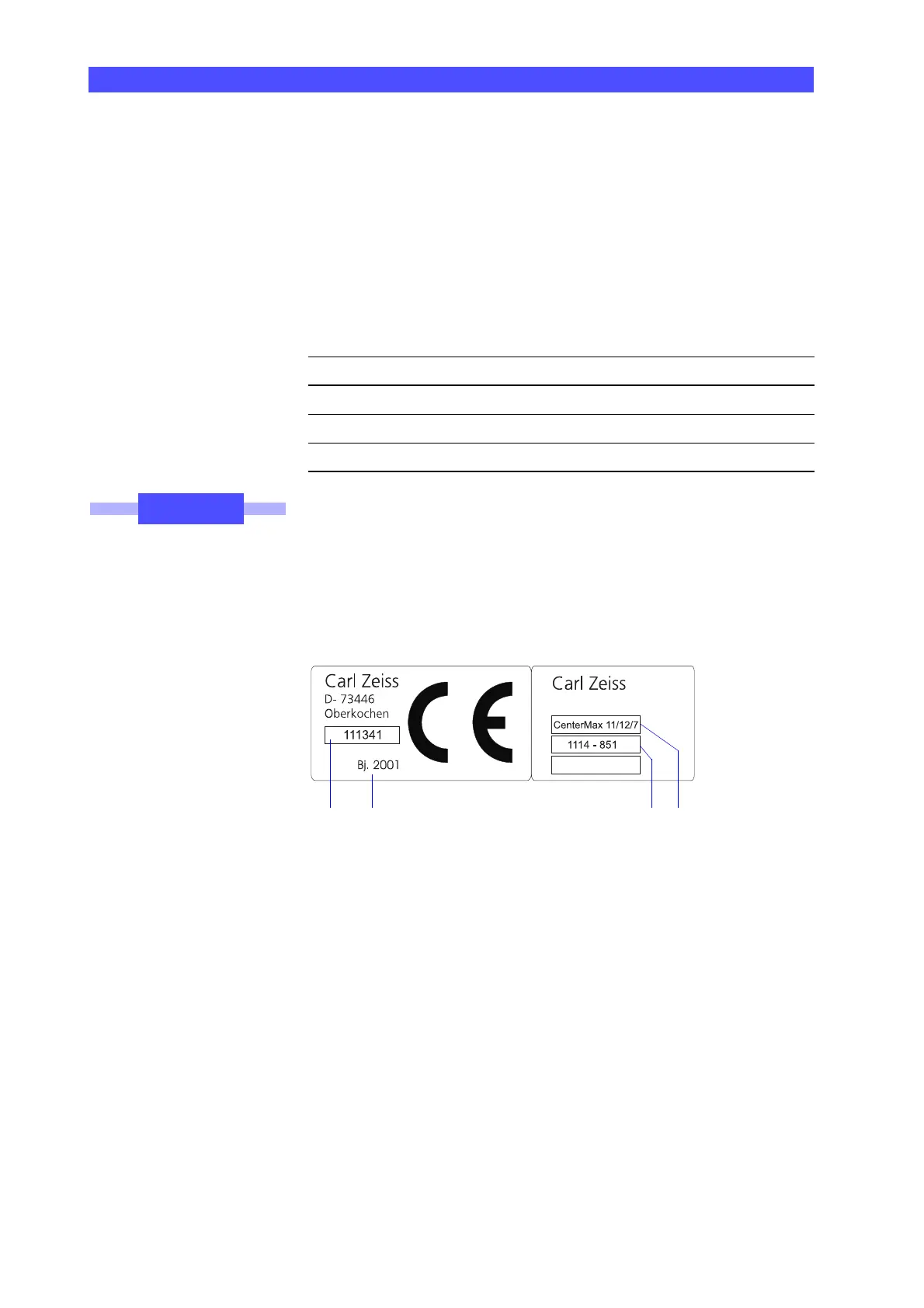

Typ e pl a te The identification of your CMM is given on the type plate. The type
plate is located on the front side of the measuring table.
1 Serial number
2 Year of manufacture
3 Number of the CMM type
4 Series and identification of the CMM type.
Identification of CenterMax:
Identification: 11/12/7
Ref. no. Working range
11 x: 1100 mm
12 y: 1200 mm
7z:700 mm
