2-4
Description of the CMM
61211-1020202 CenterMax Operating Instructions
Components and their functions
Bridge

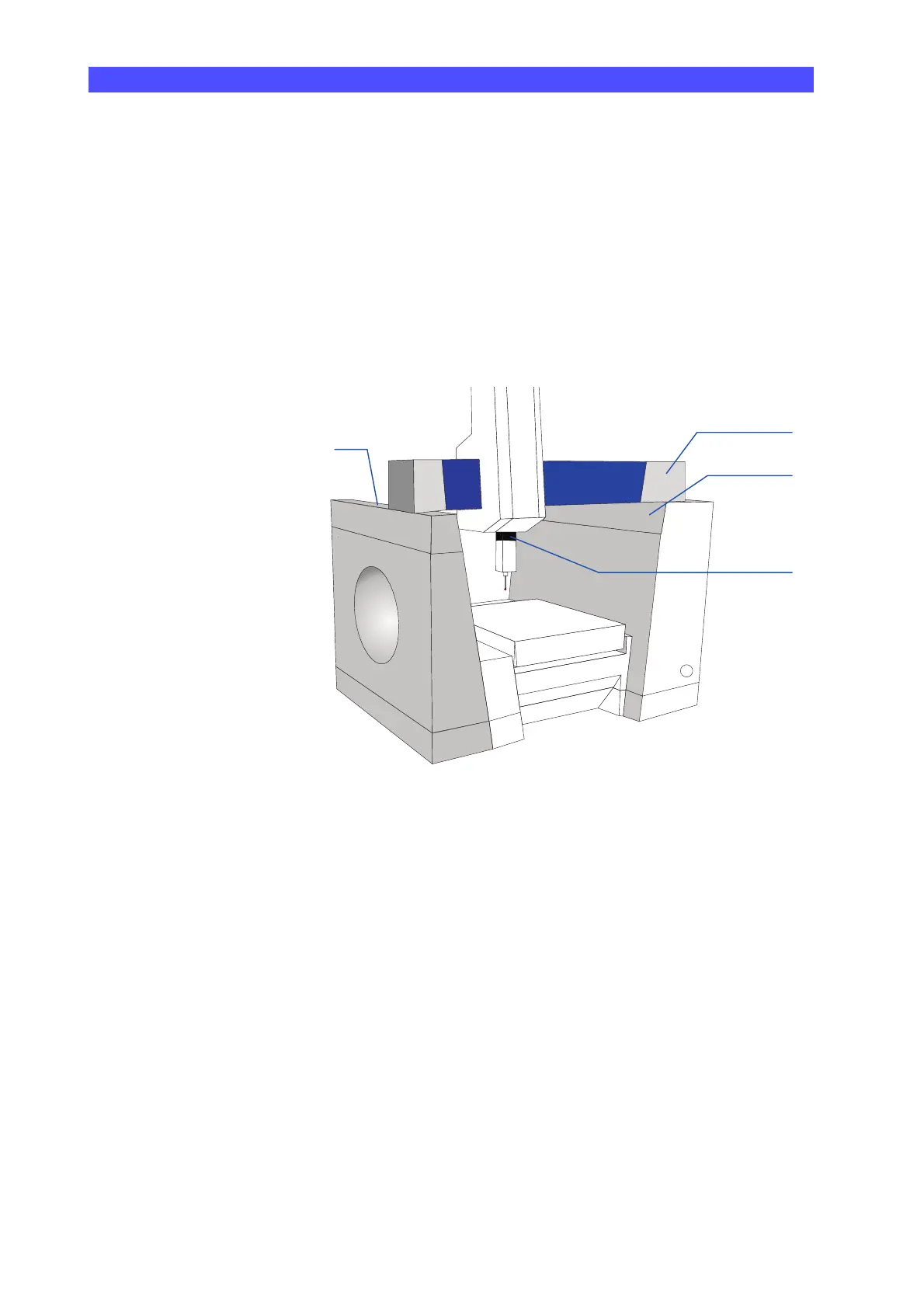

The CenterMax is a bridge coordinate measuring machine. The bridge
is composed of a crossbeam and two guideways. The quill is guided
on the crossbeam of the x-bridge.
1 Crossbeam
2 Drive side and guideway side
3Quill
4Guideway.
Measuring table
The workpieces to be measured are placed on the measuring table.
Threaded holes Threaded holes are provided in the measuring table. These are used to
fasten workpieces and calibration tools on the measuring table. The
threaded holes are distributed on the measuring table. For more infor-
mation, please refer to the document "Installation Instructions“.
1
2
3
4
