The maximum weight of an aggregated braked trailer or semi-trailer must not exceed the value

specified on the data plate of the tractor and the value specified in the technical certificate of the

traktor. The maximum permissible speed of the set results from the maximum permissible speed of

the slower vehicle in the set.

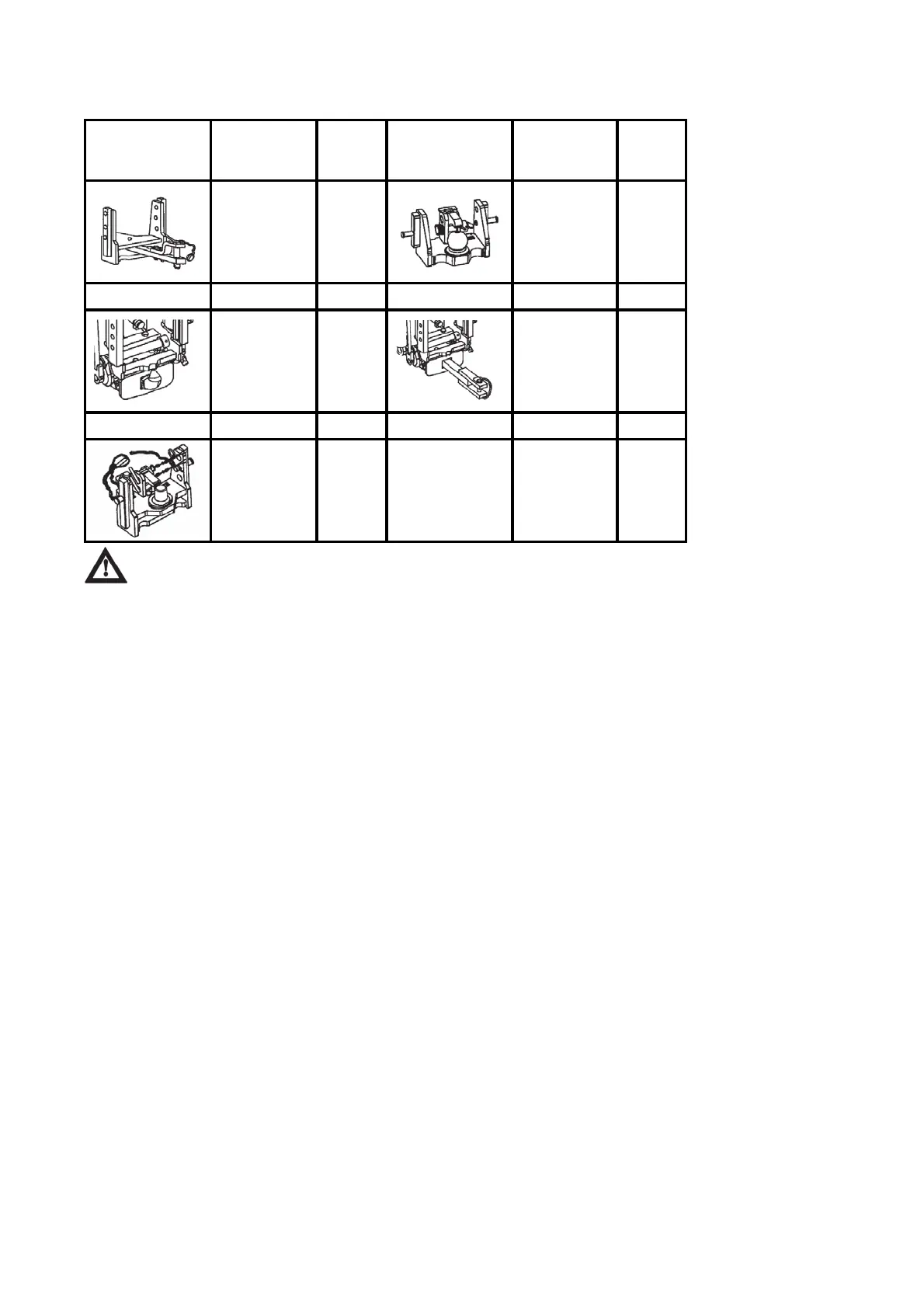

Hitch type Permissible

vertical static

load

Hitch pin

(ball) Ø

Hitch type Permissible

vertical static

load

Hitch

(ball) Ø

736 kg

31 mm

2 000 kg

80 mm

3 000 kg

47 mm

1 200 kg

31 mm

Fixed pin

2,000 kg

44,5 mm

TRANSPORTATION
