ZONARE Z.ONE PRO - User Interface

z.one
pro
Service Manual
Page 207 of 217

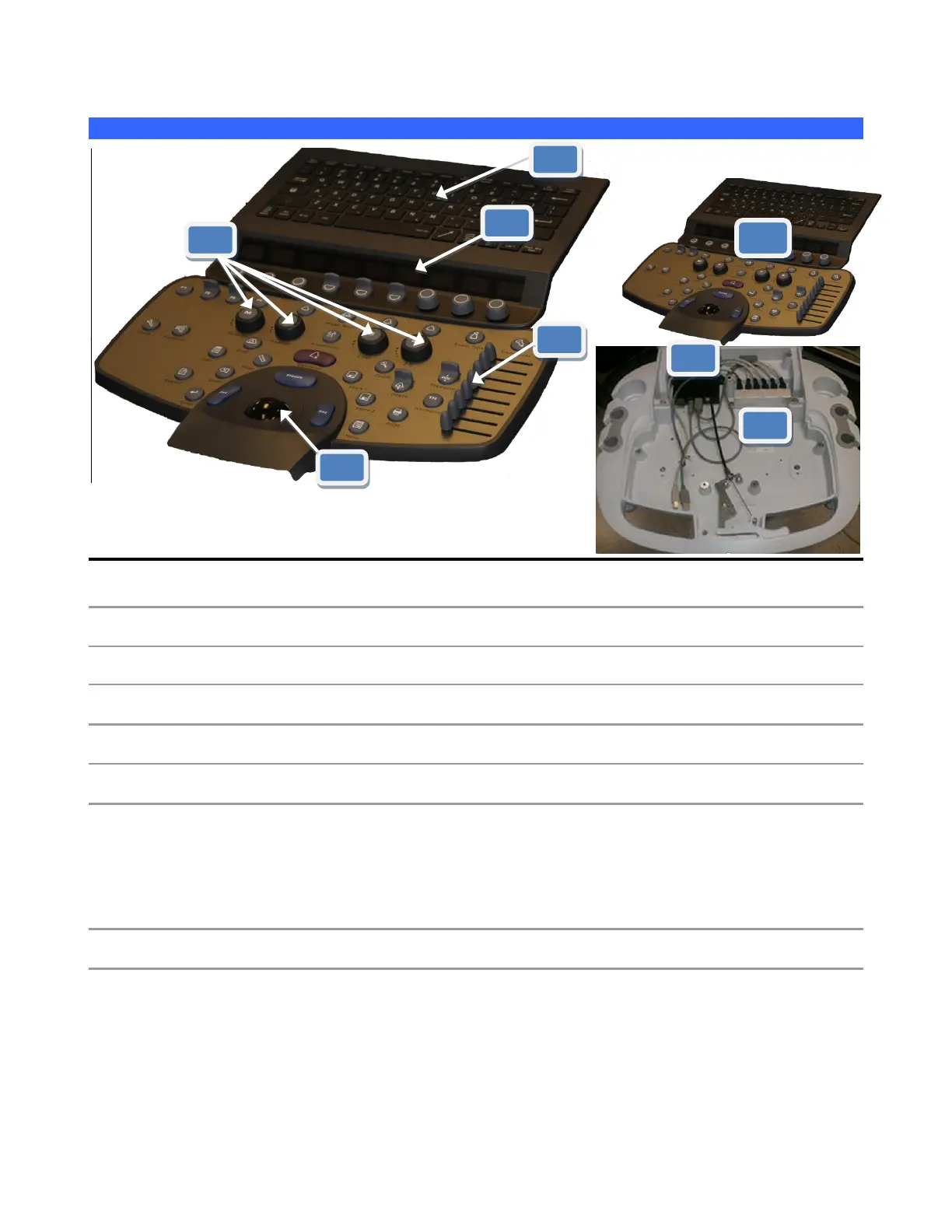

User Interface
Number Part Number Description
57 86700-00 Assy, User Interface, z.one
pro
58 86901-00 Assy, OLED2 Board
59 86597-00 Assy, QWERTY Low Profile
60 86596-00 Assy, Trackball Only, z.one
pro
61 88032-00 Assy, Power Distribution (under UI)
62 34570-00 USB Hub, z.one
pro
(under UI)
63 33432-00 Knobs, Outer Mode Key, z.one
pro
33453-00 Knobs, Inner Mode Cap, M-mode, z.one
pro
33454-00 Knobs, Inner Mode Cap, PW-mode, z.one
pro
33455-00 Knobs, Inner Mode Cap, C-mode, z.one
pro
33456-00 Knobs, Inner Mode Cap, B-mode, z.one
pro
64 33431-00 DGC Caps
60
58
63
64
59
57
62
61
