ZONARE Z.ONE PRO - Power Module

z.one
pro
Service Manual
Page 210 of 217
89 34311-30 Cable, Pwr Dist Bd (PDB) to Display, Pwr, z.one
pro
90 34313-00 Cable, Pwr Dist Bd (PDB) to UI, Pwr, z.one
pro
91 34311-20 Cable, Pwr Dist Bd (PDB) to DVD, Pwr, z.one
pro
92 33905-00 Cable, USB, UI to DVD, z.one
pro
93 85170-00 Cable, Ethernet Extension, z.one
pro

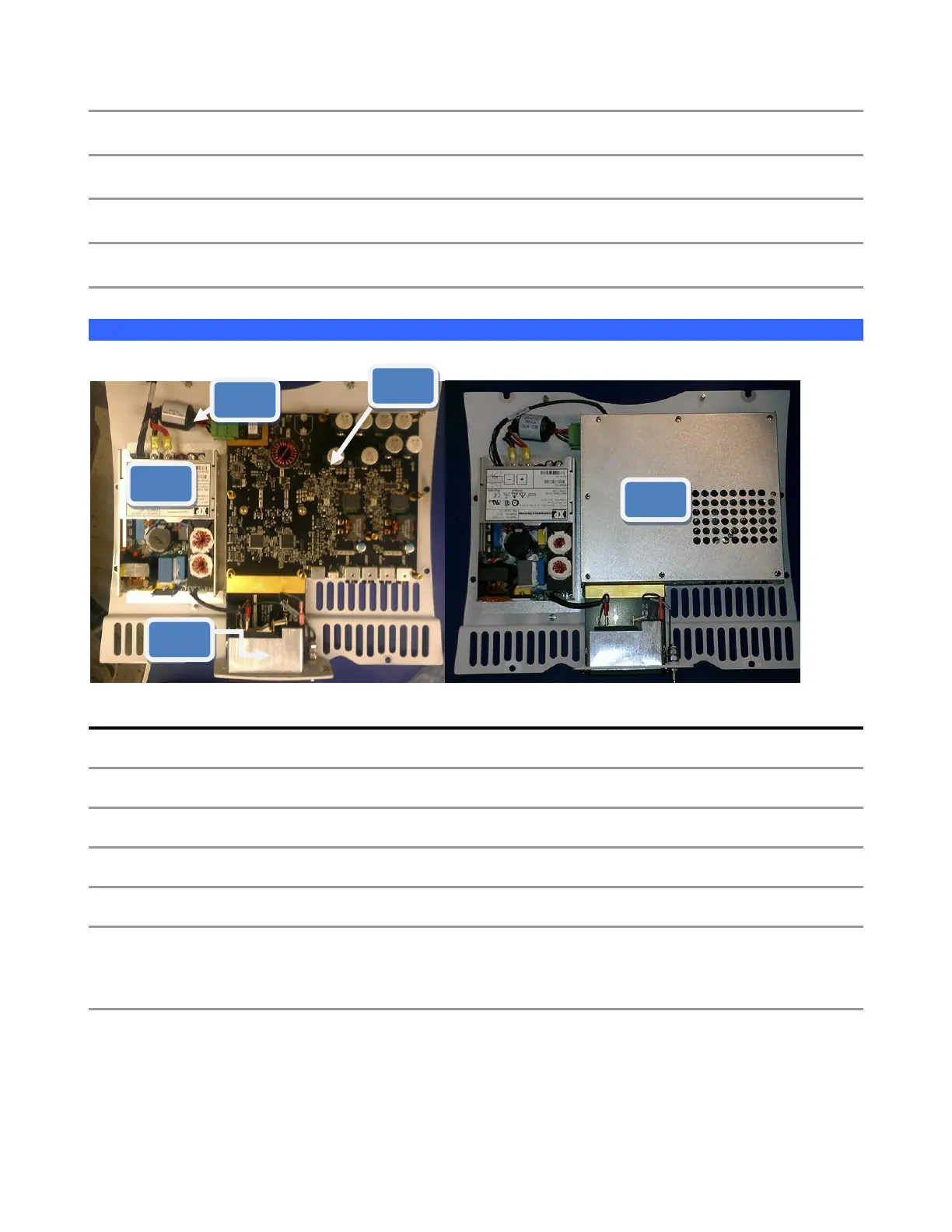

Power Module
Number Part Number Description
95 88012-00 Assy, Power Supply Module
96 85155-00 Assy, DC Board
97 34093-00 Assy, AC Board
98 34436-00 Assy, AC Inlet
99 85047-00 Cable, AC to DC supply
100 34533-00 Cable, Power Cord, Latching, 115V
34546-00 Cable, Power Cord, Latching, UK
34547-00 Cable, Power Cord, Latching, 230V
99
97
98
95
96
