15. Remove all protective plastic wrap and foam packaging materials.
16. If the trackball has been shipped separately (will be in a foam “basket” in the gel/transducer holder:

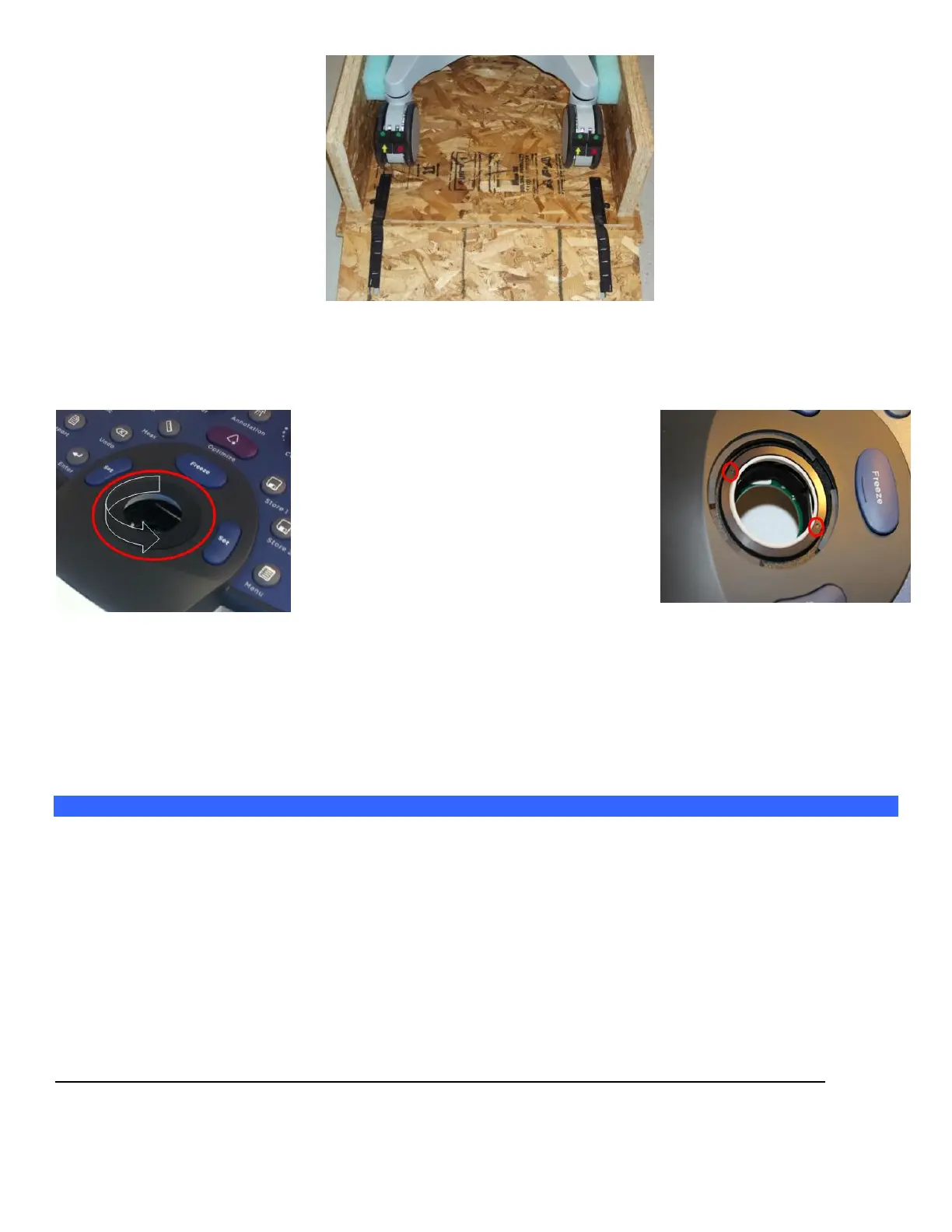

Remove the trackball cover ring from
the trackball assembly by applying
pressure with your fingers and turning
counter clockwise. This will expose the
retention ring which is removed by also
turning counter clockwise. It should
come out easy with finger pressure, but
if it does not, you can use 2 pens (or
other blunt objects) in the detents on
either side of the retention ring for
leverage.
Place the trackball in the assembly and reverse the steps to install the retention ring and
trackball cover ring. Note: The retention ring has very thin threads, take care not to damage
them during installation.
17. Inspect the entire z.one
pro
system for damage, paying close attention to the LCD display on the Cart.
18. Move the z.one
pro
system to the installation area.
Mechanical Inspection
Ensure wheels and brakes function properly
Raise and lower the Cart height adjuster (pull release lever located on the right of the system), to
verify smooth operation and positive locking
Ensure the LCD display monitor rotates and adjusts properly
Ensure the z.one
pro
module is securely attached in the Cart.
Immediately report any mechanical discrepancies to ZONARE.
