11 FUNCTIONAL DESCRIPTIONS
System Capabilities
 64-hardware - 128/192-synthetic channel system
 Supports B-Mode, M-Mode, Color, Power Doppler, PW
 17” full-screen, 1280 x 1024 resolution, Display
 Full-sized alpha-numeric user keyboard
 Discrete function user controls
 Software mode assignable user controls
 User programmable keys
 Integrated stereo speakers (located in display)
 External I/O device connectivity
o Ethernet 10/100Base-T
o eSata/USB Connector
o USB port
o HDMI Connector
 Internal solid-state drive (image archive)
 Internal CD/DVD Multi-Recorder
 On-board Z-Pack Battery Module (Option)
Major FRUs

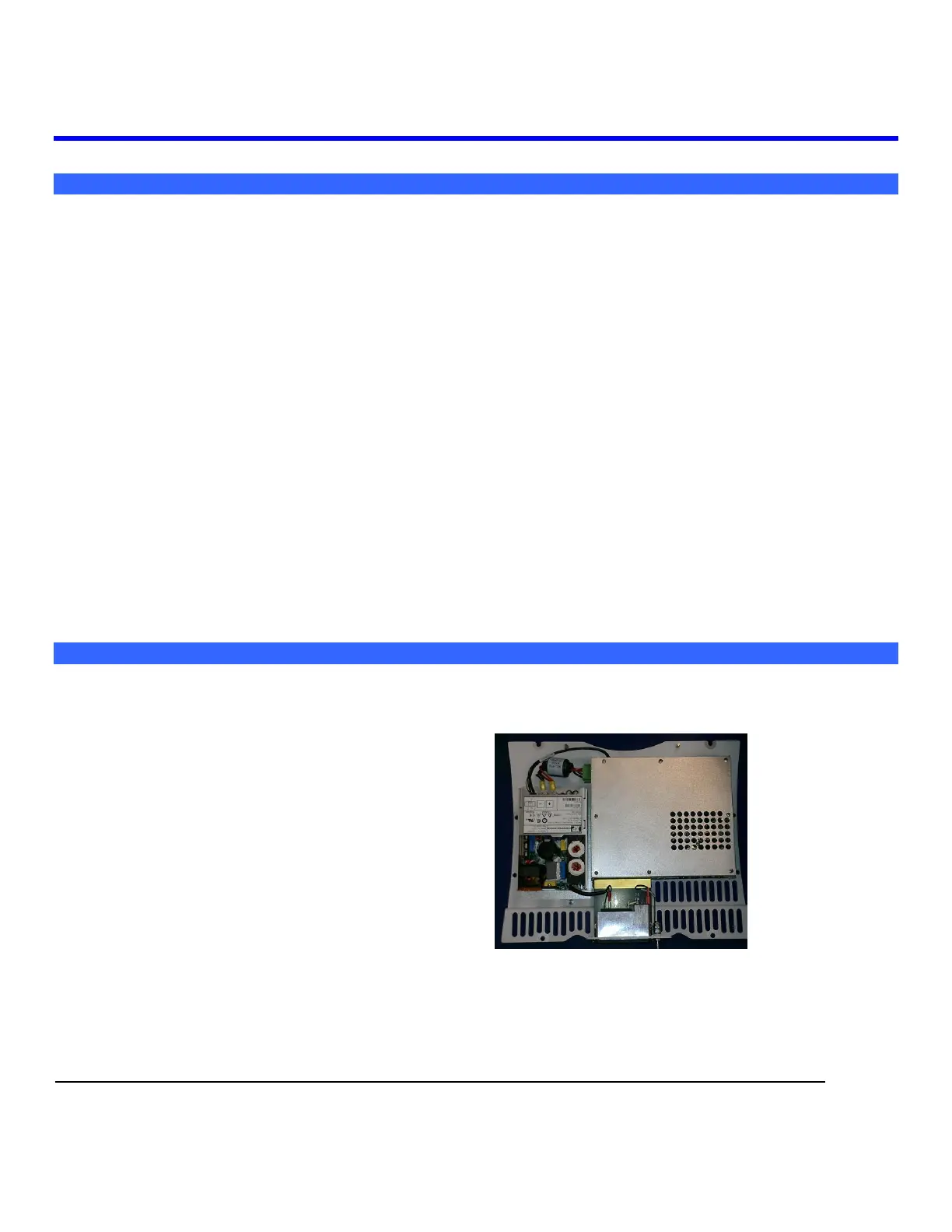

11.1.1 POWER MODULE ASSY, Z.ONE
pro
P/N: 88012-00
 VCart (power for module), +12V
 VDock (Monitor, UI, DVD, Printer), +12V
 Z-PAK battery charging circuitry
 Z-PAK battery fuel gauge
 PIC Power Supply Controller logic
 External system status LEDs (7)
