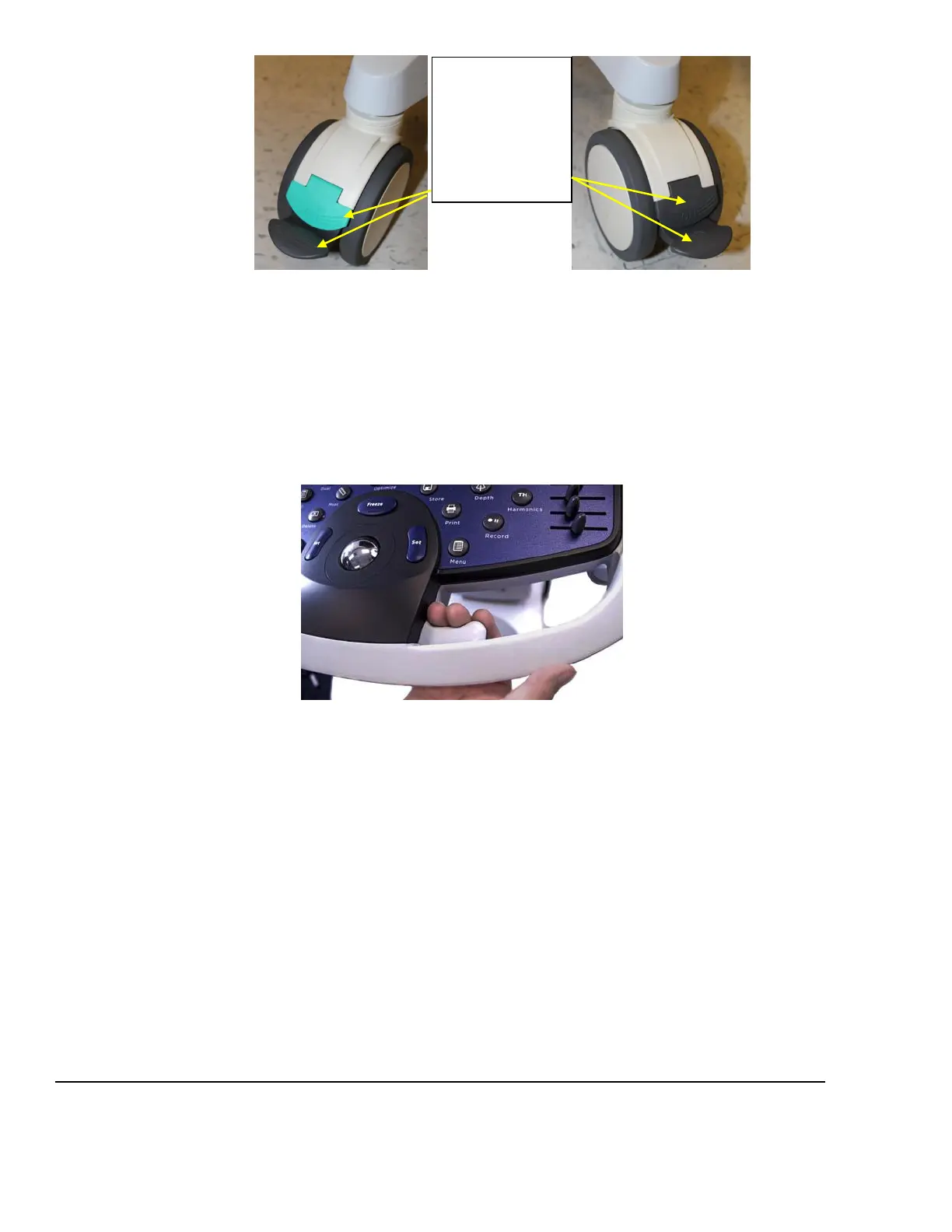

Figure 6.1: Directional/swivel Caster Figure 7.2: (X3) Breaking Caster
11.1.6 HEIGHT ADJUSTMENT MECHANISM
The system utilizes a gas spring mechanism that enables the user to optimize the vertical position (height)
of the user interface panel and LCD Display for optimum comfort and viewing during operation.
To raise or lower the unit, pull inward on the release lever, located on the inside of the right-front handle
assembly on the system. This will allow the height of the system to be adjusted. Releasing the spring-
loaded release lever locks the assembly into the current vertical position.
Figure 8: Height Adjustment Mechanism
Press lower tab
to lock and
press upper tab
to release
break/direction
feature.
