(weight)
Operational
Operating time duration
(fully charged)
Up to 1.5 hours
Physical
(dimensions)
Height
75 mm (3 in.)
Width
260 mm (10 in.)
Depth
355 mm (14 in.)

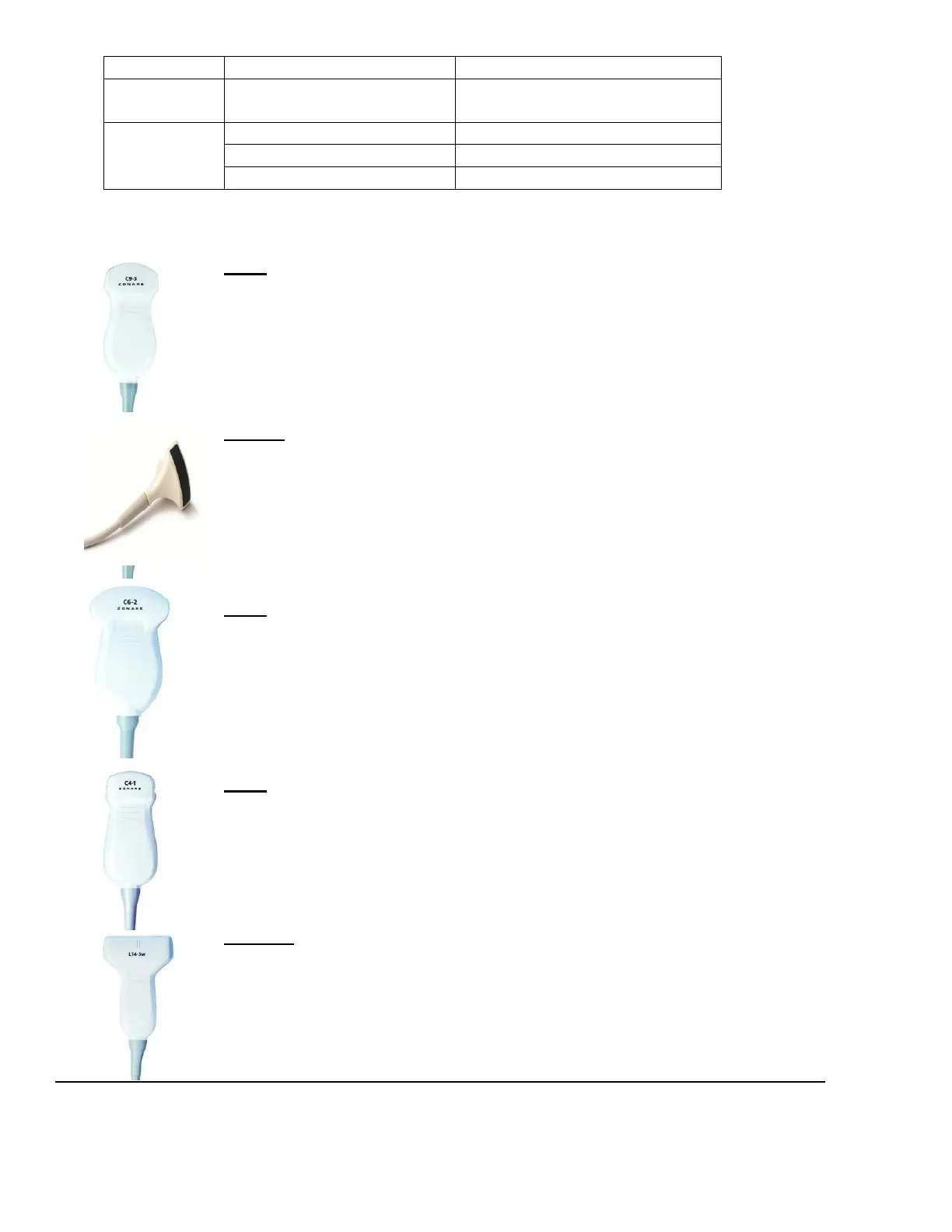

Transducers
C9-3 .......................(I.D. 130)
 Penetration Depth 18 cm
 Number of Elements 128
 Field of View 67 degrees
 Radius of Curvature 33 mm
 Ultrasound Bandwidth 9-3 MHz
C9-3sp ....................(I.D. 131)
 Penetration Depth 18 cm
 Number of Elements 128
 Field of View 67 degrees
 Radius of Curvature 33 mm
 Ultrasound Bandwidth 9-3 MHz
C6-2 .......................(I.D. 129)
 Penetration Depth 24 cm
 Number of Elements 128
 Field of View 65 degrees
 Radius of Curvature 50 mm
 Ultrasound Bandwidth 6-2 MHz
C4-1 .......................(I.D. 2)
 Penetration Depth 30 cm
 Number of Elements 64
 Field of View 80 degrees
 Ultrasound Bandwidth 4-1 MHz
L14-5W ................ (I.D. 71)
 Penetration Depth 10 cm
 Number of Elements 192
 Field of View 55 mm
 Ultrasound Bandwidth 14-5 MHz
