Zte ZXR10 2900E Series - Syslog Configuration; Figure 5-29 VLAN Mapping Configuration Instance

Chapter5ServiceConguration
Theport1isoncustomernetwork,andtheport24isonserviceprovidernetwork,see

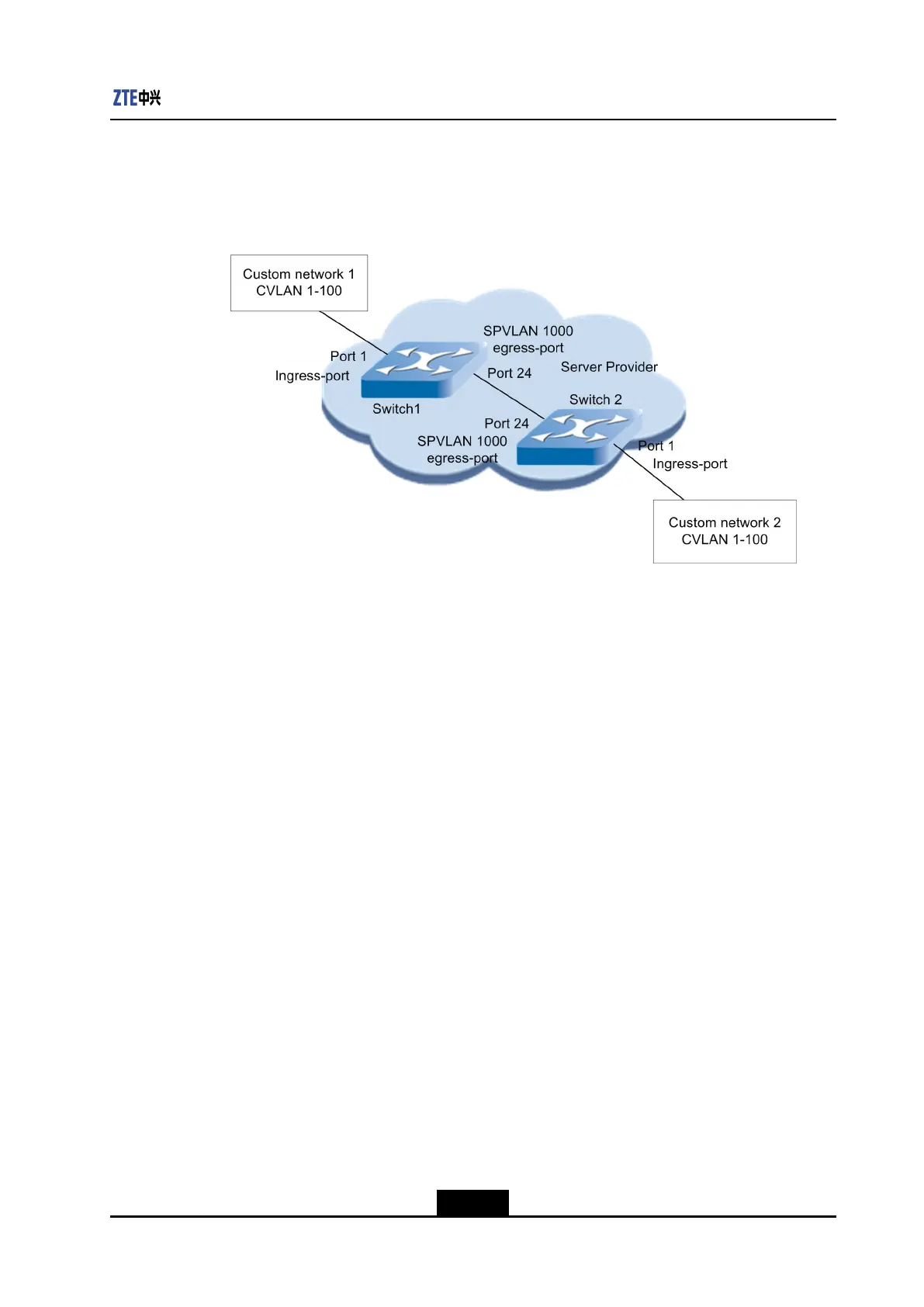

Figure5-29.Mapthepacketsreceivedfromport1,andwhoseCVLANsarebetween
1-100,toSPVLAN1000.
Figure5-29VLANMappingCongurationInstance
Switch1andSwitch2areconguredinthesameway.UseSwitch1asanexample.
lCongurationProcedure
ThefollowingexampleshowshowtoconguretheVLANMappinginstance.
zte(cfg)#setvlan1-100,1000addport1,24tag
zte(cfg)#setvlan1-100,1000enable
zte(cfg)#setvlanmappingsession1customer-port1customer-vlan1-100
uplink-vlan1000
lCongurationVerication
ThefollowingexampleshowshowtoshowtheSVLANinstance.
zte(cfg)#showvlanmapping
Sessionnumber:1
CustomerPort:1
CustomerVlanList:1-100
UplinkVlan:1000
5.24SyslogConguration
SyslogOverview
TheSyslogprotocolisanimportantpartofEthernetswitchandistheinformationjunction
centerofsystemsoftwaremodule.Syslogmanagesmostofimportantinformationoutput
andclassiesthemindetail,whichlterstheinformationeffectivelyandprovidesastrong
supportfornetworkadministratorsanddevelopmentengineersinmonitoringnetwork
operationstatusanddiagnosingnetworkfaults.
5-89
SJ-20130731155059-002|2013-11-27(R1.0)ZTEProprietaryandCondential
