ZXR102900ESeriesCongurationGuide
zte(cfg)#cfmenable
zte(cfg)#createcfmmd-session1namezte_1level5
zte(cfg)#createcfmmd-session1ma-session1namezte_zte_1
zte(cfg)#cfmmd-session1ma-session1primary-vlan100
zte(cfg)#createcfmmd-session1ma-session1mep-session1mep-id2
directiondown
zte(cfg)#cfmmd-session1ma-session1mep-id2stateenable
zte(cfg)#cfmmd-session1ma-session1mep-id2ccm-sendenable
zte(cfg)#cfmmd-session1ma-session1mep-id2ccm-receiveenable
zte(cfg)#cfmmd-session1ma-session1mep-id2assignport4
zte(cfg)#createcfmmd-session1ma-session1rmep-session2rmep-id1
remote-mac00.d0.d0.c0.00.01
zte(cfg)#cfmmd-session1ma-session1mep-id1ccm-receiveenable
zte(cfg)#cfmmd-session1ma-session1mep-id2relate-tormep-id1
zte(cfg)#cfmmd-session1ma-session1mep-id2one-lm(two-lm)enable
lCongurationVerication
LMonbothendsisautomaticallyperformedbasedontheCCMconguration.While
LMononeendisperformedaftermanuallytriggeringonS1orS2:
zte(cfg)#cfmmd-session1ma-session1mep-id1(2)one-lmsend-packet
ViewthemeasurementresultbyusingthecommandfordisplayingMEPinformation
thatisprovidedby802.1ag.
DMNetworkConguration
lCongurationDescription
ThenetworkcongurationisillustratedbyusingthenetworkinstanceinFigure5-58.

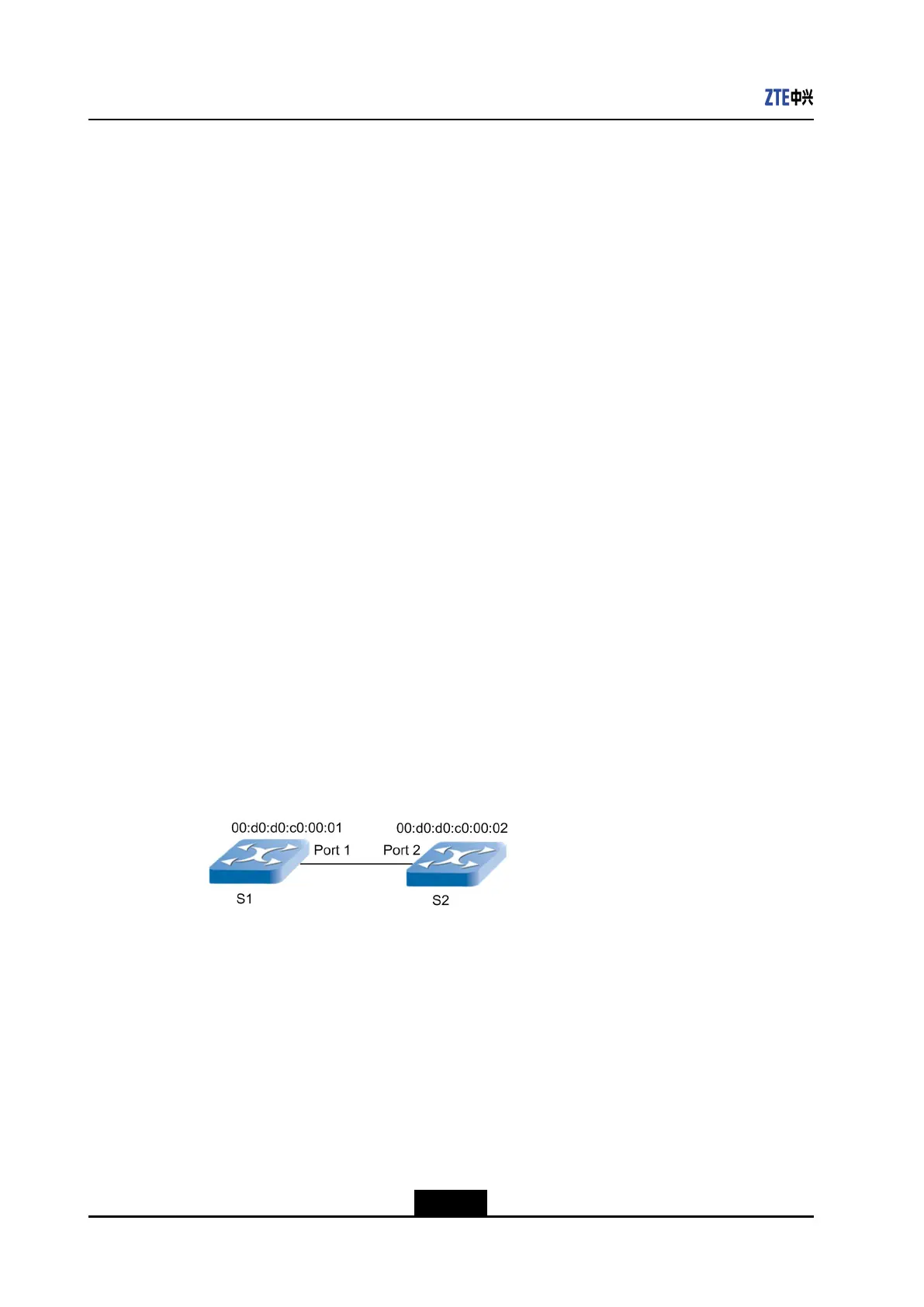

Figure5-58DMNetworkCongurationInstance
lCongurationProcedure
CongurationonS1:
zte(cfg)#cfmenable
zte(cfg)#createcfmmd-session1namezte_1level5
zte(cfg)#createcfmmd-session1ma-session1namezte_zte_1
zte(cfg)#cfmmd-session1ma-session1primary-vlan100
zte(cfg)#createcfmmd-session1ma-session1mep-session1mep-id1
directiondown
zte(cfg)#cfmmd-session1ma-session1mep-id1stateenable
zte(cfg)#cfmmd-session1ma-session1mep-id1ccm-sendenable
