Zte ZXR10 2900E Series - Figure 5-68 Example of the Primary Node Blocking the Secondary Port (Ring Status: UP); Figure 5-69 Example of the Primary Node Enabling the Secondary Port (Ring Status: DOWN)

Chapter5ServiceConguration

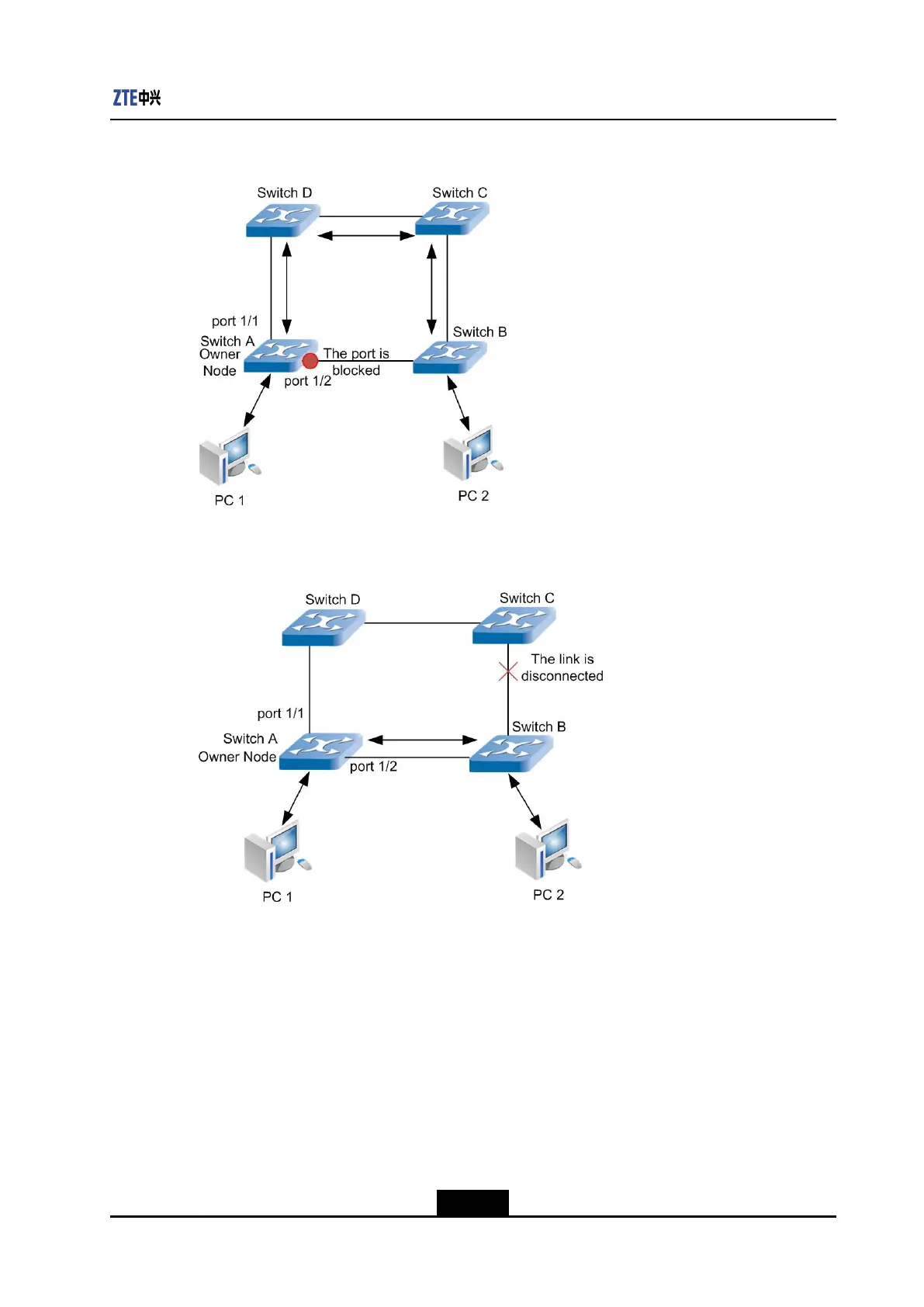

Figure5-68ExampleofthePrimaryNodeBlockingtheSecondaryPort(RingStatus:
UP)
Figure5-69ExampleofthePrimaryNodeEnablingtheSecondaryPort(Ringstatus:
DOWN)
Figure5-68showsthateachlinkisoperatingproperly,theringisinidlestatus,andthe
secondaryportoftheprimarynodeisblocked.TrafcpassesthroughswitchesCandD.
Figure5-69showsthatthelinkbetweenswitchesBandCisdisconnected.Thelinkstatus
changestoProtection,andERPSimmediatelyswitchestheRPLportoftheownernode
toforwardingstatus.Aftertheswitching,trafcdoesnotpassthroughswitchesCandD.
AfterthelinkbetweenswitchesCandDisrestored,theRPLportoftheownernodeis
blockedagain,andtheringstatuschangestopendingasshowninFigure5-68.
ConguringERPS
TocongureERPS,performthefollowingsteps.
